Specifications
Brand Name :
Ariza
Model Number :
SM11
Certification :
TUV CE
Place of Origin :
China
MOQ :
500 pcs
Price :
6.5$-6.8$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000 pcs/month
Delivery Time :
7-15 days
Packaging Details :
Qty:50pcs/ctn Size:39.5*34*32.5cm G.W:10kg/ctn
Product name :
Home Fire Smoke Detector System Alarm
Relative humidity :
≤ 95%RH, no condensation
Colour :
Pure white
Alarm Volume :
>85 dB(A) at 3m
Battery :
Alkaline zinc battery
Low Battery :
2.6 ± 0.1 V
Capacity :
Up to 40m²
Temperature :
0℃ ~40℃
Comply to Standard EN14604 :
2005/AC:2008
Certificate :
CE TUV
Description

Pure White TUV CE Home Fire Smoke Detector System Smoke Alarm For Home Fire Protection

Products Description

Accurate response: The use of enhanced photoelectric sensors can quickly and accurately respond to all fire situations, with one alarm; provide smoke or fire warnings as early as possible, while minimizing false alarms


Self-activation: When it is installed in the mounting bracket, this alarm will be automatically activated; the TEST/SILENCE button allows you to temporarily silence the annoying alarm, unless the device is in alarm mode, otherwise the silent mode will not be activated


Auto-check function: continuous self-checking, reminding the alarm if there is a fault or the battery is low; the 85 dB alarm and LED indicator will remind you of the working status of the alarm


Convenient installation: using the included mounting brackets, screws and anchors, it can be easily installed on any wall or ceiling; wireless connection installation


Quality Assurance: Pass TUV certification and meet CE safety standards; 2-year warranty and lifetime customer support


Attention


1. Please test it once a month to ensure that the smoke alarm works properly
2. Please clean the dust on the alarm every 6 months to prevent false alarming caused by clogged smoke alarms

Technological Parameters

Product name Pure White TUV CE Home Fire Smoke Detector System Smoke Alarm For Home Fire Protection
Relative humidity ≤ 95%RH, no condensation
Colour Pure white
Alarm Volume >85 DB at 3m
Battery Alkaline zinc battery
Low Battery 2.6 ± 0.1 V
Capacity Up to 40m²
Temperature 0℃ ~40℃
Comply to Standard EN14604 2005/AC:2008
Certificate CE TUV

Feature

85 decibel alarm: 85 decibel alarm noise level at 3 meters to remind your whole family and help you prepare for an emergency.

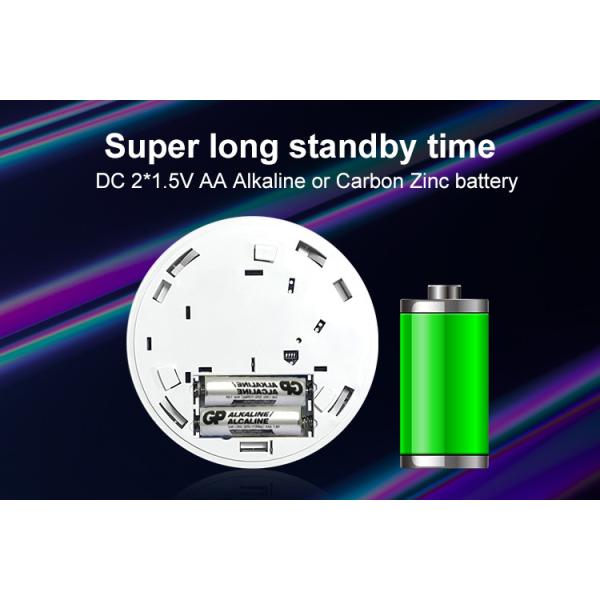

3-year battery life: 3-year alkaline zinc battery(Replaceable battery), no need to replace the battery frequently or worry about power failure, saving time and effort.


Silent mode: During the unit alarm period, you can press the test button, and the unit will pause the alarm for about 10 minutes. The red LED flashes once every 8 seconds, indicating that the smoke alarm has successfully entered the silent mode.


LED indicator: only red, the indicator responds differently in different states

  • Normal state: The red LED flashes every 60 seconds.
  • Test status: The red LED flashes once per second.
  • Silent/silent mode: The red LED flashes once every 8 seconds.
  • Low battery status: The red LED flashes once every 60 seconds and beeps once every 60 seconds.
  • Failure status: The alarm beeps every 40 seconds.

Pure White TUV CE Home Fire Smoke Detector System Smoke Alarm For Home Fire Protection

Pure White TUV CE Home Fire Smoke Detector System Smoke Alarm For Home Fire Protection

Where to install

1. At first you should install an alarm in the bedroom and walkway. If there are several bedrooms in the house, please install an alarm in every bedroom.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and burning things will spread horizontally after rising to the ceiling, so install the alarm in middle of the ceiling.
4. If the alarm can not be installed in the middle of the ceiling, install it keeping 300mm away from the corners .
5. If the alarm is installed in the wall, it should keep 100mm away from the ceiling.
6. If the length of the room or the hall is beyond 30 foot, you need to install several alarms there.
7. When the wall or ceiling is slanting, the alarm needs to be installed minimum 500mm away from the highest wall or ceiling point in the room.

Pure White TUV CE Home Fire Smoke Detector System Smoke Alarm For Home Fire Protection

Locations to Avoid


1. High-humidity areas such as kitchens, and bathrooms;
2. Next to air outlets, fans and central heating;
3. Dusty, dirty areas or areas with insects;
4. High-temperature and easily polluted places;
5. Places with difficult access, making it difficult to operate the test function;
6. Within 1.5m from lamps;
7. Next to doors or windows;
8. In the top of rooms with sloping roofs, the corner of the room or other dead-air spaces.

Warranty Information


Purchase each new smoke alarm device to be free from defects in material and workmanship under normal use and service for a period of 2 years from the date of purchase. During the specified warranty period, we will repair or replace, at its discretion any defective Smoke Alarms that are returned to the retailer. Please include your name, address and phone number along with a brief description of what is wrong with the unit. Damage from neglect, abuse or failure to adhere to any of the enclosed instructions will result in termination of the warranty, and the unit will not be replaced or repaired.This warranty shall not apply to the alarm if it has been damaged, modified, abused or altered after the date of purchase or if it fails to operate due to improper maintenance. The Manufacturer shall have no liability for any personal injury, property damage or any special, incidental, contingent or consequential damage of any kind resulting from gas leakage, smoke, fire or explosion.

Packing List


1 × Photoelectric smoke alarm
1 × Mounting bracket
1 × Screw Kit
1 × User manual

FAQ


Q:How about the quality of Smoke Alarm?
A :We produce every product with good quality materials and fully test three times before shippment. What is more, our quality areapproved by CE RoHS SGS & FCC, IOS9001, BSCI.

Q: Can i have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: What is the lead time?
A: Sample needs 1 working days, mass production needs 5-15 working days depends on order quantity.

Q: Do you offer OEM service, like make our own package and logo printing?
A: Yes, we support OEM service, including customizing boxes, manual with your language and printing logo on the product etc.

Q: Can I put order with PayPal for a fast shipment?
A: Sure, we support both alibaba online orders and Paypal, T/T, Western Union offline orders. Please contact us for details.

Q: How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL(3-5days), UPS(4-6days), Fedex(4-6days), TNT(4-6days), Air(7-10days), or by sea(25-30days)at your request.
