Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Specifications
Brand Name :
Ariza
Model Number :
SM11
Certification :
EN14604:2005/AC:2008
Place of Origin :
China
MOQ :
500pcs
Price :
6.5$-7$
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
30000pcs/month
Delivery Time :
7-15days
Packaging Details :
Qty 50pcs/carton Size:39.5x34x32.5cm G.W:10kg/carton
Product name :
Photoelectric Smoke Detector Sensor Fire Alarm
Smoke sensor :
Photoelectric
Battery :
3-year alkaline zinc battery
Operation Current :
<10uA (standby); <70mA (alarm)
Alarm Volume :
>85 dB(A) at 3 meters
Alarm Sensitivity :
0.09 - 0.17 dB/m
Silence Time :
Approx. 10 minutes
Wi-Fi connectivity :
TUYA WIFI APP Control, 802.11 b/g/n
Material :
ABS
Description

Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm

The battery operated WiFi smoke alarm SM11 is designed to wake the household and provide precious time to escape, powered by Tuya or Smart Life App anywhere and anytime.

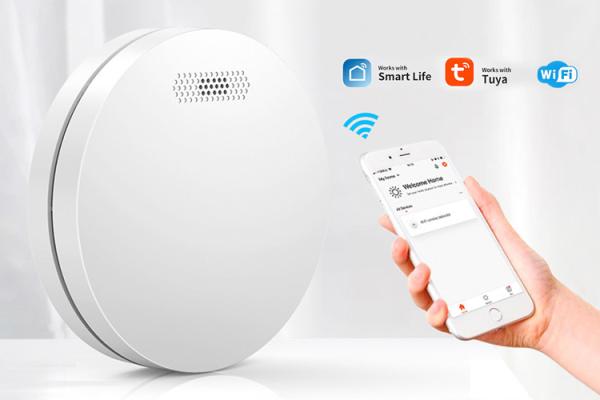

1 Tuya or Smart Life App Control WIFI Smoke Detector
2 Rapid warning & Fast notification of Smoke & Fire in a single alarm

3 Battery (included or excluded to be choose) 1.5V AA*2
4 Alarm Display with sound and light Effects

5 Extra loud alarm>85dB
6 Comply with EN14604

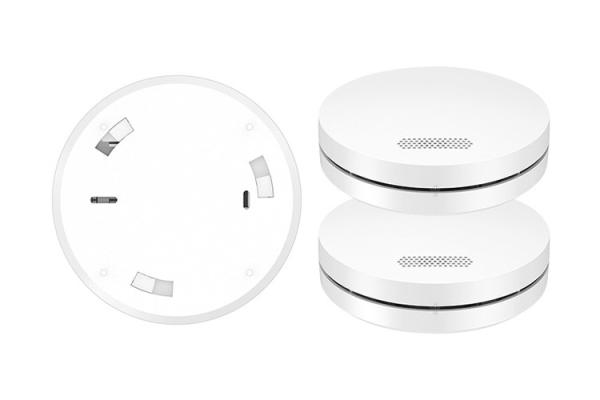

7 Easy to install,celling or wall mounting,no need for wiring.
8 Suitable for landing, hallway, bedrooms, living rooms and dining room etc

Specifications

Product name Photoelectric Smoke Detector Sensor Fire Alarm
Audible alarm
≥85 dB at 3m
Capacity
Up to 40m²
Hush Time
Approx. 10minutes
Temperature
0℃~40℃
Humidity
≤95%RH non-condense
Battery 3-year alkaline zinc battery
Operation Current <10uA (standby); <70mA (alarm)
Alarm Sensitivity 0.09 - 0.17 dB/m
Silence Time Approx. 10 minutes

Test your Alarm


Test the unit to ensure proper operation by pressing the cover,
the alarm will sound if the unit are working well. If no sounds,
you can refer to “Trouble shooting” section for solution

Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
LED Indicators
1. Normal status: Red LED Flashes once every 60 seconds.
2. Test status: Red LED flashes once every second.
3. Hush/Silence mode: Red LED flashes once every 8 seconds.
4. Low Battery status: Red LED flashes once every 60 seconds and 1 beep every 60 seconds.
5. Fault status: the alarm will deliver beeps every 40 seconds.
Silence Mode

During the unit is alarming, you can push the test button, it will be paused the unit alarming for approx 10 minutes. The red LED will flash once every 8 seconds, it indicates the smoke alarm device is running into the silence mode.The silence feature is to be used only when a known alarm
condition, such as smoke from cooking activates the alarm.The smoke alarm device will automatically reset after approximately 10 minutes, if after this period, particles of combustion are still present, the alarm will sound again.
Ultra Thin Standalone Photoelectric Smoke Detector Sensor Fire Alarm
FAQ

Q: How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
A: For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.


Q: How about the quality of the personal alarm ?

A:We produce every product with good quality materials and fully test three times before shippment. What is more, our quality

areapproved by CE RoHS SGS & FCC, IOS9001, BSCI.

Q: Can i have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q:What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

Q: How do you ship the goods and how long does it take arrive?

A:We usually ship by DHL(3-5days), UPS(4-6days), Fedex(4-6days), TNT(4-6days), Air(7-10days), or by sea(25-30days)at your request.
