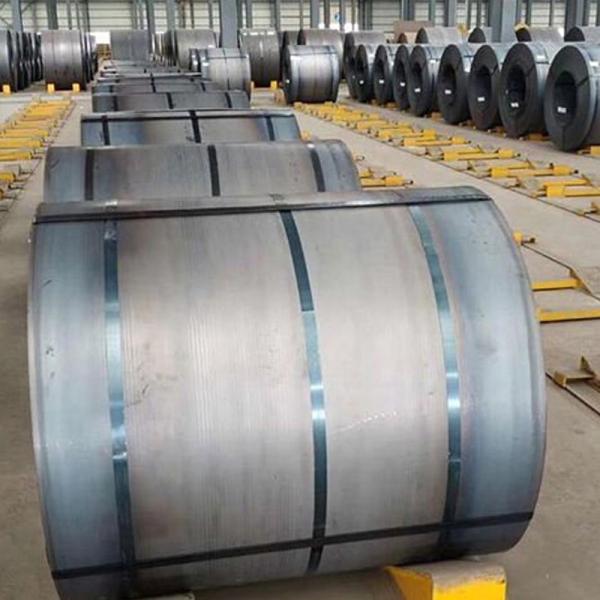

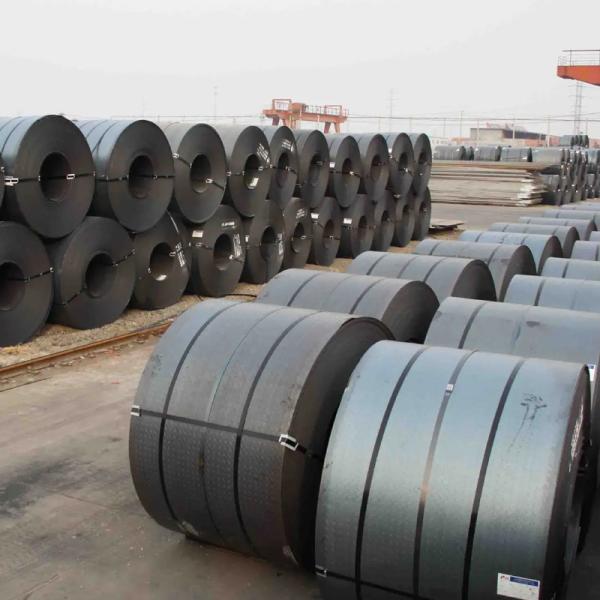

20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards
20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards
20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards
20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards
20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards
20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards
Specifications
Brand Name :
hyx
Model Number :
20(JIS s20c)
Certification :
CE ISO CNAS CQC
Place of Origin :
China
MOQ :
1Ton
Price :
800$-1500$
Payment Terms :
T/T,L/C
Supply Ability :
30000Tons/Month
Delivery Time :
7-15days
Packaging Details :
Standard package
Technique :
Hot Rolled
Width :
1000-3000mm
Thickness :
2-300mm
Length :
1000-12000mm
Specification :
2-300mm*1000-3000mm*1000-12000mm
Application :
Ship Plate, Boiler Plate, Container Plate, Flange Plate
Description

Characteristics of 20-brand steel

20 steel is a high-grade unalloyed steel used in metal structures and components operating in temperatures of -40°С to +450°С. Hot-rolled and forged long products made from 20 steel conform to the DSTU 7809 and GOST 1050 standards.

Classification: High-grade structural carbon steel.

Products: Steel Sheets, long product.

20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards 20(JIS s20c) Hot rolled Hot Rolled Coil steel 20 steel conform to the DSTU 7809 and GOST 1050 standards

Chemical composition of 20 steel, according DSTU 7809%

С

 Si Mn P S Cr Cu Ni

0.17-0.24
0.17-0.37
0.35-0.65
≤0.035
≤0.040
≤0.25
 ≤0.30 ≤0.30

Mechanical properties of 20 steel after normalization

Minimum yield strength, N/mm2, not less Ultimate tensile strength, N/mm2, not less Minimum elongation ratio, %, not less Contraction ratio, %, not less
245 410 25 55

Analogues to steel 20

US 1020, 1023, 1024, G10200, G10230, H10200, M1020, M1023
Japan S20C, S20CK, S22C, STB410, STKM12A, STKM12A-S, STKM13B, STKM13B-W
EU 1.1151, 2C22, C20E2C, C22, C22E
China 20, 20G, 20R, 20Z
Sweden 1450
Australia 1020, M1020
Switzerland Ck22
South Korea SM20C, SM20CK, SM22C

Application

20 steel is used in construction; machine-building; boiler and tank production; and heating elements of various specifications. High-grade unalloyed structural 20 steel in the form of flat and rolled products is used in preparing parts for weld-fabricated structures, pipelines, accumulators, bearing inserts, slings and other products. Thermo-chemical treatment (cementation, nitriding, nitrocarburising etc.) gives the axles, gears, worm screws, friction discs, shafts, spindles, bolts, cogs, pins and other steel components a strong surface hardness and durability, despite a low core strength.

Welding

Any type of welding is applicable, except for components that have been thermo-chemically treated. The standard welding methods are manual-arc, automatic-arc, automatic-arc submerged gas-protected and butt-resistance welding.
