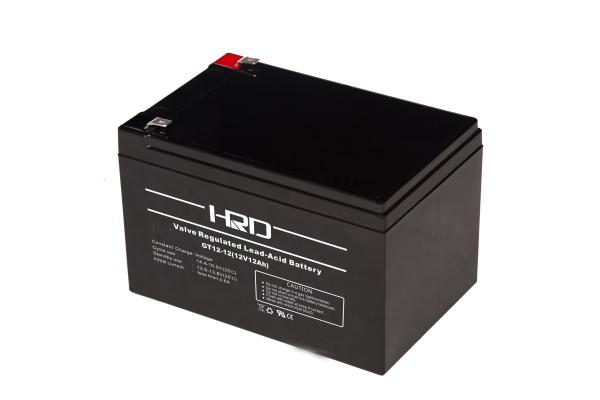

ABS Material Uninterruptible Power Supply With Silver - Coated Copper Terminals
ABS Material Uninterruptible Power Supply With Silver - Coated Copper Terminals
Specifications
Place of Origin :
Shenzhen China
Brand Name :
HRD
Certification :
ISO/CE
Model Number :
7AH to 200AH
MOQ :
1000pcs
Price :
7USD/PCS
Packaging Details :
standard for export
Delivery Time :
3 weeks after down payment
Payment Terms :
TT or LC at sight
Supply Ability :
30000pcs/month
brand :
HRD
model :
7AH to 200AH
color :
black
name :
Battery for UPS back
keyword :
uninterruptible power supply
feature :
Silver-coated copper terminals
Description

Thre are usually 2 types battery for UPS battery , AGM and GEL .

AGM batteries indicate Valve Regulated Lead Acid Batteries with the following features: Maintenance-free, no water adding required; sealed valve-regulated, spill proof and leak proof; using unilateralism exhaust (safe vent valve) design on the battery cover, when the battery internal pressure have been up to the specifically value, the safe vent valve will open automatically, and will close after the pressure has been discharged, which can prevent the air to enter into battery.

General Featuress

  1. Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improvethe electric conductivity
  2. Thin plate technology, special grid design, unique paste formula and plate curing process optimize high rate performance
  3. High quality AGM separators with less electrical resistance improve high current discharging properties
  4. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)

Typical Applications

1.UPS (High rate) 2.High power backup supply 3.Emergency power supply
4.Starting system 5.Power tools 6.Emergency lighting 7.Electric starting

Curve Picture

ABS Material Uninterruptible Power Supply With Silver - Coated Copper Terminals

Specifications

Model Nominal Rated Capacity(AH) Approx Dimension Approx
Weight		 Terminal type
Voltage 15min (W/cell) 10HR 5HR 1HR Length Width Height Total Height
(V) 1.60 1.80 1.75 1.60 mm in. mm in. mm in. mm in. kg lbs
　 V/cell V/cell V/cell V/cell
LPX12-2.2 12 7.65 2.2 1.93 1.72 178 7.01 35 1.38 60 2.36 66 2.6 0.96 2.12 T1
LPX12-3.2 12 11.8 3.2 2.91 2.47 134 5.28 67 2.64 60.5 2.38 66.5 2.62 1.35 2.98 T1/T2
LPX12-5.4 12 20.4 5.4 4.85 4.39 90 3.54 70 2.76 101 3.98 107 4.21 1.74 3.84 T1/T2
LPX12-6.0 12 22.3 6 5.4 4.54 151 5.94 65 2.56 93.5 3.19 99 3.9 2.18 4.81 T1/T2
LPX12-6.5 12 25.3 6.5 5.65 4.52 151 5.94 51 2.01 93 3.66 98 3.86 1.9 4.19 T1/T2
LPX12-7.0 12 28.4 7 6.4 5.91 151 5.94 65 2.56 93.5 3.19 99 3.9 2.5 5.51 T1/T2
LPX12-7.6 12 32.2 7.6 6.95 6.28 151 5.94 65 2.56 93.5 3.19 99 3.9 2.45 5.4 T1/T2
LPX12-12 12 49.8 12 10.5 8.77 151 5.94 98 3.86 95 3.74 101 3.98 4.2 9.26 T1/T2
LPX12-17 12 72.5 17 15.7 14.2 181.5 7.15 77 3.03 167.5 6.59 167.5 6.59 5.78 12.7 T3
LPX12-18 12 78.4 18 16.2 14.8 181.5 7.15 77 3.03 167.5 6.59 167.5 6.59 6 13.2 T3/T12
LPX12-20 12 82.7 20 18.5 16.7 181.5 7.15 77 3.03 166.5 6.56 166.5 6.56 6.9 15.2 12V20N(T12)
LPX12-24 12 99.8 24 21.8 19.7 166.5 6.56 175 6.89 125 4.92 125 4.92 8.8 19.4 T3/T12
LPX12-35 12 137.5 33.3 30.7 24.7 195 7.68 130 5.12 164 6.46 180 7.09 10.5 23.2 T10
LPX12-38 12 126.3 36.6 32.8 25.3 197 7.76 165 6.5 170 6.69 170 6.69 13.2 29.1 T6/T10
LPX12-65 12 230.4 65 55 45.2 348 13.7 167 6.57 178 7.01 178 7.01 21.3 47 T6
LPX12-72 12 237.7 72 60 46.4 259 10.2 168 6.61 208 8.19 214 8.43 22.3 49.2 T6/T9
LPX12-100 12 356.1 100 89 78 330 13 173 6.81 212 8.35 220 8.66 30.4 67 T11
LPX12-120 12 483.8 120 107.2 94.6 410 16.1 177 6.97 225 8.86 225 8.86 37.6 82.9 T11
LPX12-150 12 487.5 150 131 101.3 485 19.1 170 6.69 240 9.45 240 9.45 43.5 95.9 T11
LPX12-200 12 675.8 200 173.5 149.6 522 20.6 240 9.45 218 8.58 224 8.82 62.5 137.8 T11
LPX12-250 12 783.3 250.4 217 193.2 522 20.6 268 10.6 220 8.66 226 8.9 73 161 T11
LPX6-100 6 356.1 100 89 78 195 7.68 170 6.69 206.5 8.13 212.5 8.37 15.6 34.4 T6
LPX6-150 6 487.5 150 131 101.3 260 10.2 180 7.09 247 9.72 253 9.96 21.2 46.7 T7
LPX6-200 6 675.8 200 173.5 149.6 322 12.7 178 7.01 228 8.98 234 9.21 30.5 67.3 T11

GEL TYPE:

  1. Long time discharge
  2. Suitable for space and storage electric power use
  3. Special plate design, long cycle lifetime
  4. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
  5. Using special separator to boost up the battery performance inside
  6. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
  7. High gas recombined reaction efficiency
  8. Little water losing, no electrolyte stratification phenomenon
  9. Long storage time
  10. Good deep discharge resilience performance
  11. Using gas silicon dioxide, small granule degree, bigger than surface area

Typical Applications

1) Cycle applications
Golf trolleys Garden equipments Portable equipments Wheel chairs Solar and wind mill units
Medical equipments Flash units also for mining (head flash) Portable video/radio Traffic lights Street signs Boats or buoys Cottage camping SOS pillars Toys and hobby applications
Portable equipments for communication, testing, distance measuring …etc. Pump system
2) Stand By applications
Telecommunication backup Power plants Burglar alarms Medical equipments (stationary and portable i.e. X- ray) Computer back-up (high power) Communication systems Fire alarm systems Transmitter systems
Cash register systems Emergency lights signal systems Telephone systems Clocks systems Uninterrupted
power supplies Elevators emergency power supply (skyscrapers) Solar applications Mobile stations Airport / runway emergency illumination Emergency power supply for hospitals Radar and satellite stations

Curve Picture

ABS Material Uninterruptible Power Supply With Silver - Coated Copper Terminals
ABS Material Uninterruptible Power Supply With Silver - Coated Copper Terminals

Specifications

Model Nominal Rated Capacity(AH) Approx Dimension Approx
Weight		 Terminal type
Voltage 20HR 10HR 5HR 1HR Length Width Height Total Height
(V) 1.80 1.80 1.75 1.60 mm in. mm in. mm in. mm in. kg lbs
　 V/cell V/cell V/cell V/cell
LPG12-17 12 17 15.5 13.6 9.35 181.5 7.15 77 3.03 168 6.59 168 6.59 5.8 12.8 T12
LPG12-24 12 24 22.3 19.2 13.2 175 6.89 166.5 6.56 125 4.92 125 4.92 8.5 18.7 T12
LPG12-26 12 26 24.2 20.8 14.3 175 6.89 166.5 6.56 125 4.92 125 4.92 8.9 19.6 T12
LPG12-31 12 30 27.4 24 16.5 195 7.68 130 5.12 164 6.46 180 7.09 10.65 23.5 T5
LPG12-38 12 38 35.3 30.4 20.9 197 7.76 165 6.5 170 6.69 170 6.69 13.7 30.2 T6
LPG12-45 12 45 40 36 24.7 257 10.12 132 5.2 200 7.87 200 7.87 15.5 34.2 T6
LPG12-50 12 50 46.5 40 27.5 229 9.02 138 5.43 205 8.07 211 8.31 16.7 36.8 T6
LPG12-60 12 60 55.8 48 33 325 12.8 167 6.57 174 6.85 174 6.85 21.8 48.1 T6
LPG12-65 12 65 60.5 52 35.8 325 12.8 167 6.57 178 7.01 178 7.01 23.5 51.8 T6
LPG12-70H 12 70 65.1 56 38.5 259 10.2 168 6.61 208 8.19 214 8.43 23 50.7 T6
LPG12-85 12 85 79.1 68 46.8 305 12.01 168 6.61 207 8.15 213 8.39 28 61.7 T6
LPG12-100 12 96 90 80 55 330 12.99 173 6.81 212 8.35 220 8.66 31 68.4 T11
LPG12-110 12 110 102.3 88 60.5 410 16.14 177 6.97 225 8.86 225 8.86 36 79.4 T11
LPG12-125 12 130 120 104 71.5 344 13.54 171 6.73 274 10.79 280 11.02 47 103.6 T11
LPG12-140 12 135 125 108 74.3 485 19.09 170 6.69 240 9.45 240 9.45 44.2 97.5 T11
LPG12-200 12 200 185 160 110 522 20.55 240 9.45 218 8.58 224 8.81 62.9 138.7 T11
LPG6-200 6 200 185 160 110 322 12.68 178 7.01 228 8.98 234 9.21 31.5 69.5 T11
LPG2-65 2 65 60 51.6 35.2 170 6.69 72 2.83 205 8.07 212 8.35 5.2 11.5 T6
LPG2-75 2 80 75 64.5 44 170 6.69 72 2.83 205 8.07 212 8.35 5.6 12.4 T6
LPG2-100 2 96 90 77.4 52.8 170 6.69 72 2.83 205 8.07 212 8.35 6.2 13.7 T6
LPG2-130 2 128 120 103.2 70.4 170 6.69 98 3.86 205 8.07 212 8.35 8 17.6 T7
LPG2-150 2 144 135 116.1 79.2 170 6.69 98 3.86 205 8.07 212 8.35 8.8 19.4 T7
LPG2-200 2 213.3 200 172 117.3 170 6.69 110 4.33 328 12.91 350 13.78 13.5 29.8 T11
LPG2-300 2 320 300 258 176 170 6.69 150 5.91 328 12.91 350 13.78 19 41.9 T11
LPG2-400 2 426.7 400 344 234.7 210 8.27 175 6.89 330 12.99 350 13.78 28 61.7 T11
