Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring
Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring
Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring
Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring
Specifications
Place of Origin :
Shenzhen China
Brand Name :
HRD/OEM/ODM
Certification :
ISO9001:2008,CE
Model Number :
NETManager HRD520/530
MOQ :
10
Price :
50-70USD/PCS;
Packaging Details :
1pcs/carton
Delivery Time :
7days
Payment Terms :
TT
Supply Ability :
10000pcs/month
Warranty :
2 years
model :
NETManager HRD520/530
brand :
HRD/OEM/ODM
certificate :
ISO9001:2008,CE
color :
green
item :
SNMP Card
Description

Netmanager HRD520 /530

Basic Web-based SNMP Card for UPS

Brief Introduction:

NETManager HRD520 /530 is a basic web-based SNMP card for UPS monitor and control via internet or LAN. Simple and friendly operation interface can satisfy users’ basic monitoring demands for UPS.

Note:1.First time to use it, please make sure internet or LAN well connected to the SNMP card’s net interface.

2.T he initial default IP address is 192.168.1.191. Account:admin Code:admin.

This product supports auto obtaining IP address. With SNMP-Link software, you can search and find the address under FINDER menu of the software.

3. This SNMP card can test and manage the UPS with SNMP-Link software

4.If forget the code, press the “default “button to reset the code to be “admin”.

Functions:

 Remotely monitor the status of UPS, including voltage, current, bypass, utility power, etc;

 Support network monitoring based on WEB browser;

 Equip with HRD SNMP-Link software to achieve centralized monitoring and unified

management;

 Equip with HRD SNMP-Link software to achieve shutdown protection for client-side;

 Support different warning such AC failure, battery low, UPS failure and send email.

Support SMS warning, and telephone or mobile dialing (GSM module shall be purchased additionally)

Support most of the UPS brand’s communication protocol, such as,Powerware , Santak, Riello,Emerson..etc…

Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring

Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring

Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring


Specification:

Model

NETManager HRD520

NETManager HRD530

Protocol Support

SNMP

connection design

internal , cable connection

Internal gold finger

Network Support

RJ45 10/100BaseT

Supported MIB

RFC1213, RFC1628, Voltronic MIB

Supported Software

SNMP-Link

Supported OS

Windows family, Liunx, MAC, and Solaris

Power Input

12VDC

Power Consumption

2 watt (max.)

Operating Temperature

0 ~ 40°C

Operating Humidity

0% ~ 95%

PHYSICAL

Dimension, D x W x H (mm)

23 x 47 x 15

68*60*15

Net Weight (g)

34.7 g

58.0

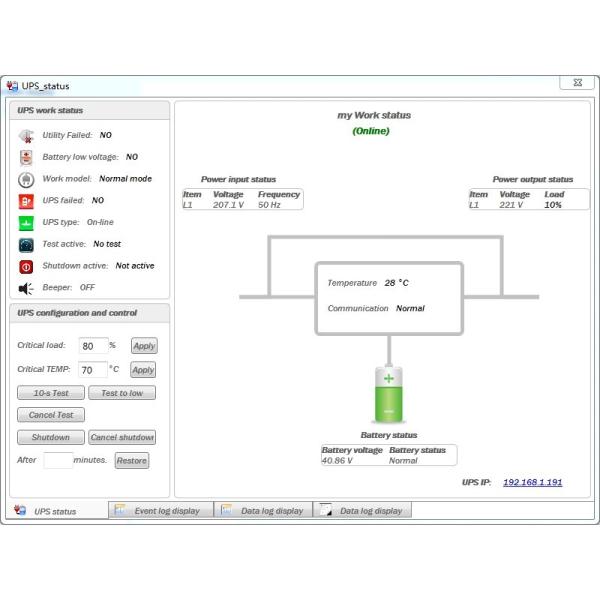

Monitoring Interface:

Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring
