24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
24 48 110 125 220VDC Industrial Charger With Input Isolation Transformer
Specifications
Brand Name :
HRD/OEM
Model Number :
R7000
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
1
Price :
5000USD
Delivery Time :
5-6weeks after deposit
Packaging Details :
standard for export
Color :
Gray (Ral 7035
input :
220/230 single phase or 3phase 380/400/480Vac
Input with TX :
Input isolation transformer
input range :
220/230+15%;3phase 380/400/480Vac+/-15%
Input Fz :
45-66Hz
Ouput DCv :
24,48.60,110,125,110,220Vdc
IP degree :
IP21-IP43
Cable Entry :
bottom
Operation Temperature :
0-40centigrade
Capacity :
2.4kw to 220kW
Description

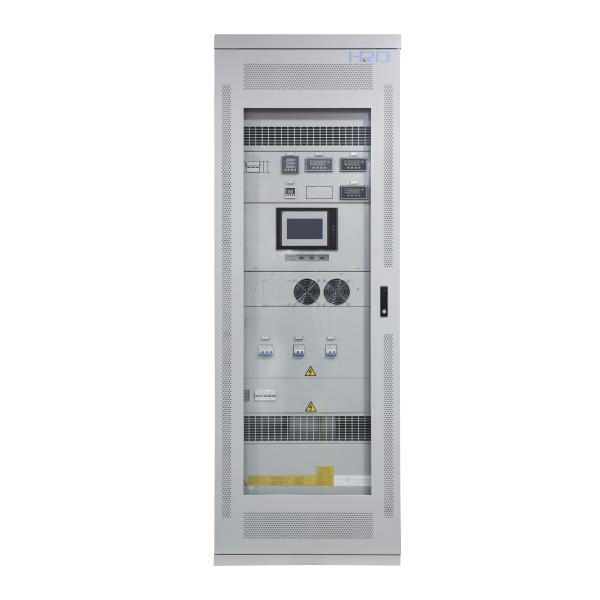

R7000 Series Industrial Charger & DC UPS, With Input Isolation Transformer, 24VDC,48VDC, 110VDC,125VDC,220VDC

Introduction:R7000 series 2.4kw to 500kW industrial rectifier is specially designed for harsh industrial application environment with high performance application requirements. It provides super high reliability, excellent performance and high quality DC power.
R7000 industrial rectifier is designed on thyristor technology, the rectifier can charge nickel cadmium battery , lead-acid battery etc. and supply DC load at the same time. It can also be used as independent DC power supply without battery.

Perfect Applications:
P e t r o l e u m , petrochemical, power plant, natural gas, electric power, marine, heavy industry, mining, transportation and other industries .

Features and benefits:

1)SCR rectifier with DSP control technology, overvoltage,undervoltage protection for reliable operation in all mains conditions

2)Input isolation transformer for AC- DC

3)High operating safety and reliability, even under difficultcircumstances over long periods of time

4) Adjustable manual and automatic charging mode for maximum flexibility on operation

5)Digital control panel and touch screen for meters, alarms,and history events for maximum flexibility on monitoring

6)Parallel operation for redundancy requirements

7) Support all charging mode for vented/sealed lead acid batteries and Ni- Cd batteries
8)More than 12,000 history records to position issues quickly and accurately
9) Front accessibility for easy maintenance

10)Battery charging temperature compensation
11) Cable voltage drop compensation
Technical specificaions:

Technicaldata:

Input

 Rated voltage 230Vac 1phase or 400Vac 3phase
Voltage range 230Vac+/-15% or 400Vac+/-15%
Frequency range 45-66Hz


Output

 Rated voltage 24,48,60,110,125,220Vdc
Operating Voltage

Floating:75%-125% of rated voltage at full load and rated voltage+/-10%

Equalizing:75%-125% of rated voltage at full load and rated supply voltage(0-10%)

Commissioning:75%-140% of rated voltage at half load and rated supply voltage(0-10%)
Static voltage regulation +/-0.5%
Ripple Voltage ≤1%
Charging characteristic IU( according to DIN41773)
System and Environmental Protection degree IP21(Optional to IP43)
Cable entry bottom
access front
Color RAL7035
Operation temperature 0-40 centigrade
Storage temperature -25-70centigrade
Noise <65dBA
Altitude <1000m(derating according to EN62040-3)
Cooling Forced Ventilation

Standard

 Safe IEC60146
EMC IEC61000-6-2 IEC61000-6-4
Performance IEC601146
Communication RS-232/485,Modbus Protocal







Rating

 Rated Voltage(Vdc) 24 48/60 110/125 220







Rated Current(A)

 25 25 25 25
50 50 50 50
75 75 75 75
100 100 100 100
150 150 150 150
200 200 200 200
300 300 300 300
400 400 400 400
500 500 500 500
600 600 600 600
800 800 800 800
1000 1000 1000 1000
2000 2000 2000 2000
3000 3000 3000 /
4000 4000 4000 /

Note: Customized type is acceptable.
