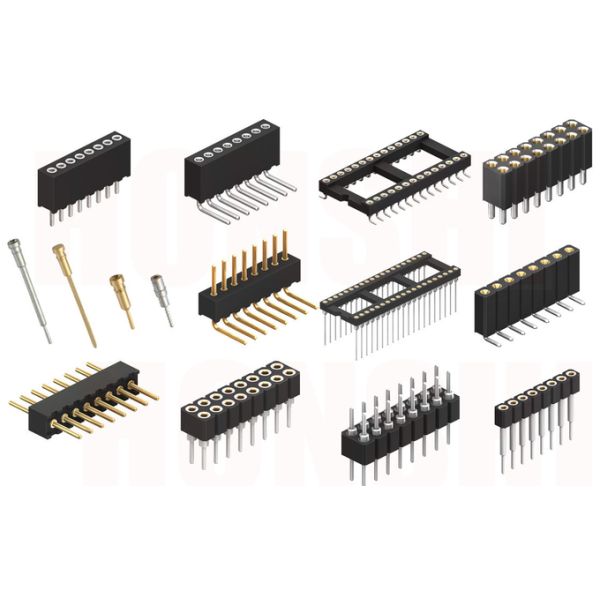

Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm
Specifications
Brand Name :
HONSHI
Model Number :
822X-XXXXXSXXXXX001
Certification :
ROHS/SGS/UL
Place of Origin :
China
MOQ :
100 pieces
Price :
$0.03 - $0.35/pieces
Payment Terms :
T/T,Paypal
Supply Ability :
800000kpcs
Delivery Time :
7-15 Day
Packaging Details :
Tray/Pe bag
Type :
DIN
Application :
PCB
Gender :
Female
Housing Material :
Copper
Product name :
Machined Female Header
Contact material :
Brass Gold Plated
Insulation Material :
PBT/PPS
Plated :
Gold Plated(1U")(can customized)
Certificate :
ISO9001/CE/ROHS/REACH/MSDS
Samples :
Avaliable
Color :
Black
Pin :
1 - 80 Pin
Rated Current :
3A AC
Pitch :
1.27/2.0/2.54mm
Description

1.27mm 2.0mm 2.54mm Machined Round Female Header Connector Dual Row PCB H2.8mm 7.4mm Straight Brass

Name Round Pin Header Connector
Current Rating 1.5/2.0/3.0AMP
Contact Resistance 10mΩ Max
Dielectric Strength Min 1000VRMS
Mechanical Life Min 500 cycles
Mating Pin ∅0.40 To ∅0.66mm or 0.50SQ
Forces Polished Steel Gauge ∅0.47mm
Insertion 200g Max/Pin Withdrawal:60g/pin
Operation Temperature -40℃ to +105℃
Sleeve Brass CuZn36Pb3(C36000) Sn over Ni
Contact Clip(4 Finger) BeCu(C17200) Au Sn over Ni
Insulator Material PPS(UL94V-0)

Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mmDual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mm

Dual Row PCB Round Pin Header Connector Machined Female Header 1.27mm 2.0mm 2.54mmDrawing:8223-228XXSXX074X01.pdf

Product name: Round Pin Connector

1. Female Pin Header features: the contact reliability, anti vibration, contact resistance

2. Product material: PPS, PBT or PA6T insulator part plastic insulator part fire rating: UL94V-0 contact: Phosphor bronze parts

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
