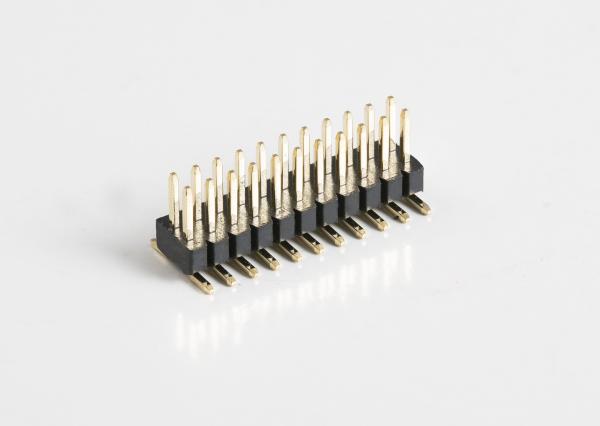

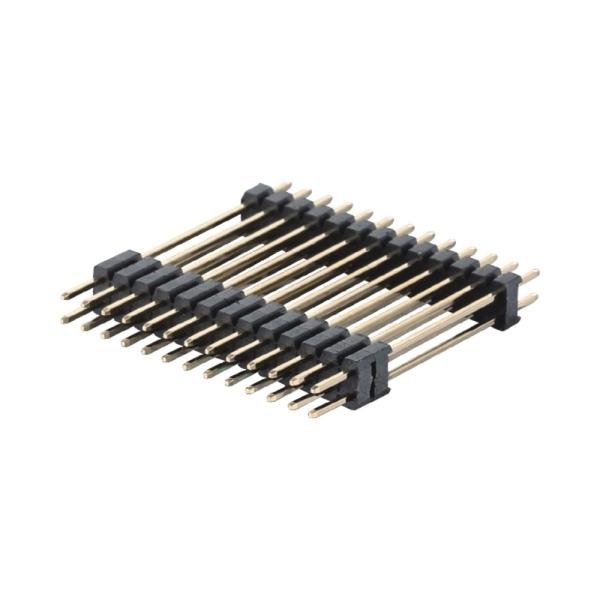

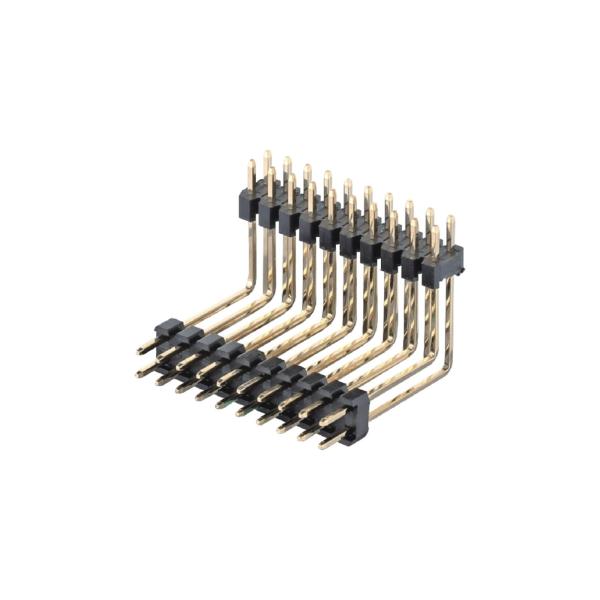

Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip
Specifications
Place of Origin :
China
Brand Name :
HONSHI
Model Number :
1525-22XXSXXXXXXNX01
MOQ :
100 pieces
Price :
$0.025 - $0.045/pieces
Certification :
ROHS/SGS/UL
Payment Terms :
T/T,Paypal
Supply Ability :
100000kpcs
Delivery Time :
7-15 Day
Packaging Details :
Tray/Tube/Reel
Type :
DIN
Application :
PCB
Gender :
Male
Product name :
Pin Header Connector
Contact Material :
Brass
Rated Current :
3AMP
Contact Resistance :
20mΩ
Plated :
Gold palted(1U")(can customized)
Packing :
Tube/Reel
Withstand Voltage :
1000V AC/Minute
Pitch :
1.27/2.0/2.54mm
Size :
Customs
Pin :
2 - 80 Pin
Description

Customs 2.54mm Pitch Pin Header Connector Dual Row 20pin 80pin Straight Dip

Product Name Pin Header Connector
Pitch 0.8/1.0/1.27/1.27X2.54/2.0/2.54/3.96/5.08mm
Positions 2P-100P
Current Rating 1A/2A/3A/5A/7A
Contact Resistance 20mΩ Max
Withstand Voltage 500V /1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass/Phosphor bronze
Contact Plating Au Or Sn over Ni
Insulator Material PBT/PA6T/PA9T/LCP ( UL94V-0 )

Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip

Custom 2.54mm Pitch Pin Header Connector Dual Row 20 Pin 80 Pin Straight Dip Drawing:1525-22XXSXXXXXXNX01.pdf

Item name: Pin Header Connector
1. The product precision and reliable performance.
2. 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm pitch pin header are featured products in our company.
3.material: its material is brass wire, phosphor copper wire, pure copper wire, the surface of Gold plating, nickel plating.
4. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Management Concept
Responsibility Innovation Integrity Win-Win;
Team Culture
Thanksgiving Valute Respects Team efforts;
Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;
Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
