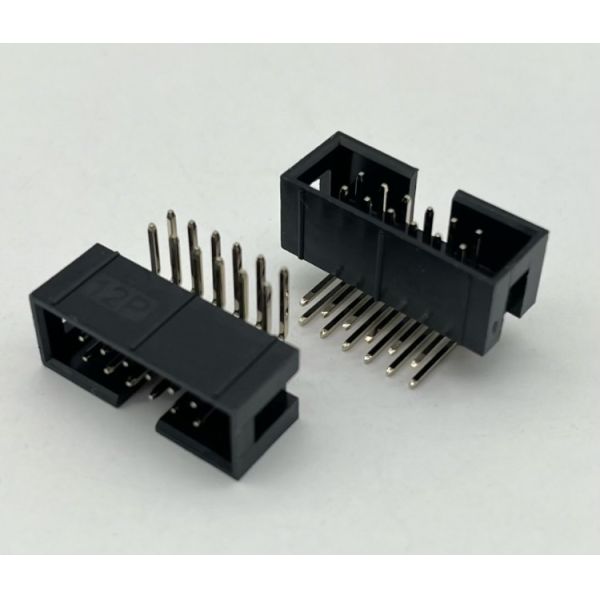

Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HONSHI
Model Number :
4813-88XXRXXXX01
MOQ :
100 pieces
Price :
$0.03 - $0.08/pieces
Certification :
ROHS/SGS/UL
Payment Terms :
T/T,Paypal
Supply Ability :
100000kpcs
Delivery Time :
10-15 Day
Packaging Details :
Tray/Tube
Type :
DIN
Application :
PCB
Gender :
Male
Housing Material :
Brass
Product name :
Box Header Connector
Contact Material :
Brass
Rated Current :
3AMP
Contact Resistance :
20mΩ
Plated :
Gold palted(1U")(can customized)
Packing :
Tube/Reel
Sample :
Support samples
Voltage rating :
40V AC
Withstand Voltage :
500V AC/Minute
Pitch :
1.27/2.0/2.54mm
Description

2.54mm Box Header Connector Right Angle DIP PCB DC3 12 Pins Headers 2x6p

Product Name Box Header Connector
Pitch 1.27/1.27X2.54/2.0/2.54mm
Positions 6P-100P
Current Rating 1A/2A/3A
Contact Resistance 20mΩ Max
Withstand Voltage 500V /1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣40℃ to +105℃
Contact Material Brass
Contact Plating Au Or Sn over Ni
Insulator Material PA6T/PA9T ( UL94V-0 )

Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm Pitch

Right Angle Box Header Connector DIP PCB DC3 12 Pins Headers 2.54mm PitchDrawing:4813-88XXRXXXXX01.pdf

Product name: Box Header Connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA6T/PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
