USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HONSHI
Model Number :
USB Series
Packaging Details :
Tray packing
Supply Ability :
1000000 Box/Boxes per Week
MOQ :
100 pieces
Price :
Negotiaiton
Certification :
ISO9001/ISO14001/CE/ROHS/REACH
Payment Terms :
T/T,Paypal
Delivery Time :
15~25Day
Application :
PCB
Gender :
Female
Product name :
USB Connector
Contact Material :
brass/phosphor bronze
Contact Resistance :
20mΩ
Plated :
Gold palted(1U")(can customized)
Packing :
Tube/Tray
Withstand Voltage :
1000V AC/Minute
Pin :
4 Pin
Color :
Black/Blue/White
Shell Material :
Copper Alloy
Description

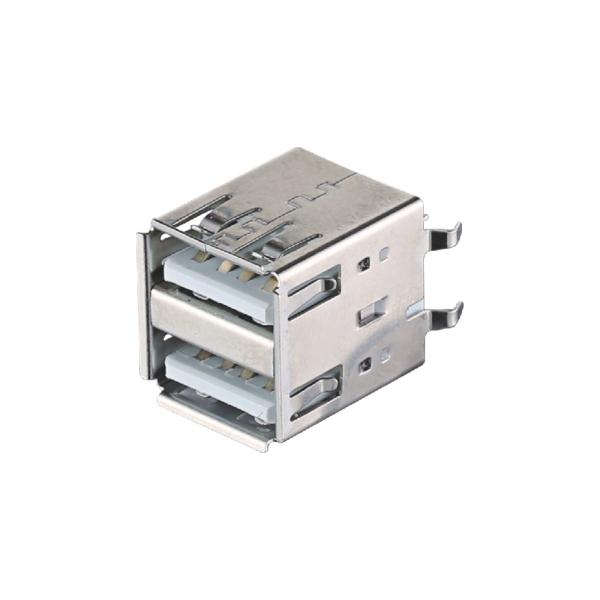

USB 2.0 /3.0 Jack A Type Male Plug Connector with Brass/Phosphor Bronze Contact Material

Product basic parameters
Model Number: USB Series Product Description: 2.0USB & 3.0USB Connector
Product attributes: Material:
Insertion force: 35N MAX Rubber core: PBT/LCP UL94V-0
Pulling force: 10N MIN.INITIAL 8-20N AFTER Terminal: Brass C2680 H65, nickel base, gold plated contact point 1U
Rated current: 1.5A
Rated current: 30V Shell: SPCC/C2680 full area nickel plated 80 U MIN
Durability: 3000CYCLES MIN
Voltage endurance: 500V AC MIN Package: 100pcs/tray
Contact impedance: 300M Ω MAX INITIAL;400MΩAX Samples Lead Time: Free samples,customized samples 5-10Working days
Insulation resistance: 10000M Ω MIN Application: PCB,AV equipment,medical equipment,military communication,aerospace,phone watch electronic etc.
Working temperature: -40 ° C to+70 ° C
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ .

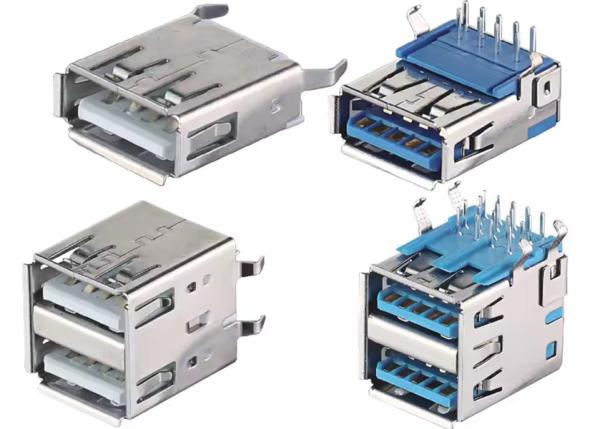

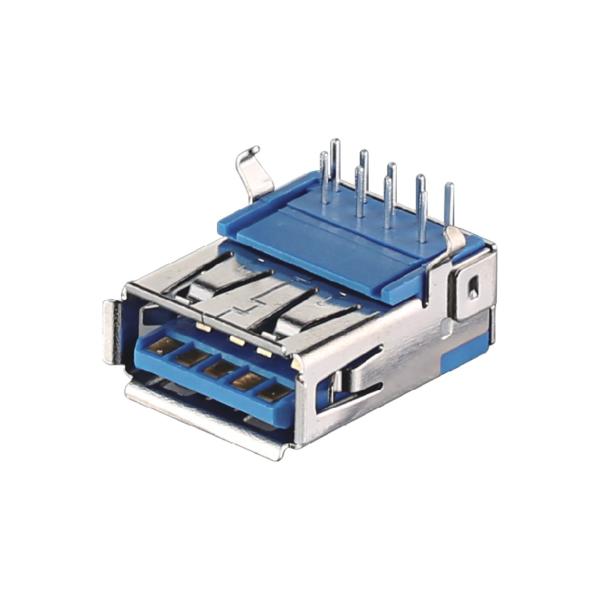

2.0/3.0 USB Connector

2.0 /3.0 USB connector is a universal serial bus connector that can connect two devices, such as a computer and external devices, charging devices, etc, The transmission speed is faster, much higher than the 1.0 USB connector.

USB 2.0 / 3.0 Jack A Type Male Plug Connector Brass / Phosphor Bronze Contact Material
