Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
Specifications
Brand Name :
HONSHI
Model Number :
A20XXXXXSHX01
Certification :
ISO9001/ISO14001/CE/ROHS/REACH
Place of Origin :
CHINA
MOQ :
100 pieces
Price :
Negotiates
Payment Terms :
T/T,Paypal
Supply Ability :
990000pcs
Delivery Time :
15~25Day
Packaging Details :
PE Bag,Tube,Reel Packaging
Specification: :
Double Ended Pogo Pin
Type :
Double Head Type
Pin Length :
6.5mm or can be custom
Material :
Brass(C3604,C6801)
Spring :
SUS304
Plated :
Gold palted(3U") can customized
Salt Spray Test :
72H
Applications :
PCB,power ,charging equipment
Sample :
Support samples with 1weeks
Description

Brass Pogo Pin With Double Head Length 6.5mm Double Ended Spring Loaded Pogo Pins

Specific material electrical parameters
Electrical Performance: Mechanical Performance:
Rated Current: 1.5AMP Spring force: 40g±20g or Customized
Contact Resistance: 50mΩ Max Work Stroke: Customized
Rated Voltage: DC 12V Maximum Working stroke: Customized
Operation Temperature: -40°c to +105°c Mechanical Life 100,000 cycles
Resistance To Solder Heat: 260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.


Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins

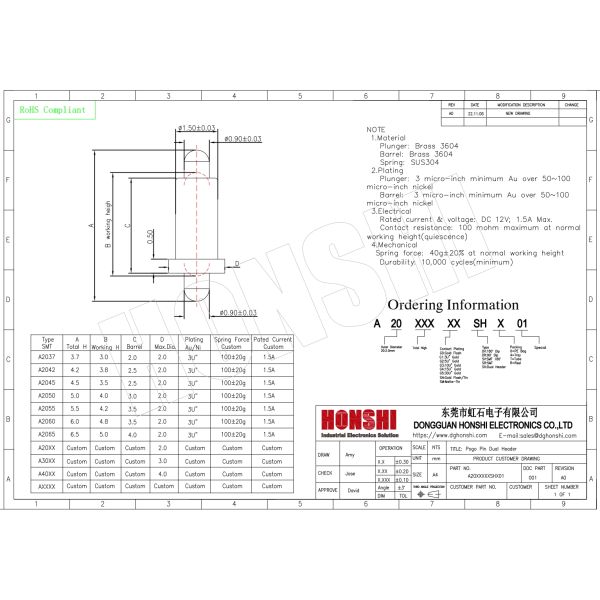

Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo PinsDrawing:A20XXXXXSHX01.pdf

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Double Head Brass Pogo Pin Length 6.5mm Double Ended Spring Loaded Pogo Pins
