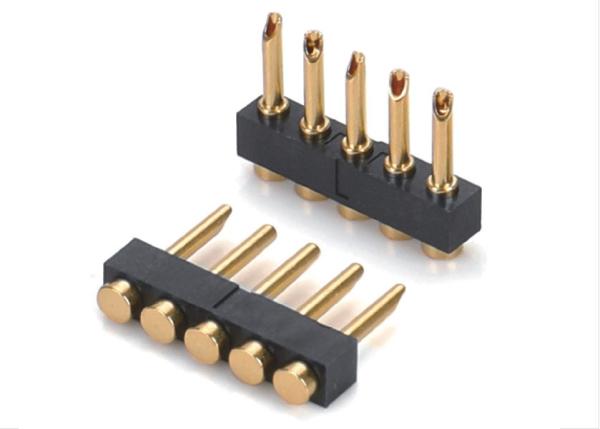

2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
Specifications
Brand Name :
HONSHI
Model Number :
A412505FXXSW090X01
Certification :
ISO9001/ISO14001/CE/ROHS/REACH
Place of Origin :
CHINA
MOQ :
100 pieces
Price :
$0.35 - $0.75/pieces
Payment Terms :
T/T,Paypal
Supply Ability :
990000pcs
Delivery Time :
15~25Day
Packaging Details :
PE Bag,Tube,Reel Packaging
Specification: :
Pogo Pin Connector
Model Number: :
A412505FXXSW090X01
Pitch: :
2.54mm
Positions: :
1x05P
Gender: :
Female
Type :
Solder Type
Material :
Plunger:Brass 3604 & Barrel:Brass 3604
Housing :
PA46 Black
Plating :
Gold palted(3U") or customized
Salt fog :
72H
Sample :
Support Samples
Description

Custom 2.54mm Pitch Pogo Pin Connector Solder Type 1x05P ,PE Bag Packing

Specific material electrical parameters
Electrical Performance: Mechanical Performance:
Rated Current: 1.0AMP Spring force:
Contact Resistance: 50mΩ Max Work Stroke:
Rated Voltage: DC 12V Maximum Working stroke:
Operation Temperature: -40°c to +105°c Mechanical Life 100,000 cycles
Resistance to solder heat: 260℃±5℃ 20s±2s
Material
Plunger: Brass 3604 Barrel: Brass 3604
Spring: SUS304 Housing: PA46 Black
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ

2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P

2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05PDrawing:A412505FXXSW090X01.pdf

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc.

Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-80A.

Pogo Pin connector spacing can be divided into: 1.27mm,2.0mm,2.5mm,2.54mm,3.0mm,4.0mm, plastic materials commonly used PA46.

2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P

2.54mm Pitch Pogo Pin Connector Solder Type Female Pogo Pin 1x05P
