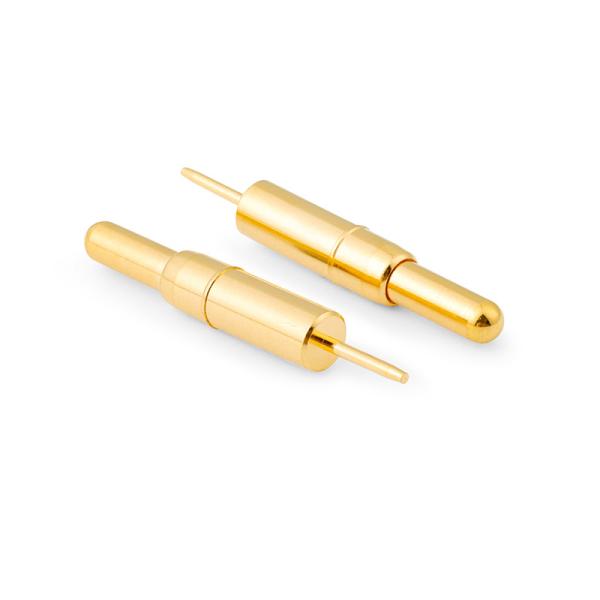

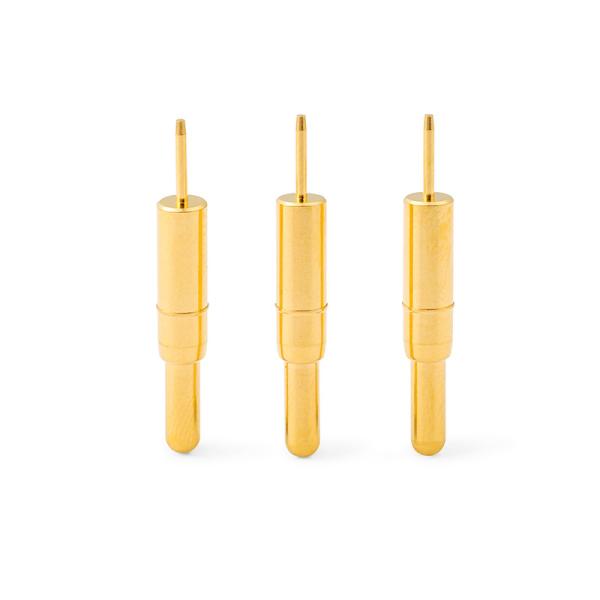

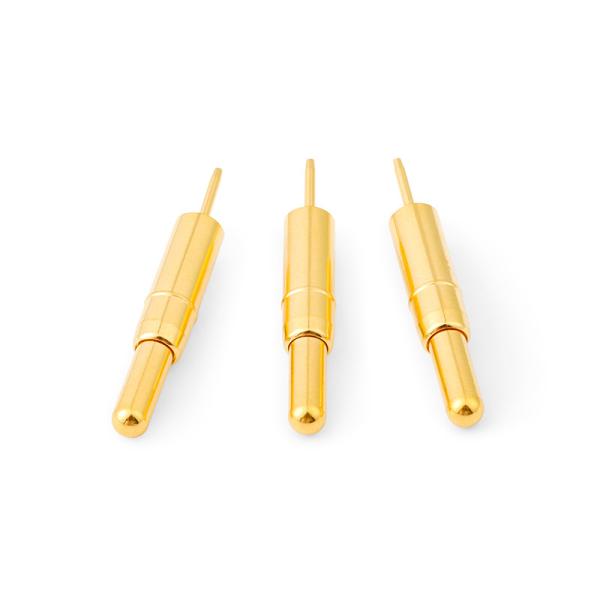

High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated
Specifications
Place of Origin :
China
Brand Name :
HONSHI
Model Number :
AXXXXXXXDVX01
MOQ :
1000 pieces
Price :
$0.01 - $0.05/pieces
Certification :
ROHS/SGS/UL
Payment Terms :
T/T,Paypal
Supply Ability :
800000kpcs
Delivery Time :
5-8 Day
Packaging Details :
Tray/Tube/Reel
Type :
F
Application :
PCB
Gender :
Male
Product name :
Pogo Pin
Material :
Brass 3604
Spring :
SUS304
Rated Current :
1.5A(customized)
Contact Resistance :
50mΩ
Sping force :
100g±20% at normal working stroke
Life test :
10,000 cycles
Plated :
Gold palted(1U")(can customized)
Packing :
PE Bag,Reel
Sample :
Support samples
Description

High Precision Brass C6801 Gold Plated Spring Loaded Pogo Pin Connector Dip Type

Specific material electrical parameters
Electrical Performance: Mechanical Performance:
Rated Current: 1.5/2.0/3.0AMP Spring force: 100g±20g or Customized
Contact Resistance: 50mΩ Max Work Stroke: Customized
Rated Voltage: DC 12V Maximum Working stroke: Customized
Operation Temperature: -40°c to +105°c Mechanical Life 100,000 cycles
Resistance To Solder Heat: 260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.


High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated

High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold PlatedPOGO PIN:Product selection Catalogs.pdf

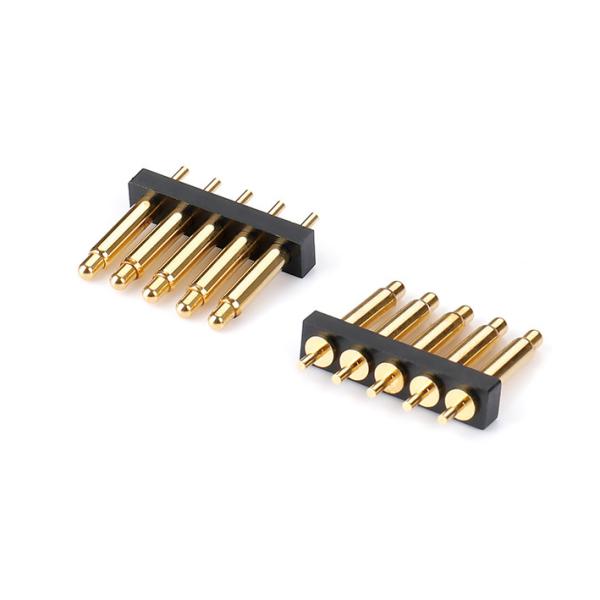

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

High Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold PlatedHigh Precision Brass C6801 Pogo Pin Connector Spring Loaded Dip Type Gold Plated

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.
