ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HONSHI
Model Number :
A20450XXSWX01
MOQ :
1000 pieces
Price :
Negotiaiton
Certification :
ISO9001/ISO14001/CE/ROHS/REACH
Payment Terms :
T/T,Paypal
Supply Ability :
990000PCS
Delivery Time :
15~25Day
Packaging Details :
PE Bag,Tube,Reel Packaging
Application :
PCB
Gender :
Male
Product name :
Single pogo pin
Material :
Brassc3604
Plating :
Gold Flash(can customized)
Rated Voltage :
DC12V,5A
Contacts Resistance :
50mohm Max
Spring force :
100g±20%
Cycle life :
10,000 times
Salt fog :
72H
Sample :
Free Samples(within 10pcs)
Packing :
PE.Bag/Tape&Reel
Description

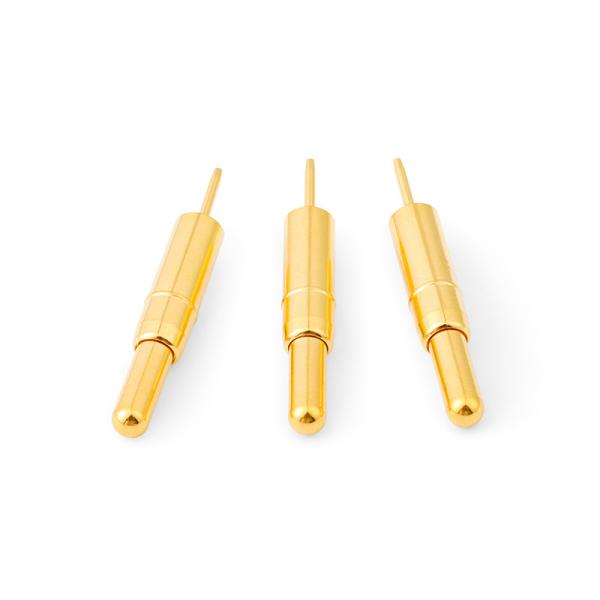

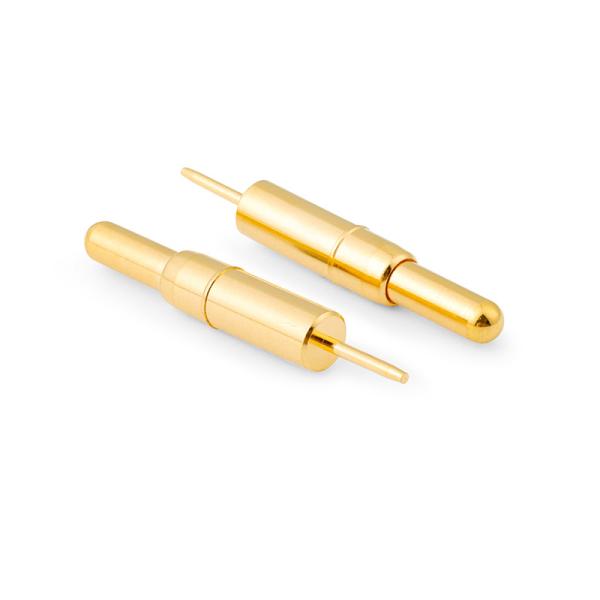

ODM High Current pogo pin 2A 3A 5A 10A brass contact pin pogo pin connector

Specific material electrical parameters
Electrical Performance: Mechanical Performance:
Rated Current: 3AMP Spring force: 100g±20g or Customized
Contact Resistance: 50mΩ Max Work Stroke: Customized
Rated Voltage: DC 12V Maximum Working stroke: Customized
Operation Temperature: -40°c to +105°c Mechanical Life 100,000 cycles
Resistance To Solder Heat: 260℃±5℃ 20s±2s
All materials comply with"ROHS" environmental protection standards
Customized POGO PIN Warmly welcome W/LOW MOQ.

ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin

ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo PinPOGO PIN-Product selection Catalogs--2024.pdf

Pogo Pin Connector

Pogo Pin is a precision connector used in mobile phones and other electronic products.

It is widely used in various electronic products and plays a role in signal transmission connection.

Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type,

side hole type, etc.

The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.

Plating selection: regular gold plating, nickel plating, etc.

ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

ODM Brass Contact Pogo Pin Connector 2A 3A 5A 10A High Current Pogo Pin
