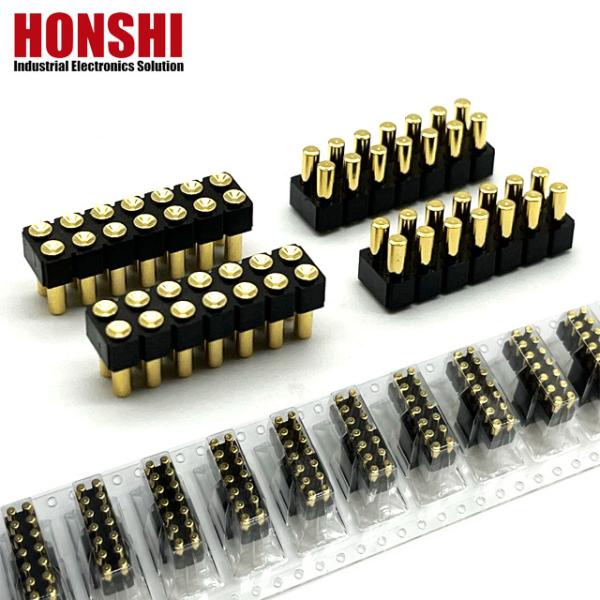

2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB
Specifications
Place of Origin :
China
Brand Name :
HONSHI
Model Number :
A422514FG0SV500R01
MOQ :
500 pieces
Price :
$0.013 - $0.192/pieces
Certification :
ROHS/SGS/UL
Payment Terms :
T/T,Paypal
Supply Ability :
500000kpcs
Delivery Time :
7-15 Day
Packaging Details :
Tray/Tube/Reel
Type :
Pogo Pin Connector
Application :
PCB
Gender :
Female
Housing Material :
Brass
Product name :
Pogo Pin Connector
Contact material :
Brassc3604/c6801
Plating :
Tin/gold Flash/5u''gold/10u''gold/15u''gold/30u''gold
Rated Current :
1A
Contact resistance :
50mΩ Max
Spring force :
70g±20%
Operating Temperature :
40 C~+105
Life test :
10,000 times
Package :
PE.Bag/Tape&Reel
Lead time :
Inventory simple 2-3day /customizd simple3-5day
Description

Product Description

Part number A422514FG0SV500R01
Description Customized 2.54mm 2x7Pin pogo pin SMT type 1u" gold plated Brass Contact Surface is concave, Reel+CAP packing
Material
Plunger

Brass 3604
Barrel Brass 3604
Spring SUS304

Electrical
Rated current 1.0A / Customized
voltage DC 12V
Contact resistance 50 mohm maximum at normal working height(quiescence)
Mechanical
Spring force 100g±20% at normal working height
Durability 20,000 cycles(minimum)
Operating Temp -40°C~+105°C
Salt Spray 48H
Application PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic
Samples Inventory simple 2-3day /customizd simple 5day
Delivery Date 10~15days after confirm your orders
Customized pogo pin warmly welcome W/LOW MOQ

Drawing details

2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB

2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB

2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB

2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB

2.54mm High Current Pogo Pin Connector Female 2x7P Gold Plated H2.5 SMT Type For PCB

FAQ

1. Q:What ‘s MOQ ?

A: MOQ 500PCS.

2. Q: What’s samples quantity you can get with free?

A:You can get 30pcs free samples

3. Q: What’s samples lead time?

A: 3-5 working day.

4. Q: What’s mass production delivery date?

A: 2 Weeks.

5. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

6. Q: I need your price list of all your products, do you have a price list ?

A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!

7. Q: I can't find the product on your catalogue, can you make this product for me?

A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30-40days.

8. Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.

9. Q: Can you provide samples ? Are the samples free ?

A: Yes,we can provide samples.If you need many items, or need more qty for each item,we will charge for the samples.

10. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT.That's a

Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.
