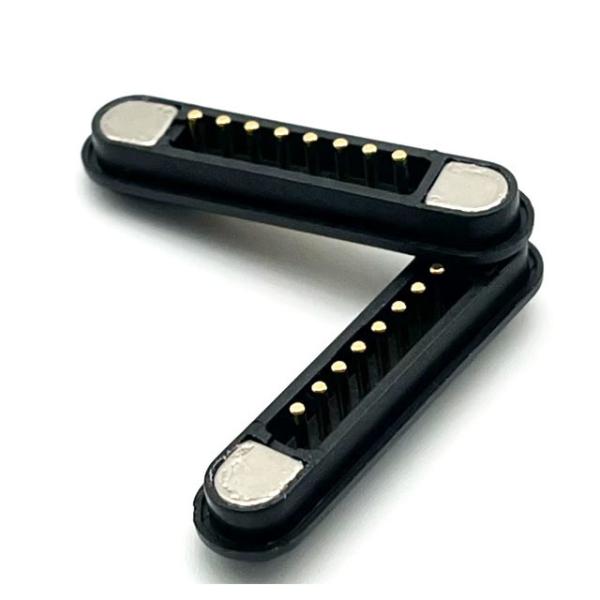

8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HONSHI
Model Number :
A22058NG0DVXXXT01
MOQ :
100 pieces
Price :
Negotiaiton
Certification :
ISO9001/ISO14001/CE/ROHS/REACH
Payment Terms :
T/T,Paypal
Delivery Time :
15~25Day
Packaging Details :
PE Bag,Tube,Reel Packaging
Supply Ability :
800000
Type :
POGO Pin
Application :
PCB Board
Gender :
Male
Product name :
Brass Pogo Pin
Contact material :
Brassc3604/c6801
Plating :
Tin/gold Flash/5u''gold/10u''gold/15u''gold/30u''gold
Rated Current :
1A
Contact resistance :
50mΩ Max
Spring force :
70g±20%
Operating Temperature :
40 C~+105
Life test :
10,000 times
Package :
PE.Bag/Tape&Reel
Lead time :
7-14 Days
Description

8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board

Product Description

Part number A22508NG0DVXXXT01
Description Customized 8Pin MagneticMagnetic pogo pin Dip type 3u" gold plated
Material
Plunger Brass 3604
Barrel Brass 3604
Spring SUS304
Electrical
Rated current 1.0A / Customized
voltage DC 12V
Contact resistance 50 mohm maximum at normal working height(quiescence)
Mechanical
Spring force 60g±20% at normal working height
Durability 20,000 cycles(minimum)
Operating Temp -40°C~+105°C
Salt Spray 48H
Application PCB,AV equipment,medical equipment,military communication,aerospace,Phone watch, electronic
Samples Inventory simple 2-3day /customizd simple 5day
Delivery Date 10~15days after confirm your orders
Customized pogo pin warmly welcome W/LOW MOQ

8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board

8pin Magnetic Connector Male Female Pogo Pin Connector For Pcb Board

Product name: magnetic connector

The categories of molding Magnetic pogo pin connector& Pogo Pin magnetic wire harnesseveloped and produced by Dongguan HONSHI Electronics Co., ltd .

The Magnetic Connector It can not only achieve good high-frequency signal transmission and provide current charging of over 10A, but also provide high-speed data transmission and fast charging functions.

Advantages of magnetic connectors
1. Magnetic positioning: Using magnetic attraction to generate automatic alignment and adsorption, it is more convenient, fast, and effective than manual insertion and removal.
2. Long lifespan: Over 10000 insertions and removals.
3. Fast charging: High current transmission with standard production of 1A to 10A.
4. Anti fall: The adsorption interface is easy to remove and does not easily drive the adsorbed electronic products.
5. Non standard customization: The product specifications are diverse and can be customized according to needs based on drawings and samples.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
