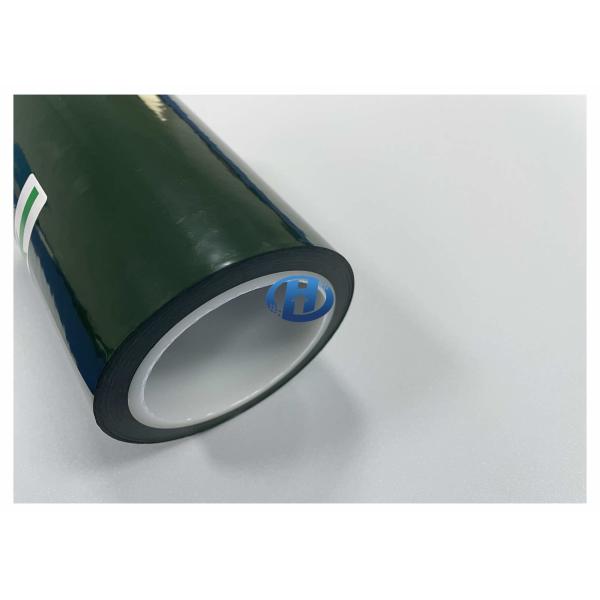

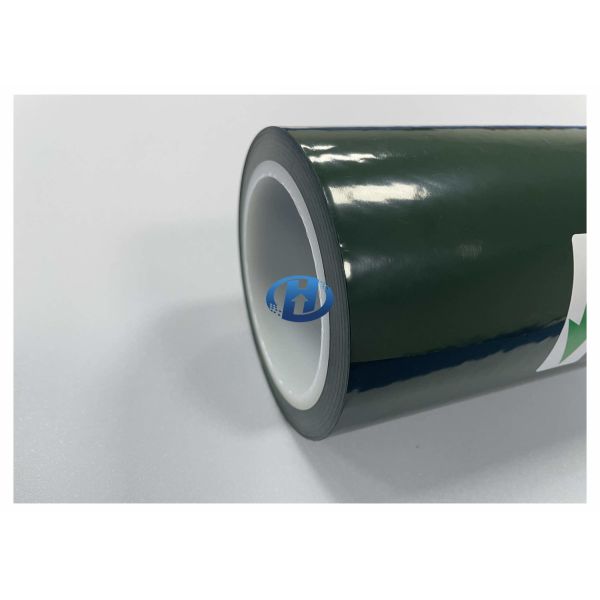

30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications
30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications
30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications
30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications
Specifications
Brand Name :
HSF
Model Number :
35DG-DS1030-LPE
Place of Origin :
China
MOQ :
10000㎡
Payment Terms :
T/T, L/C
Supply Ability :
80000kg per week
Delivery Time :
within 10 days
Packaging Details :
PE wrapping film + Bubble Film + Wooden pallet (Standard 1100mm x 1100mm x 100mm)
Material :
Low Density Polyethylene
Color :
Dark Green, customized
Halogen free :
Yes
Thickness :
35 ± 5μm, customized
Width :
1070 ± 5mm, customized
Core :
3" or 6"
Coating :
Double Side UV Cured Silicone Coating
Release Force :
Side A 5-10gf, Side B 20-30gf, the ratio of release force can be customized
Subsequent Adhesion Rate :
≥75%
Length :
7000m ± 200m, customized
Splice :
≤1
Sample :
A4 sheet for free
Description

LDPE Release Film, D, 35micron, DG, UV Cured, Application of Tape, Sealing strip, No solvent or silicone transfer.

1 Appearance No air bubbles / stains / breakage / impurities Measured
2 Size Width (mm) 1070 -0+5 1071
Thickness (mm) 0.035 ± 0.005 0.036
3 Tensile Strength (Mpa) TD ≥ 15 16
MD ≥ 15 23
4 Color difference Colorimeter △E ＜ 3 ok
5 Elongation @ break (%) TD ≥ 230 882
MD ≥ 230 443
6 Surface Tension (Corona treatment) Dyne Value ≥42 dyne 48
7 Release Force (gf/25mm 20min.Finat 10) Inner 5-10 7
Outer 20-30 24
8 Subsequent Adhesion (%) Inner ≥75 88
Outer ≥75 90
9 Winding direction Customized -
10 Splice No. ≤1 -

LDPE (high pressure low density polyethylene):

Non-toxic, tasteless, odorless, translucent spherical or cylindrical particles, excellent low temperature resistance,

chemical resistance, good extensibility, electrical insulation, but poor wetness, Flammable.

Density: 0.910—0.9408g/cm³, suitable for extrusion, blister, injection molding, vacuum, molding, and conversion

molding and other processing methods. The crystallinity is 55-65%, and the crystal melting point is 108-126 °C.

30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications30 μm 40 μm LDPE Film Double Side UV Cured Silicone Coating Film mainly used for tape applications
