40 μm HDPE UV Cured Silicone Coating Film No Silicone Transfer No Residuals Customized
40 μm HDPE UV Cured Silicone Coating Film No Silicone Transfer No Residuals Customized
40 μm HDPE UV Cured Silicone Coating Film No Silicone Transfer No Residuals Customized
40 μm HDPE UV Cured Silicone Coating Film No Silicone Transfer No Residuals Customized
40 μm HDPE UV Cured Silicone Coating Film No Silicone Transfer No Residuals Customized
40 μm HDPE UV Cured Silicone Coating Film No Silicone Transfer No Residuals Customized
Specifications
Brand Name :
HSF
Model Number :
40WDS1030-PE
Place of Origin :
China
MOQ :
10000㎡
Payment Terms :
T/T, L/C
Supply Ability :
80000kg per week
Delivery Time :
within 10 days
Packaging Details :
PE wrapping film + Bubble Film + Wooden pallet (Standard 1100mm x 1100mm x 100mm)
Material :
High Density Polyethylene
Color :
White, customized
Halogen free :
Yes
Thickness :
40 ± 5μm, customized
Width :
960 ± 5mm, customized
Core :
3" or 6"
Coating :
Double Side UV Cured Silicone Coating
Release Force :
Side A 5-10gf, Side B 20-30gf, the ratio of release force can be customized
Subsequent Adhesion Rate :
≥75%
Length :
5000m ± 200m, customized
Splice :
≤1
Sample :
A4 sheet for free
Description

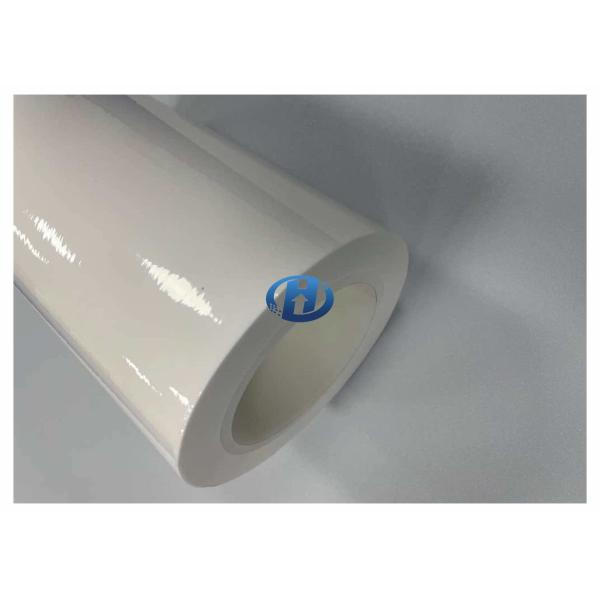

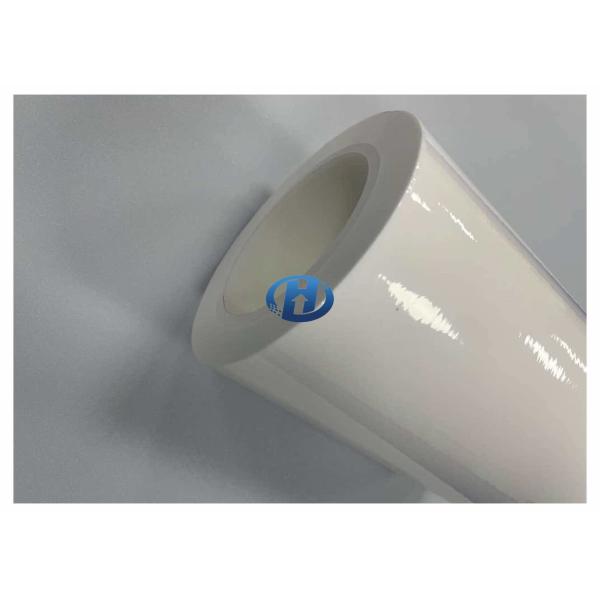

HDPE Release Film, D, 40micron, White, UV Cured, Application of Tape, Sealing strip, No solvent or silicone transfer.

1 Appearance No air bubbles / stains / breakage / impurities Measured
2 Size Width (mm) 960 ± 5 962
Thickness (mm) 0.040 ± 0.005 0.042
3 Max. Tension (N / 50mm) TD ≥ 30 44
MD ≥ 30 52
4 Color White Colorimeter △E＜ 3 ok
5 Elongation @ break (%) TD ≥ 150 594
MD ≥ 200 479
6 Surface Tension (Corona treatment) Dyne Value ≥42 dyne for each side 46
7 Release Force (gf/25mm 20min.Finat 10) Inner 5-10 7
Outer 20-30 24
8 Subsequent Adhesion (%) Inner ≥75 88
Outer ≥75 90
9 Winding direction Customized -
10 Splice No. ≤1 -

HDPE (low-pressure high-density polyethylene):

Non-toxic, tasteless, odorless white powder or columnar or semi-circular particles,

with wear resistance, capacitance resistance, water impermeability, flammability, poor flexibility.

The melting point is about 130°C, and the relative density is 0.941-0.965. it has good heat and cold resistance,

good chemical stability, high rigidity and toughness, good mechanical strength, dielectric properties,

and environmental stress cracking resistance are excellent as well.

The product is widely used as an ideal material for various tapes, sealing strips,etc.
