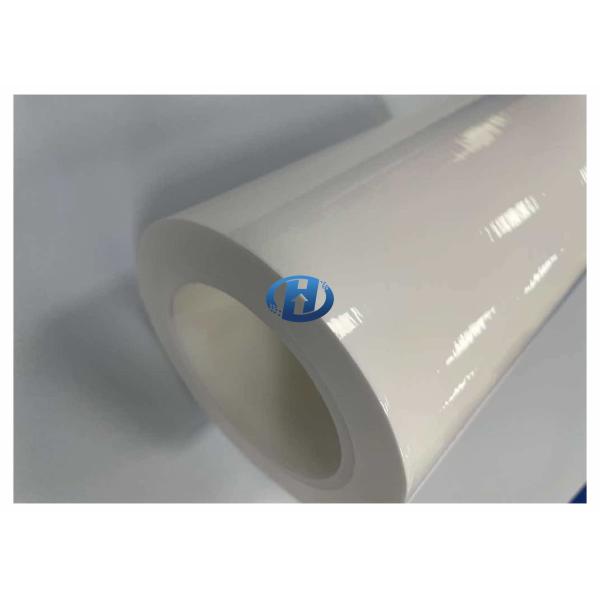

120 μm HDPE Release Film No Solvent No Silicone Transfer Without Residuals
120 μm HDPE Release Film No Solvent No Silicone Transfer Without Residuals
120 μm HDPE Release Film No Solvent No Silicone Transfer Without Residuals
120 μm HDPE Release Film No Solvent No Silicone Transfer Without Residuals
120 μm HDPE Release Film No Solvent No Silicone Transfer Without Residuals
120 μm HDPE Release Film No Solvent No Silicone Transfer Without Residuals
Specifications
Brand Name :
HSF
Model Number :
120WSS15-PE
Place of Origin :
China
MOQ :
10000㎡
Payment Terms :
T/T, L/C
Supply Ability :
80000kg per week
Delivery Time :
within 10 days
Packaging Details :
PE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
Material :
High Density Polyethylene
Color :
White, customized
Halogen free :
Yes
Thickness :
120μm ± 8%
Width :
1200 ± 5mm
Core :
3" or 6"
Coating :
Single Side UV Cured Silicone Coating
Release Force :
10-15gf, customized
Subsequent Adhesion Rate :
≥75%
Length :
1800 ± 200m, customized
Splice :
≤1
Sample :
A4 Sheet for free
Description

HDPE Release Film, S,120micron, White, UV Cured, Application of Tape, Sealing strip, No solvent, No Silicone transfer.

1 Appearance No air bubbles / stains / breakage / impurities Measured data (Ref.)
2 Size Width (mm) 1200 ± 5 1200
Thickness (mm) 0.120 ± 8% 0.123
3 Color difference Colorimeter △E ＜ 3 ok
4 Tensile Strength (Mpa) TD ≥ 15 19
MD ≥ 15 28
5 Elongation @ break (%) TD ≥ 230 863
MD ≥ 230 939
6 Surface Tension (Corona treatment) Dyne Value ≥42 dyne 49
7 Release Force (gf/25mm 20min.Finat 10) 10-15 11
8 Subsequent Adhesion (%) ≥ 75 90
9 Winding direction Customized -
10 Splice No. ≤1 -

HDPE (low-pressure high-density polyethylene):

Non-toxic, tasteless, odorless white powder or columnar or semi-circular particles,

with wear resistance, capacitance resistance, water impermeability, flammability, poor flexibility.

The melting point is about 130°C, and the relative density is 0.941-0.965g/cm³. it has good heat and cold resistance,

good chemical stability, high rigidity and toughness, good mechanical strength, dielectric properties,

and environmental stress cracking resistance are excellent as well.

The product is widely used as an ideal material for various tapes, sealing strips, etc.
