Specifications
Brand Name :
HSF
Model Number :
20R0510DS-PET
Place of Origin :
China
MOQ :
1000kg
Payment Terms :
T/T, L/C
Supply Ability :
80000kg per week
Delivery Time :
within 10 days
Packaging Details :
PE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
Material :
Polyethylene Terephthalate
Color :
Red, Customized
Thickness :
20μm ± 3%
Width :
≤2300mm
Core :
6" or 3"
Coating :
Double Side UV Cured Silicone Coating
Release Force :
Side A 1-5gf, Side B 5-10gf, the ratio of release force can be customized
Subsequent Adhesion Rate :
≥75%
Length :
≤12000m
Splice :
≤1
Sample :
A4 sheet for free
Description

20μm Red PET Silicone Release Film, for converting processing, or laminating with various adhesive side, easy peeloff.

S/N Test Item Unit Value Test Method
1 Thickness μm 19.46 DIN53370
2 Color Red
3 Tensile Strength MD N/mm² 182 DIN53455-6-5
TD N/mm² 216
4 F-5 MD N/mm² 97.8 DIN53455-6-5
TD N/mm² 89.4
5 Elongation @ break (%)

MD

% 116 DIN53455-6-5
TD % 96
6 Elasticity Modulus MD N/mm² 3565 DIN53455-6-5
TD N/mm² 3840
7 Friction Coefficient F/M-US 0.411 DIN53375
F/M-UK 0.315
8 Haze % 70.6 ASTM D1003
9 Luminousness % 75.8 ASTM D1003
10 Glossiness % 26.5-28 ASTM D2457
11 Thermal Shrinkage MD % 1.5 ASTM D1204 150, 30min.
TD % 0
12 Wetting Tension mN/m 58 ASTM D2578
13 Release Force Inner gf/25mm 3 Final 10, 20min.
Outer 10
14 Sub-sequent Adhesion Rate Inner % 91
Outer 89

Widely applicable for converting processing, or laminating with acrylic base PSA side, rubber base adhesive, hot melts, inks,

cast materials and other special films, easy to peel off.

1. Packaging decoration:

PET release film can be aluminized by vacuum aluminizing machine to form a kind of aluminized cardboard

with metallic luster, which is characterized by degradable and recyclable environmental attributes and is a green,

novel and advanced packaging material that has just been developed.

2. Transfer:

PET transfer film can also be referred to as PET transfer film, which is characterized by its reusability.

It can be used in the field of printing on the one hand, PET release film can be transferred to glass, porcelain, plastic,

metal, leather and cotton textile and other material objects by heating and pressure through a special process;

on the other hand, it can also be used in highly integrated chemical, plate making, vapor deposition,

precision molds and molding of high-tech industries.

3. Protective film:

PET release film can also be applied to the production of PET protective film material, so it can be used not only

for the protection of stainless steel, nameplates and aluminum panels, as well as laptop cases, display screen protection,

can also be applied to electronic die-cutting, photoelectric die-cutting, electronics and other products in the process of protection.

4. Reflective film:

First-class PET release film can be made into PET reflective film through a special process, which has excellent optical properties,

thermal stability and light aging resistance, etc. It is mainly used in reflective requirements for reflective traffic signs, billboards and

industrial safety signs, etc.

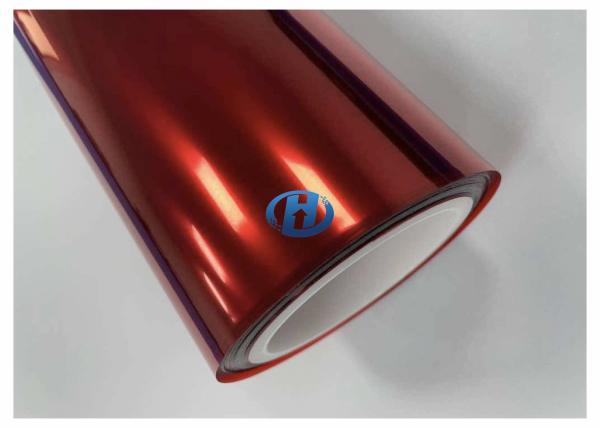

20 μm Red UV Cured PET Polyester Transfer Film For Precision Molds20 μm Red UV Cured PET Polyester Transfer Film For Precision Molds
