Specifications
Brand Name :
Hsinda
Model Number :
Color Matching and Tailored Solutions
Certification :
ISO,Rohs,SGS
Place of Origin :
China,Mainland
MOQ :
Flexible
Price :
Flexible
Payment Terms :
L/C, T/T, , MoneyGram, D/A
Supply Ability :
5000 Tons/Year
Delivery Time :
3-8 days after payment
Packaging Details :
Size: 39*29*.39* (unit:cm) Weight: N.W. 25kg G.W. 26kg
Surface Appearance :
Hammered Texture\Wood Grain\Flat Surface
Color Options :
RAL&PANTONE Color
Application Method :
Spray powder
Curing :
180-200 Degree/15-10minutes
Substrate :
Metal\ Aluminum
Application :
Industry, Construction, Semiconductor
Description

Thermoset Powder Coating with Excellent Heat Dissipation for Home Appliance Shells

As home appliances continue to evolve, the need for durable, heat-resistant coatings has become increasingly essential. Thermoset powder coatings are the ideal solution, offering excellent heat dissipation, superior durability, and a flawless finish for a wide range of home appliance shells.

Thermoset Powder Coating Excellent Heat Dissipation for Home Appliance Shells

Product introduction:

Our Thermoset Powder Coatings are specially formulated to provide outstanding heat dissipation and protection for the shells of home appliances. These coatings are engineered to withstand high temperatures, offering enhanced performance and longevity for appliances such as refrigerators, washing machines, and microwaves.

  • Color Options: Choose from a broad range of colors, including RAL, Pantone, or custom formulations to match your brand's aesthetics.

  • Surface Finishes: Available in a variety of finishes, including glossy, matte, and textured, as well as special effects like metallic or wood grain.

  • Superior Protection: Offers excellent corrosion resistance, weatherability, UV stability, and chemical resistance, ensuring long-term durability in a variety of environmental conditions.

Key Features:

  • Heat Dissipation: Our powder coatings are specifically designed to optimize heat flow, helping to prevent overheating in home appliances.

  • Durability: Provides a long-lasting finish that resists scratches, chipping, and fading, even under harsh conditions.

  • Eco-Friendly: As a powder coating, it is free from solvents and VOCs, making it an environmentally responsible choice for manufacturers.

  • UV and Weather Resistance: Protects against the damaging effects of sunlight and weathering, ensuring the appliance remains visually appealing over time.

Powder Coating Process:

The thermoset powder coating process involves applying a dry powder electrostatically to the surface of an appliance shell. Afterward, the powder is cured using heat, which forms a tough, durable finish that enhances the appliance’s resistance to wear and heat. This method is particularly effective for high-temperature applications, where both heat resistance and durability are essential.


Product details:

Product Details
Type

Epoxy Powder Coating; Polyester Powder Coating;

Epoxy-Polyester Powder Coating

Color Custom colors available or RAL/Pantone color matching
Surface Finish Glossy, Matte, Textured
Gloss level electrostatic spray epoxy resin names paints powder coating with free sample
Particle Size Average 32-42μm
Specific Gravity 1.2-1.7g per cubic meter
Coverage 8-10 square meters per Kg at 30-90 μm film thickness
film thickness Not less than 100μm
Application Recommendation
Application Voltage 60-90 KV
Gun to Component Distance 15-30CM
Curing Temperature 180-200ºC,10 min-15 min
Powder coated Film Mechanical Properties
Adhesion Cross-cut(2mm),no loss of adhesion
Impact Resistance Direct impact 50kg/cm
Pencil Hardness 1H-2H
Cupping Test 6mm Mandrel
Bending Test 5mm
Powder Coated Film Chemical Resistance
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 5% HCL for 48 hours dip test - No change
Alkali Resistance 5% NaOH for 48 hours dip test - No change
Storage Stability
Store in ventilated, dry, clean room, temperature < 25ºC
Relative humidity 50-65%
Away from direct sunlight, fire, heat
For best performance, use within 6 months

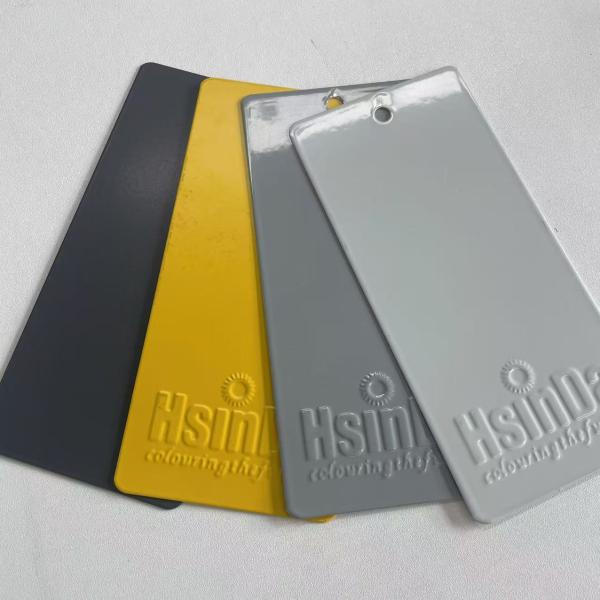

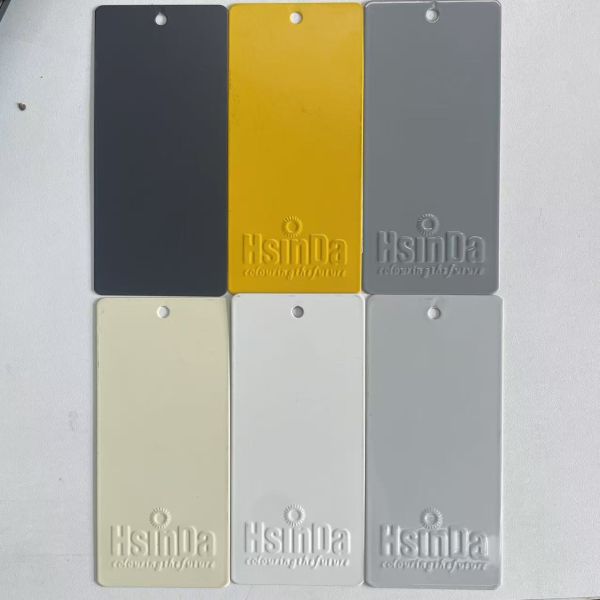

Product pictures:

Thermoset Powder Coating Excellent Heat Dissipation for Home Appliance Shells

Applications of Product:

♦ Electrical Household Appliances ♦ Aerospace Area
♦ Automotive Electronics ♦ Fitness Equipment
♦ Track Traffic ♦ Medical Devices
♦ Petroleum Pipes, Valve ♦ Tools & Hardware
♦ LED Lights, Outdoor Lamps ♦ Radiator & Heat Sink
♦ Glass Decoration ♦ External Facilities

Pack&shipping:

Trade Terms FOB, CIF, CRF, CNF
Payment Terms T/T, L/C, West Union, PayPal etc.
Delivery time 3-7 days after payment
Packaging Size: 39*29*39 (unit:cm) Weight: N.W. 26kg G.W. 27kg
Thermoset Powder Coating Excellent Heat Dissipation for Home Appliance Shells By sea, by air, by courier

Test:

Test Item Test Method Test Result
Film Thickness ISO2360 60-80um
Pencil Hardness ASTMD 3363 HB-H
Bending ISO1519 ≤10mm
Grid Test 1mm ISO2409 0 Class
Impulse Test ASTMD2794 Pass
Cupping Test ISO1520 ≥8mm
Heat Resistance 1000 hours ISO6270-1 Popping<1mm
Salt Spray 1000 hours ISO9227 Corrosion Spreading<1mm
