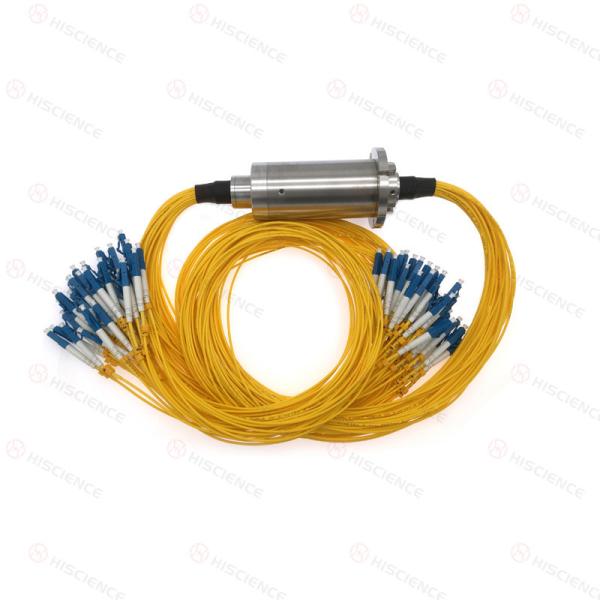

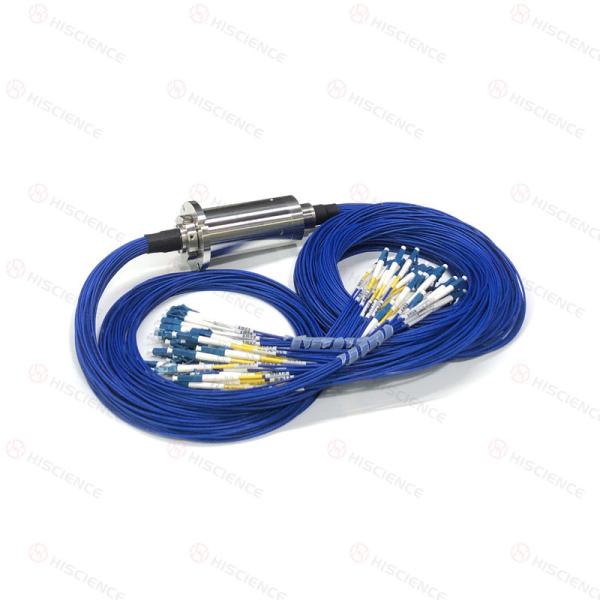

2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring
Specifications
Brand Name :
Hiscience
Model Number :
HF02J-FC001
Certification :
ISO
Place of Origin :
Shenzhen , China
MOQ :
1
Payment Terms :
T/T
Price :
Negotiate
Packaging Details :
Carton
Delivery Time :
2-6 Weeks, Stock Available
Supply Ability :
300 PCS/Week, Stock Available
Name :
Fiber Optic Slip Rings
Fiber Type :
Single Mode(9/125 μm)
NO.of Circuits :
N≤37According to customer’s request
Wavelength Range :
780-1650(Default:1310& 1550 nm)
Insertion Loss :
≤ 4.0dB
Insertion Loss Variations :
≤±1dB
Description

Fiber Optic Slip Ring 2 to 37 Circuits of optical signals

Product Description:

Features:

Low insertion loss
Optical transmssion technology of multi-Circuit, no
electroma gnetic leakage and anti-elertromagnetic interference
leakage and anti-electromagnetic interference
Contactless signal transimission
Small size. suitable for small space

Typical application:

  • Broadcast and Entertainment: Fiber optic slip rings find applications in the broadcasting industry, enabling the transmission of high-quality video, audio, and data signals in rotating cameras, stage lighting systems, and broadcasting equipment.

  • Military and Defense: Fiber optic slip rings are used in military and defense applications, such as surveillance systems, radar systems, and communication systems, providing secure and reliable optical signal transmission in demanding environments.

  • Automotive Testing: Fiber optic slip rings are employed in automotive testing facilities for transmitting optical signals from sensors, cameras, and diagnostic equipment mounted on rotating components during vehicle testing and development.

Options:

Number of optical Circuits
Wavelength range
Housing material
Fiber pigtail Connector type
Fiber connector type ST. LC
Installation modes

Specifications:

Technical Specifications
Fiber Type Single Mode(9/125 μm)
NO.of Circuits N≤37According to customer’s request
Wavelength Range 780-1650(Default:1310& 1550 nm)
Insertion Loss ≤ 4.0dB
Insertion Loss Variations ≤±1dB
Return Loss >45dB
Optical crosstalk ≥70dB
Max. Optical Power 25dBm
Roating Speed 300rmp
Working Life ≥50 million (300 rpm)
Pulling Strength ≥75N
Working Temperature -40~70℃
Storage Temperature -45~85℃
Protection(IP Grade) IP68
Housing Material Stainless Steel
Connector Type Default:FC/PC
Package Style Pigtails on both ends, default. Φ2.0mm, 1.0 meters long
Vibration Standard MIL-STD-167-1A
Mechanical shock MIL-STD-810G

Drawing for HF02J-FC001:

2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring

2 - 37 Circuits Optical Signal Slip Ring Small IP68 Optical Slipring

FAQ:

Can fiber optic slip rings be used in high-temperature environments?

Yes, there are fiber optic slip rings available that are designed to operate in high-temperature environments, such as foundries or industrial furnaces. These slip rings are made with materials that can withstand elevated temperatures.

Can fiber optic slip rings be used in explosive environments?

Yes, there are fiber optic slip rings that are specifically designed for use in explosive environments, such as oil refineries or chemical plants. These slip rings are made with explosion-proof materials and meet safety standards.

Are fiber optic slip rings compatible with other communication protocols?

Yes, fiber optic slip rings can be compatible with various communication protocols such as Ethernet, USB, or RS-232. This allows for integration with different types of equipment and systems.
