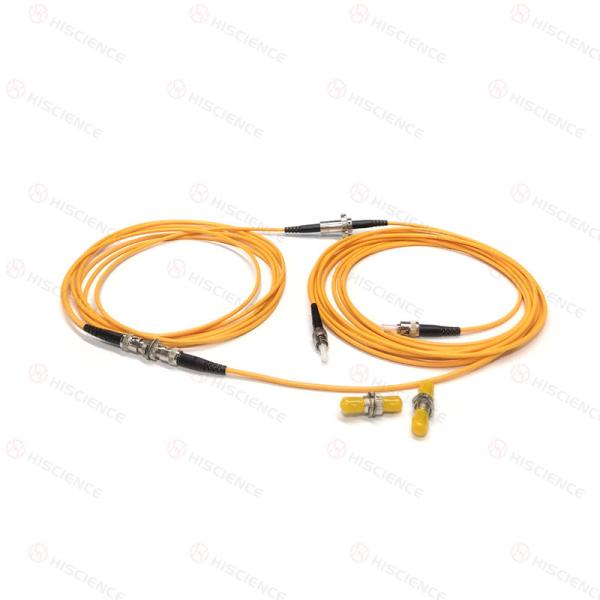

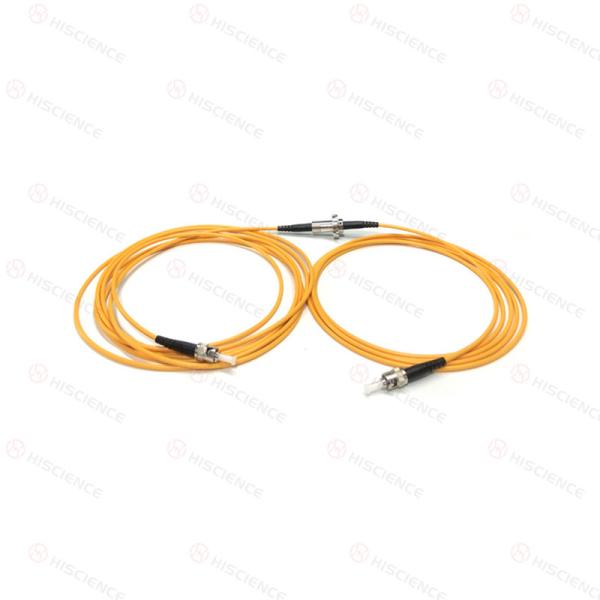

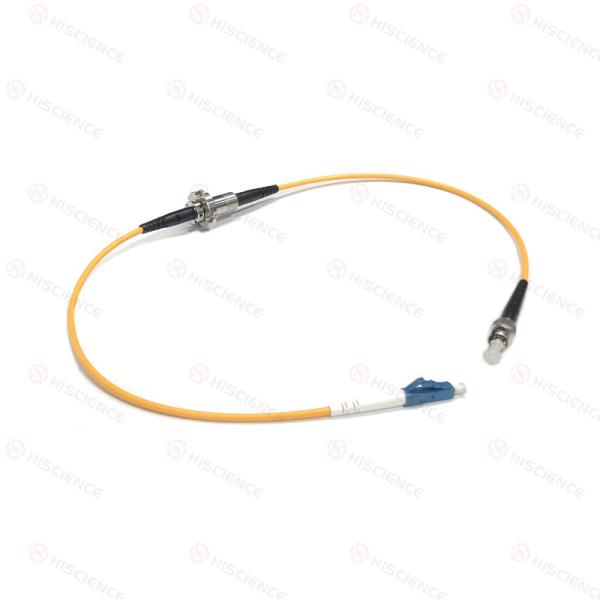

Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices
Specifications
Brand Name :
Hiscience
Model Number :
HF01E-FC001
Certification :
ISO
Place of Origin :
Shenzhen , China
MOQ :
1
Payment Terms :
T/T
Price :
Negotiate
Packaging Details :
Carton
Delivery Time :
2-6 Weeks, Stock Available
Supply Ability :
300 PCS/Week, Stock Available
Name :
Fiber Optic Slip Rings
Fiber Type :
Single Mode(9/125 μm)
NO.of Circuits :
1
Wavelength Range :
780-1650(Default:1310& 1550 nm)
Insertion Loss :
≤ 3.0dB
Insertion Loss Variations :
≤±0.25dB
Description

Fiber Optic Slip Rings, Single-Channel Optical Signal

Product Description:

Features:

  • FC receptacle, free to choose fiber patch cable

  • Used for optical signal transmssion,no electromagnetic leakage and anti-electromagnetic interference

  • Contactless signal transmission

  • Integrated FORJ with electrical slip ring

Typical application:

  • Robotics and Automation: Fiber optic slip rings are used in robotic systems and automation equipment, enabling the transmission of optical signals between stationary bases and rotating joints or arms. This facilitates real-time data communication, control signals, and video transmission in robotic operations.

  • Medical Devices: Fiber optic slip rings are utilized in medical equipment and devices such as endoscopes, surgical robots, and imaging systems. They enable the transmission of high-resolution video signals, imaging data, and optical power between rotating and stationary parts, facilitating minimally invasive procedures and precise imaging.

  • Aerospace and Defense: Fiber optic slip rings are employed in aerospace and defense applications, including surveillance systems, remote sensing platforms, and communication systems in aircraft, satellites, and unmanned aerial vehicles (UAVs). They enable the transmission of optical signals in rotating parts, ensuring reliable communication and data transfer.


Options:

Wavelength range
Housing material
Fiber pigtail Connector type
Fiber connector typeST. LC
Installation modes


Specifications:

Technical Specifications
Fiber Type Single Mode(9/125 μm)
NO.of Circuits 1
Wavelength Range 780-1650(Default:1310& 1550 nm)
Insertion Loss ≤ 3.0dB
Insertion Loss Variations ≤±0.25dB
Return Loss >40dB
Optical crosstalk -
Max. Optical Power 25dBm
Roating Speed 2000rmp
Working Life ≥200 million (300 rpm)
Pulling Strength ≥75N
Working Temperature -40~80℃
Storage Temperature -45~85℃
Weights 25g
Protection(IP Grade) IP61
Housing Material Stainless Steel SUS304
Connector Type Default:FC/PC
Package Style FC/PC Flange
Vibration Standard MIL-STD-167-1A
Mechanical shock MIL-STD-810G


Drawing for HF01E-FC001:

Single Channel Fibre Optic Slip Ring Small For Medical Devices
Single Channel Fibre Optic Slip Ring Small For Medical Devices

FAQ:

What is the maximum rotational speed that fiber optic slip rings can handle?

The maximum rotational speed of fiber optic slip rings can vary depending on the specific model, but they are designed to handle high speeds ranging from a few hundred to tens of thousands of rotations per minute (RPM).

Can fiber optic slip rings transmit power?

No, fiber optic slip rings are primarily designed for the transmission of optical signals. Power transmission is typically handled separately through electrical slip rings or other power transmission methods.

Do fiber optic slip rings require lubrication?

No, fiber optic slip rings do not require lubrication as they rely on non-contact transmission methods, such as air gaps or fiber optic rotary joints, which eliminate the need for lubrication.
