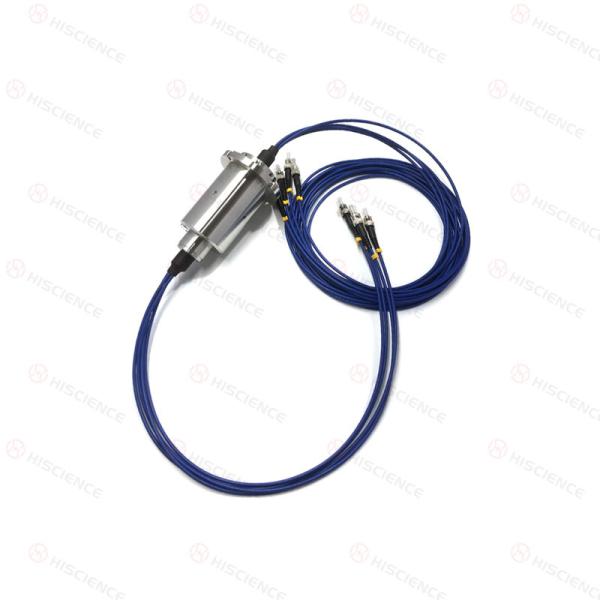

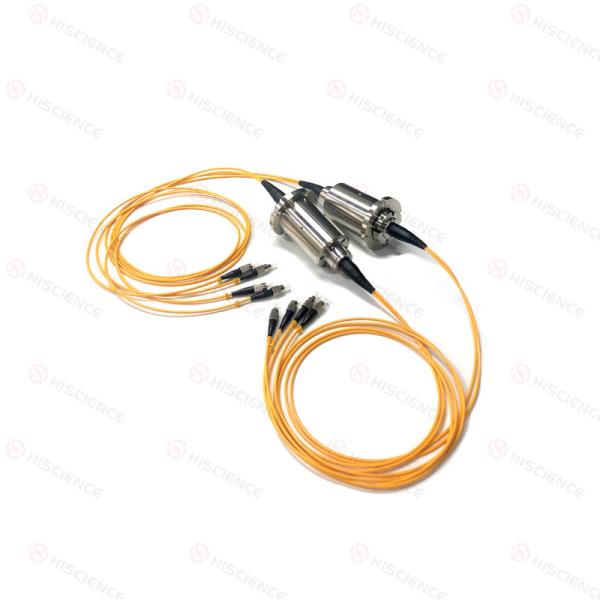

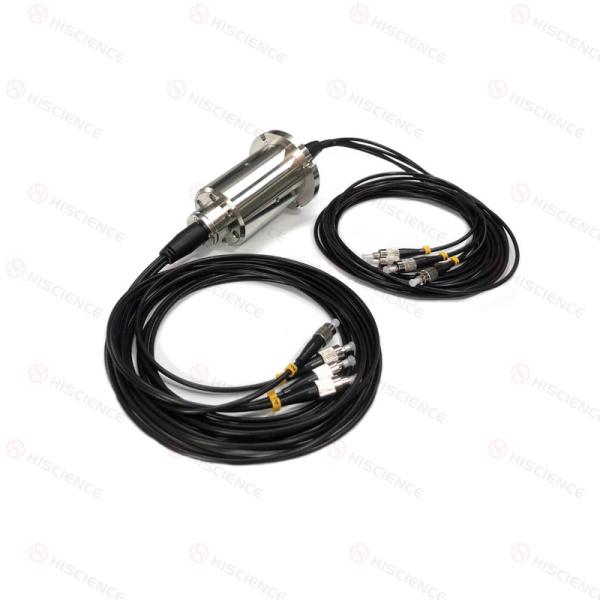

2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints
Specifications
Brand Name :
Hiscience
Model Number :
HF02F-FC001
Certification :
ISO
Place of Origin :
Shenzhen , China
MOQ :
1
Payment Terms :
T/T
Price :
Negotiate
Packaging Details :
Carton
Delivery Time :
2-6 Weeks, Stock Available
Supply Ability :
300 PCS/Week, Stock Available
Name :
Optical Slipring
Fiber Type :
Single Mode(9/125 μm)
NO.of Circuits :
N≤4 According to customer’s request
Wavelength Range :
780-1650(Default:1310& 1550 nm)
Insertion Loss :
≤ 4.0dB
Insertion Loss Variations :
≤±1.0dB
Description

Fiber Optic Slip Ring, 2 to 4 Circuits of Optical Signals

Product Description:

Features:

Low insertion loss
Optical transmssion technology of multi-channel, no
electroma gnetic leakage and anti-elertromagnetic interference
leakage and anti-electromagnetic interference
Contactless signal transimission
Inteorated FORI with electriral slip ring



Typical application:

  • Automotive Industry: Fiber optic slip rings find application in automotive systems, including electric vehicles and autonomous vehicles, for optical signal transmission in communication networks, sensing, and control systems.

  • Railway and Transportation: Fiber optic slip rings are utilized in railway systems, transportation equipment, and signaling systems to enable continuous optical signal transmission for communication, control, and signaling between rotating and stationary parts.

  • Marine and Offshore Systems: Fiber optic slip rings find application in marine and offshore systems, including shipboard equipment, offshore platforms, and underwater cables, for optical signal transmission in communication, monitoring, and control systems.


Options:

Number of optical Circuits
Wavelength Range
Housing Material
Fiber Pigtail Connector Type
Fiber Connector TypeST. LC
Installation Modes



Specifications:

Technical Specifications
Fiber Type Single Mode(9/125 μm)
NO.of Circuits N≤4 According to customer’s request
Wavelength Range 780-1650(Default:1310& 1550 nm)
Insertion Loss ≤ 4.0dB
Insertion Loss Variations ≤±1.0dB
Return Loss ≥45dB
Optical Crosstalk ≥70
Max. Optical Power 25dBm
Roating Speed 2000rmp
Working Life ≥50 million (300 rpm)
Pulling Strength ≥75N
Working Temperature -40~75℃
Storage Temperature -45~85℃
Weights 25g
Protection(IP Grade) IP65
Housing Material Stainless Steel
Connector Type Default:FC/PC
Package Style Pigtails on both ends, default.o3.0mm, 1.0 meters long
Vibration Standard MIL-STD-167-1A
Mechanical Shock MIL-STD-810G


Drawing for HF02F-FC001:

2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints

2 - 4 Circuits Optical Slipring , Single Mode Fiber Optic Rotary Joints

FAQ:

Can fiber optic slip rings be used in explosive environments?

Yes, there are fiber optic slip rings that are specifically designed for use in explosive environments, such as oil refineries or chemical plants. These slip rings are made with explosion-proof materials and meet safety standards.

Are fiber optic slip rings compatible with other communication protocols?

Yes, fiber optic slip rings can be compatible with various communication protocols such as Ethernet, USB, or RS-232. This allows for integration with different types of equipment and systems.

Can fiber optic slip rings transmit analog signals?

Yes, fiber optic slip rings can transmit analog signals such as audio or video signals. They can maintain the quality and integrity of analog signals during transmission.
