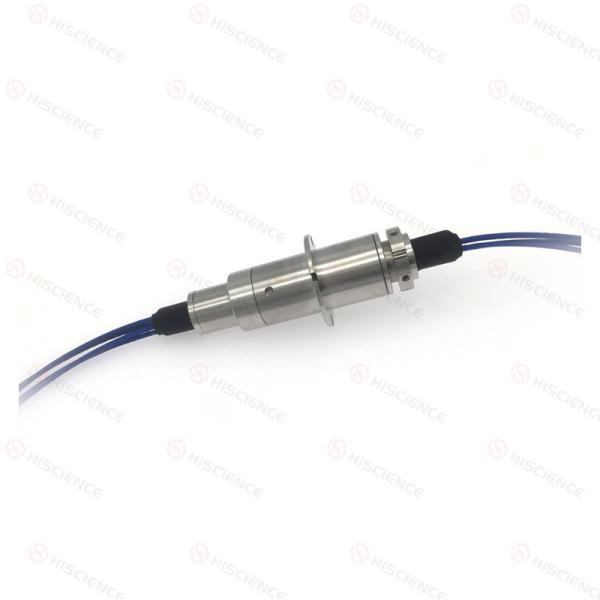

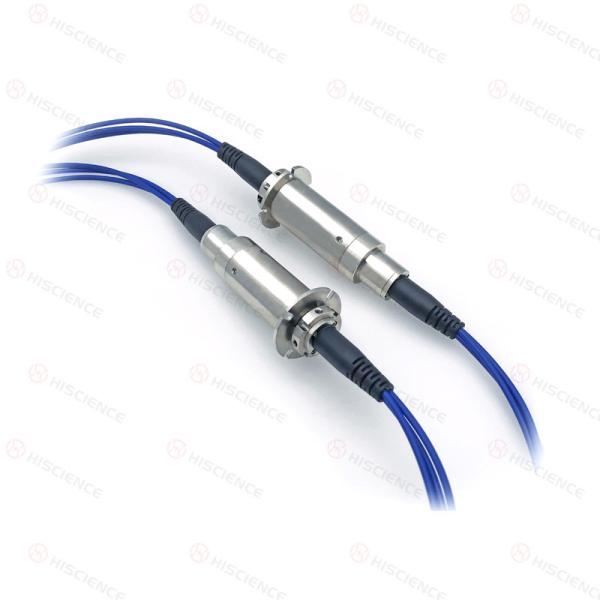

Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint
Specifications
Brand Name :
Hiscience
Model Number :
HF02G-FC001
Certification :
ISO
Place of Origin :
Shenzhen , China
MOQ :
1
Payment Terms :
T/T
Price :
Negotiate
Packaging Details :
Carton
Delivery Time :
2-6 Weeks, Stock Available
Supply Ability :
300 PCS/Week, Stock Available
Name :
Fiber Optic Slip Ring
Fiber Type :
Single Mode(9/125 μm)
Wavelength Range :
780-1650(Default:1310& 1550 nm)
Insertion Loss :
≤ 4.0dB
NO.of Circuits :
N≤9According to customer’s request
Insertion Loss Variations :
≤±1dB
Description

Fiber Optic Slip Ring 2 to 9 Circuits of optical signals

Product Description:

Features:

Low insertion loss
Optical transmssion technology of multi-Circuit, no
electroma gnetic leakage and anti-elertromagnetic interference
leakage and anti-electromagnetic interference
Contactless signal transimission
Small size. suitable for small space

Typical application:

  • Research Vessels: Fiber optic slip rings are used in research vessels and oceanographic equipment, enabling optical signal transmission in rotating sensor arrays, underwater cameras, and sampling systems.

  • Steel and Metal Processing: Fiber optic slip rings find applications in steel and metal processing machinery, such as rotating furnaces and rolling mills, facilitating optical signal transmission for process control and monitoring.

  • Traffic Monitoring: Fiber optic slip rings are employed in traffic monitoring systems, such as rotating traffic cameras and intelligent transportation systems, enabling optical signal transmission for real-time traffic surveillance and analysis.

Options:

Number of optical Circuits
Wavelength range
Housing material
Fiber pigtail Connector type
Fiber connector typeST. LC
Installation modes

Specifications:

Technical Specifications
Fiber Type Single Mode(9/125 μm)
NO.of Circuits N≤9According to customer’s request
Wavelength Range 780-1650(Default:1310& 1550 nm)
Insertion Loss ≤ 4.0dB
Insertion Loss Variations ≤±1dB
Return Loss ≥45dB
Optical crosstalk ≥70dB
Max. Optical Power 25dBm
Roating Speed 300rmp
Working Life ≥50 million (300 rpm)
Pulling Strength ≥75N
Working Temperature -40~80℃
Storage Temperature -45~85℃
Protection(IP Grade) IP65
Housing Material Stainless Steel
Connector Type Default:FC/PC
Package Style Pigtails on both ends, default. Φ3.0mm, 1.0 meters long
Vibration Standard MIL-STD-167-1A
Mechanical shock MIL-STD-810G

Drawing for HF02G-FC001:

Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint

Multi Circuits Fiber Optic Slip Rings Manufacturers IP65 Optical Rotary Joint

FAQ:

Can fiber optic slip rings be repaired if they become damaged?

In most cases, fiber optic slip rings can be repaired by trained technicians or by contacting the manufacturer for assistance. However, the extent of repairability may depend on the specific design and damage to the slip ring.

Can fiber optic slip rings be used in underwater applications?

Yes, some fiber optic slip rings are specifically designed for underwater applications and can operate reliably in submerged conditions.

Are fiber optic slip rings suitable for high-vibration environments?

Yes, fiber optic slip rings are designed to withstand high vibrations and shocks, making them
