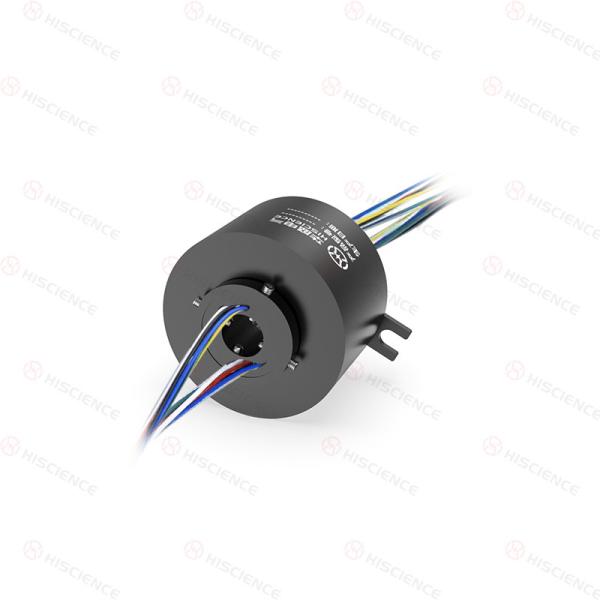

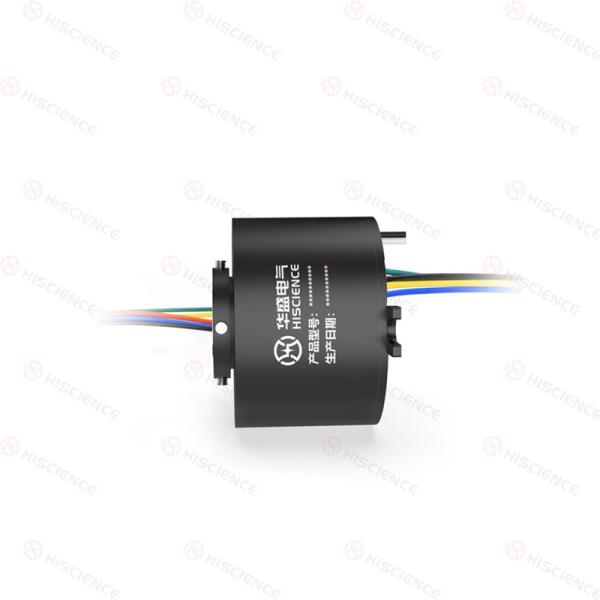

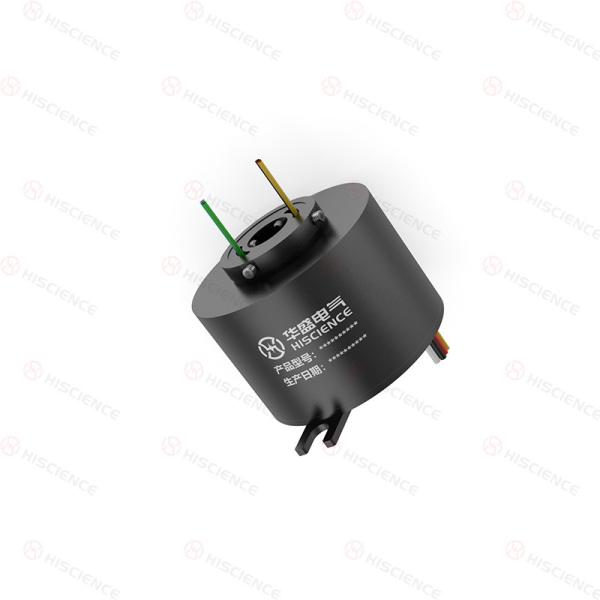

Through Bore Slip Rings 12 circuits 10 A 16 circuits signal 2 circuits shielded Hole Size 12.7mm

Product Description:

Features:

• High Current Capacity: These Through Bore Slip Rings are designed to handle a maximum current of 10 A per circuit, making them suitable for applications that require the transmission of significant power loads.

• Signal Transmission: The 16 circuits dedicated to signal transmission ensure reliable and efficient transfer of control signals, data, and communication between rotating and stationary parts.

• Shielded Circuits: The 2 shielded circuits provide enhanced protection against electromagnetic interference (EMI), ensuring the integrity of sensitive signals and reducing the risk of signal degradation or loss.

Typical Application:

• Communications Systems: These slip rings are used in communications systems, including satellite dishes, antennas, and tracking systems, allowing the transmission of power and signals during satellite tracking and communications.

• Cranes and hoisting systems: Through-hole slip rings are used in cranes and hoisting systems to transmit power and signals to rotating booms, trolleys and hoisting mechanisms.

• Stage and Theater Lighting: These slip rings are used in stage and theater lighting systems to facilitate power and signal transmission for rotating lighting fixtures, moving head lights and color changers.

Specifications:

Drawing for HT1256-P1210-S16-G02:

FAQ:

Can the slip rings be customized for different circuit configurations or hole sizes?

Customization options may be available depending on the manufacturer. It is advisable to reach out to the manufacturer or supplier to discuss specific customization requirements.

Are the slip rings maintenance-free?

These slip rings are designed for maintenance-free operation, requiring minimal maintenance over their operational lifespan. However, regular inspection and cleaning may be necessary to ensure optimal performance.

What industries or applications are these slip rings commonly used in?

These slip rings find applications in various industries, including robotics, packaging machinery, medical equipment, automation, and any application that requires the transmission of power and signals between rotating and stationary components.
