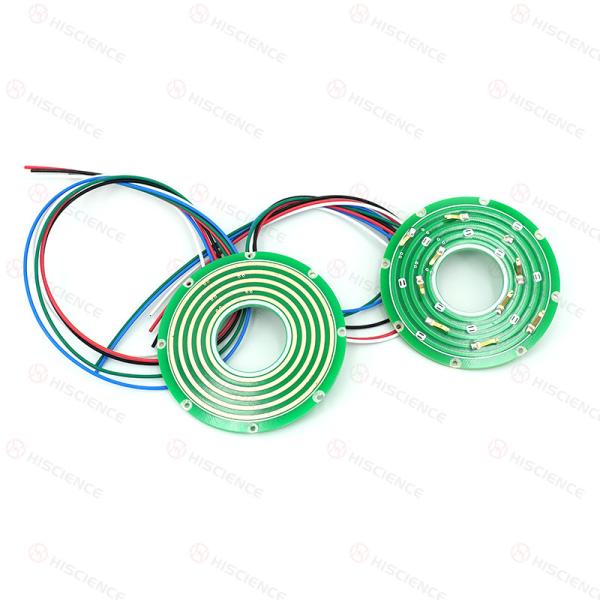

Pancake Slip Rings 4 circuits 10A

Product Description:

Features:

• 4 signal channels, capable of transmitting various signal types
• Ultra-thin design, space-saving
• High rotating speed, stable signal transmission
• Excellent performance, reliable and durable
• Customizable options to meet different needs
• Suitable for various industrial applications, widely used in medical, aerospace, automation, etc. industries.
• Can handle current up to 10A per circuit
• Suitable for high-power applications
• Available with various customization options
• Ideal for use in heavy-duty industrial environments.

Typical Application:

• Broadcast Equipment: Pancake slip rings are used in broadcast equipment, such as camera cranes and remote-controlled camera systems. They ensure uninterrupted transmission of power, video signals, and control commands during camera movements, allowing for smooth and precise camera operations during live broadcasts or recording sessions.

• Test and Measurement Systems: Pancake slip rings are essential in various test and measurement systems. They enable the transmission of signals and power between stationary and rotating parts, ensuring accurate data acquisition and control. This makes them suitable for applications such as rotary sensors, data acquisition systems, and testing equipment.

• Packaging and Labeling Systems: Pancake slip rings play a crucial role in packaging and labeling systems by facilitating the transfer of power and control signals to rotating components. This allows for precise and synchronized packaging, labeling, and marking processes, improving efficiency and accuracy.

Specifications:

Drawing for HP25-P0410:

FAQ:

Are pancake slip rings suitable for high-speed applications?

Yes, pancake slip rings can be designed for high-speed applications. By using appropriate materials, precision manufacturing techniques, and effective brush and ring configurations, they can maintain signal integrity and operate reliably at high rotational speeds.

What is the temperature range of operation for pancake slip rings?

The temperature range of operation for pancake slip rings can vary depending on the materials used and the specific design. However, many slip rings can operate within a temperature range of -40°C to +80°C (-40°F to +176°F), while some specialized models can withstand even higher temperatures.

Are pancake slip rings resistant to shock and vibration?

Pancake slip rings can be designed to withstand shock and vibration to varying degrees. Durable construction, secure mounting mechanisms, and proper shock-absorbing features can enhance their resistance to mechanical stress and ensure reliable operation in demanding environments.
