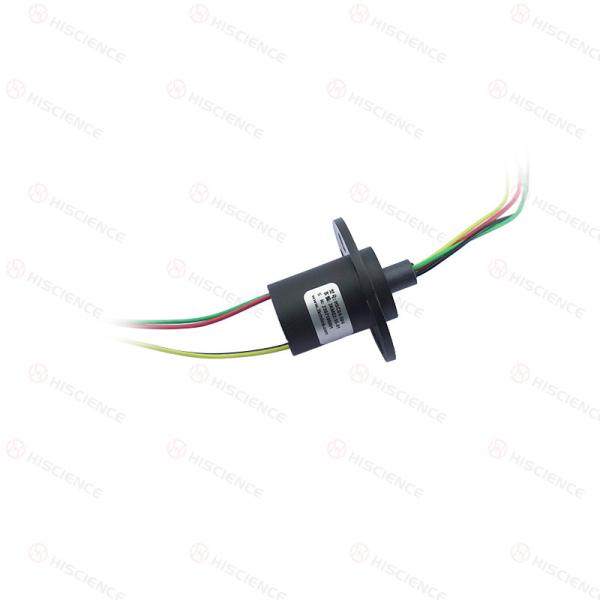

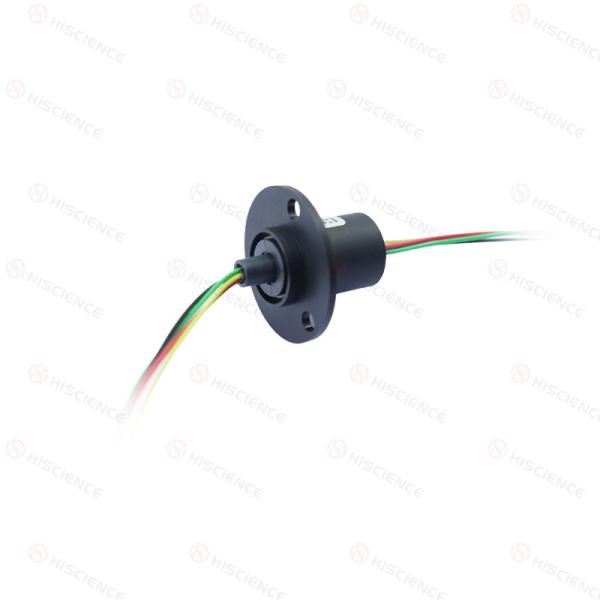

4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material
Specifications
Brand Name :
Hiscience
Model Number :
HSMS04-P04(3KM02-96-01)
Place of Origin :
Shenzhen , China
MOQ :
1
Payment Terms :
T/T
Certification :
ISO
Name :
Capsule Slip Ring Manufacturers
Circuits &Current :
4/5A
Lead Wire Size :
AWG22# Teflon Insulated
Voltage :
110VAC/VDC
Dielectric Strength :
≥100VAC@50Hz
Contact Material :
Precious Metal
Price :
Negotiate
Packaging Details :
Carton
Delivery Time :
1-2 Weeks, Stock Available
Supply Ability :
10000 PCS/Week, Stock Available
Description

Capsule Slip Ring 4 Circuits 5A

Product Description:

Features:

  • Multi-Channel: Slip rings feature 4 independent circuits to transmit multiple signals or power lines.

  • 5A Current Rating: Rated at 5A per circuit, the slip ring can handle higher current requirements, ensuring reliable power transmission in demanding applications.

  • Durable Construction: Slip rings are constructed of durable materials to provide long-lasting performance and reliability in challenging environments.

Typical Application:

  • Automotive Testing: Capsule Slip Ring are used in automotive testing equipment to enable rotation while transmitting signals and power to sensors and actuators.

  • Printing Equipment: Capsule Slip Ring find applications in printing equipment, enabling the rotation of printing heads and transmitting control signals and power.

  • Semiconductor Manufacturing: They are employed in semiconductor manufacturing equipment, enabling rotation while transmitting signals and power to process chambers and robotics.

Specifications:

Electrical Parameter
Circuits &Current 4/5A
Lead Wire Size AWG22# Teflon Insulated
Voltage 110VAC/VDC
Dielectric Strength ≥100VAC@50Hz
Insulation Resistance ≥100㏁@100VDC
Electrical Noise ≤30㏁

Mechanical Parameter
Lead Wire Size Stator:250±10mm
Rotor:119±50mm
Working Speed 0~300rpm
Contact Material Precious Metal
Housing Materia Engineering Plastics
Working Humidity ≤85%RH
Working
Temperature		 -30'C~+80℃
Protection(IP Grade) IP51

Drawing for HSMS04-P04(3KM02-96-01):

4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material

4 Circuits 5A Capsule Slip Ring Manufacturers With Precious Metal Contact Material

FAQ:

What are the safety features of Capsule Slip Ring?

Capsule Slip Ring can include safety features such as overcurrent protection and short-circuit prevention to ensure the protection of connected equipment and personnel.

Can Capsule Slip Rings handle both AC and DC currents?

Yes, Capsule Slip Rings can handle both AC and DC currents, making them suitable for a wide range of electricalapplications.

Capsule Slip Ring be used in underwater environments?

Capsule Slip Ring can be designed for underwater applications, with appropriate sealing and corrosion-resistant materials to ensure reliable performance in submerged conditions.
