Electrical Parameter Circuits/Current 8 Circuits 10A + 19 Signals + 1Shield Voltage 0-240VAC/DC Lead Wire size AWG17#/AWG24# Teflon Insulated RVSP-8*0.15mm² Cable Dielectric strength ≥500V@50HZ Insulation Resistance 500MΩ@500VDC Dynamic Contact Resistance ≤10mΩ Mechanical Parameter Working Speed 0-200RPM Protection(lP Grade) IP51 Working Temperature -40℃~+80°C Contact Material Precious Metal Housing Material Aluminum Alloy Pneumatic Parameter Passages 1 Passage Connection Thread Size M6, 6mm Pressure 1 Mpa Transmitting Media Compressed AirRotary Union with 4 circuits 10 A + 16 signals + 1 shield

Reliable Signal Transmission: With advanced engineering to minimize signal loss and interference, this slip ring ensures clear and stable data transfer. Its design is particularly suitable for applications that demand high signal integrity, such as communication systems and medical devices.

Mechanical Efficiency: With a working speed range of 0-250RPM and an IP51 protection rating, this slip ring is designed for both performance and reliability under various operational conditions. Its operational temperature range of -20℃ to +80°C further enhances its versatility across different climates and environments.

Pneumatic Capability: Featuring a single passage with a G1/8'', 8mm connection thread size, this slip ring supports compressed air transmission up to 1 Mpa. This capability makes it suitable for pneumatic systems requiring efficient and reliable air pressure transmission.

Typical Application:

Amusement Park Rides: In amusement park rides, the slip ring transmits power and control signals to rotating components, such as lighting systems and sensors, ensuring a seamless and safe user experience. The addition of pneumatic passages supports air-driven effects like smoke or air cannons.

Agricultural Sprayers: In agricultural sprayers, the slip ring supports continuous rotation and stable signal transmission for spray arms. Its pneumatic channel allows precise airflow control, ensuring even and efficient application of fertilizers, herbicides, and pesticides.

Mining and Tunneling Machines: For mining and tunneling equipment, the slip ring facilitates power and control signal transmission to rotating drilling heads and conveyors. Its rugged design ensures durability and reliability in harsh underground conditions.

Specifications:

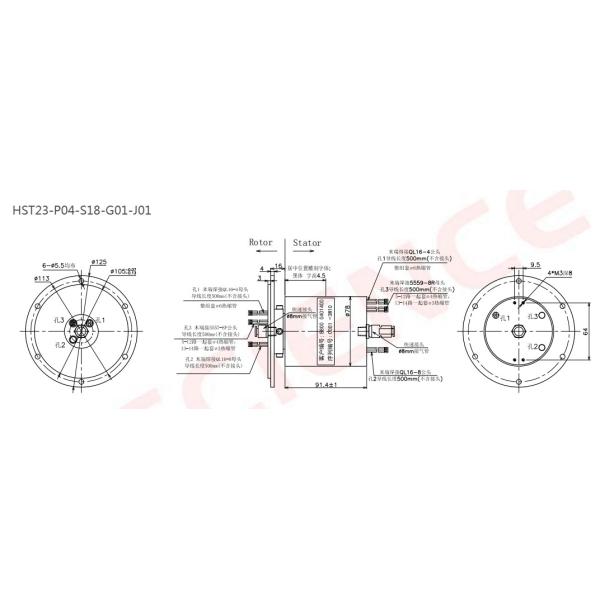

Drawing:

FAQ:

Q: How easy is it to install and maintain this slip ring?

A: Our slip rings are designed for easy installation and maintenance. With clear installation instructions and modular components, you can quickly and easily integrate the slip ring into your application and perform routine maintenance tasks.

Q: How do I place a custom order?

A: To place a custom order, please contact our customer service team and provide them with your specific requirements. They will guide you through the process and help you create the perfect product.

Q: Will you follow up with me after I receive my order?

A: Absolutely! We value your feedback and want to ensure that you are completely satisfied with your purchase. We will reach out to you periodically after you receive your order to check on your satisfaction and address any concerns you may have.
