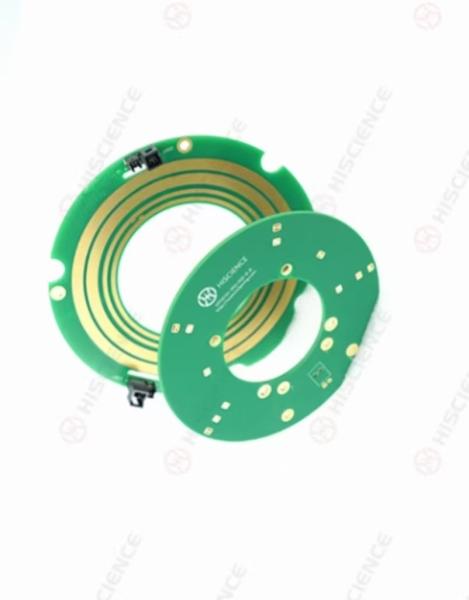

Space-Saving Design in Pancake Slip Rings for Limited Space Integration in Medical Imaging Equipment and Surveillance Systems
Space-Saving Design in Pancake Slip Rings for Limited Space Integration in Medical Imaging Equipment and Surveillance Systems
Specifications
Brand Name :
Hiscience
Model Number :
HP50101-P02-S05-D
Certification :
RoHs
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
2000 PCS/week, Stock Available
Delivery Time :
4-6 Weeks, Stock Available
Packaging Details :
Carton
Description

Product Description:

Multiple Circuits: The slip ring features 2 circuits for power (10A) and 2 circuits for signal (2A), ensuring efficient transmission for applications.


Low Electrical Noise: Designed with ≤70mΩ @ 15rpm, the slip ring ensures smooth and stable signal transmission, minimizing interference.


Compact Design: The slim, space-saving design allows integration into devices where space is limited.

Typical Applications:

Robotic Systems: Used in robotic arms and automation equipment, allowing for seamless power and signal transmission in continuous rotational movements.


Medical Imaging Equipment: Essential for CT scanners, MRI machines, and surgical robots, providing reliable data and power transmission between rotating and stationary parts.


Surveillance & CCTV Systems: Enables pan-tilt-zoom (PTZ) cameras to rotate freely without cable tangling, ensuring smooth video signal transmission.

Specifications:

Electrical Parameter
Power & Current 2Circuits*10A
Signal & Current 2Circuits*2A
Rating Voltage 0-24VAC/VDC
Dielectric Strength ≥100V@50Hz
Insulation Resistance 50MQ@100VDC
Electrical Noise ≤70mΩ@15rpm

Mechanical Parameter
Working Speed 0~120rpm
Contact Material Precious Metal
Housing Material FR-4
Working Temperature -40*C~+60°C

Drawing:

Space-Saving Design in Pancake Slip Rings for Limited Space Integration in Medical Imaging Equipment and Surveillance Systems

FAQ:

Q: What materials are used in the construction of this slip ring?
A: This slip ring features precious metal contacts for high conductivity and an FR-4 housing for durability and electrical insulation.


Q: Is this slip ring suitable for outdoor use?
A: The IP51 protection level provides basic dust resistance, but for harsh outdoor environments, a higher IP-rated slip ring is recommended.


Q: Can this slip ring be customized?
A: Yes, we offer customization options, including circuit configurations, wire lengths, connector types, and IP ratings to meet specific application needs.
