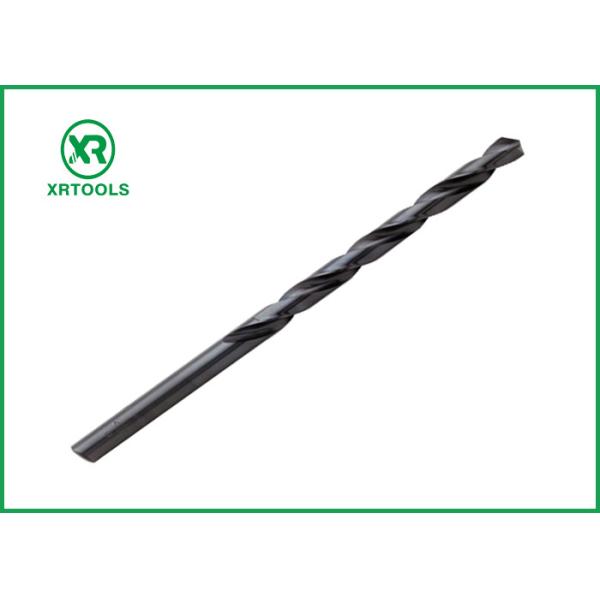

Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit
Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit
Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit
Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit
Specifications
Brand Name :
STARRY
Model Number :
3mm-13mm
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
500
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Supply Ability :
3000000/PCS Per Month
Delivery Time :
30-45days
Packaging Details :
Plastic tube;Paper Color box;Plastic box;BOSCH box.
Product Name :
Din340 hss twist drill bits
Material :
HSS-M35;HSS-M2;HSS-4341;HSS-4241
Surface: :
Black;Amber;Yellow;White
Shank :
paraller shank
Degree Point :
118°；135°
Application :
Metal, steel plate, stainless steel
Hardness :
60-66HRC
Process :
Fully Ground
Service :
OEM
Standard :
DIN340
Description

Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit

A twist bit is the most common type of drill bit for home use. It works for general-purpose drilling in wood, plastic and light metal.

High-Speed Steel (HSS) drill bits can drill wood, fiberglass, PVC (polyvinyl chloride) and soft metals such as aluminum.

Coated drill bits are extremely hard and dissipate heat quickly. They're mostly used for boring in aluminum and tough metals such as stainless steel.

Black oxide-coated HSS drill bits have a finish designed to help resist corrosion and increase durability. They last longer than basic HSS bits and work well on a variety of materials, including metal, hardwood, softwood, PVC and fiberglass.
Titanium-coated HSS drill bits produce less friction. They're tougher than basic HSS bits and stay sharp longer. They work for drilling wood, metal, fiberglass and PVC.
Carbide-tipped drill bits stay sharp much longer than steel, HSS or titanium bits. They're effective for drilling tile and masonry.

Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit

Product Name DIN340 Fully Ground hss fully drill bits
Material M35(HSS-E) (HSS is Available)
Process Fully Ground (Rolled & Polished, Rolled, Milled are Available)
Standard

DIN340,DIN1869,6",12" Aircraft Extention,18",24" Extra Long
Size 1.5-30mm
Point Type 135 Degree Split Point (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)
Shank Type

Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank, Threaded Shank,

Taper Shank are Available)
Helix Angle Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)
Web & Flute Type Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)
Surface Finish Black Color (Bright, Black Oxide, Titanium, Black & Gold, Black & Bright are Available)
Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.
Features

1.Cobalt drill bits are more expensive than other drill bits, but if you regularly drill through metal, they are a

good investment since they tend to last longer.
2.No center punch is needed—the aggressive 135° Quick-Cut points are self-centering and penetrate quickly

with lesspressure. Will not "walk" or "wander".
3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface

of the bit.
5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.

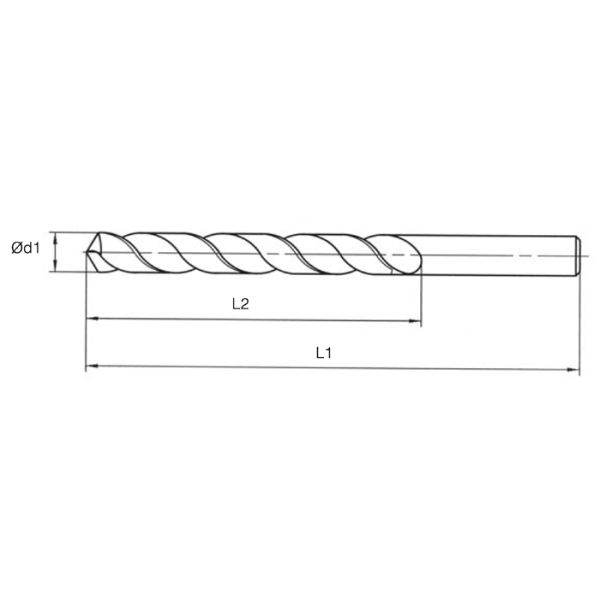

Size:

Black Finished Hole Drill Bit , DIN 340 Parallel Shank Countersink Drill Bit

d1 L1 L2
mm mm mm
1,5 70 45
2,0 85 56
2,5 95 62
3,0 100 66
3,2 106 69
3,3 112 73
3,5 112 73
3,8 119 78
4,0 119 78
4,2 119 78
4,5 126 82
5,0 132 87
5,5 139 91
6,0 139 91
6,5 148 97
7,0 156 102
7,5 156 102
8,0 165 109
8,5 165 109
9,0 175 115
9,5 175 115
10,0 184 121
10,5 184 121
11,0 195 128
11,5 195 128
12,0 205 134
12,5 205 134
13,0 205 134
13,5 214 140
14,0 214 140
14,5 220 144
15,0 220 144
15,5 227 149
16,0 227 149
16,5 235 154
17,0 235 154
17,5 241 158
18,0 241 158
18,5 247 162
19,0 247 162
19,5 254 166
20,0 254 166
22,0 268 176
23,0 275 180
24,0 282 185
25,0 282 185
26,0 290 190
27,0 298 195
28,0 298 195
30,0 307 201

Factory:

XRTOOLS are professional in HSS cutting tools about 15 years old,we accumulated abundant experience of manufacture, and have more ability of investigation and exploitation,as well as leading test equipment,So now some of world famous tool traders punchase from us.hope we can working together in near future.
