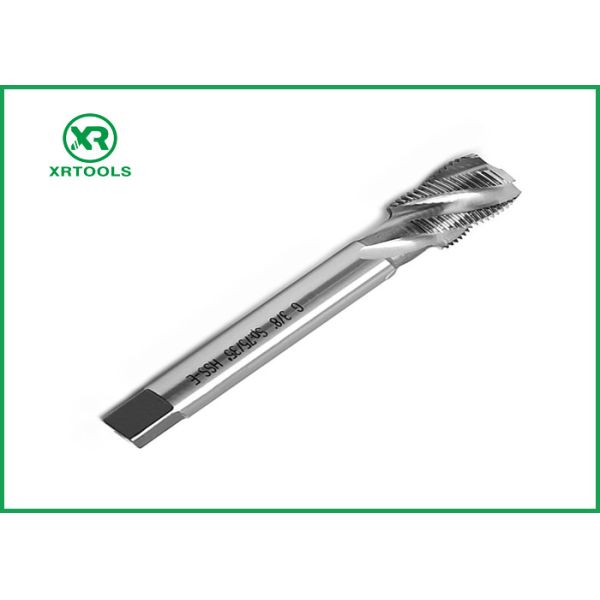

DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision
DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision
DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision
DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision
DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision
DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision
Specifications
Brand Name :
STARRY
Model Number :
G1/16-G2
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
15000pcs per day
Delivery Time :
35days
Packaging Details :
plastic box
Material :
HSS-4341;HSS-M2;HSS-M35
Type :
tap
Surface :
Fully Ground
Standard :
DIN5156
Precision :
H1 H2 H3 H4
Application :
Manual Tapping , Thread Tapping
Flute :
Spiral flute
Description

DIN5156,for metric-ISO thread DIN13,Tolerance 6H=is02

M2 HSS
M35 HSS -E,Coatings,avaliable for specified requirements
2 of set:Taper and Plug.
For through holes and blind holes.

Chamfer type B, 4 - 5 threads with progressive tap and interrupted threads
Operation method Threading machine,CNC lathe,Milling and drilling machine,Lathe

1. Product Description

DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision


Product Name DIN5156 G hand taps sets(spiral taps)
Material: HSS-4241;HSS-4341;HSS-M2;HSS-M35
Surface: white finished.
Application Suitable for tapping through and blind holes. Used for threading in mould steels, unalloyed and low-alloyed steels, cast, NE-metals, zinc, magnesium alloys and thermoplastic materials.

2. size

DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision

d1 p L1 L2 d2 k
BSP (pitch)
(G/Inch)		 mm mm mm

(h12)

mm
G 1/8" 28 90 20 7,0 5,5
G 1/4" 19 100 22 11,0 9,0
G 3/8" 19 100 22 12,0 9,0
G 1/2" 14 125 25 16,0 12,0
G 3/4" 14 140 28 20,0 16,0

if you need other size,pls send email to meat any time.

3. Application:

Used for tapping through and blind holes. Recommended for threading in mould steels, unalloyed and low alloyed steels, cast, NE- metals, zinc, magnesium alloys, and thermoplastic metals.

DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision

4. Packing and Deliver:



DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision

DIN 5156 Spiral Flute Tap Fully Ground For Whitworth Pipe Thread H1 Precision

5.Why choose us:

1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.
2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.
3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.
4. Product : We have confidence in the quality of our products.and the product prices are also competitive.

6.FAQ:

Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.
Q4: What is your MOQ?
A4: 500 pcs
Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.
100% protection for product quality, on-time shipment and payment

Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.
Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
