Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine
Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine
Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine
Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine
Specifications
Brand Name :
STARRY
Model Number :
M6-M30
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
15000pcs per day
Delivery Time :
35days
Packaging Details :
plastic box
Material :
Hss-4241;HSS-4341;HSS-M2;HSS-M35
Type :
tap
Surface :
white finished
Standard :
DIN374
Precision :
6H
Application :
Manual Tapping , Thread Tapping
Flute :
spiral flute
Description
Chamfer type B, 4 - 5 threads with progressive tap and interrupted threads
Operation method Threading machine,CNC lathe,Milling and drilling machine,Lathe

1. Product Description

Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine

Product Name

DIN374 SPIRAL TAPS(Thread taps)

Material

High Speed Steel 4341 6542 M35 and so on

Hardness

HRC62-66

Surface treatment

white finished(We can supply differenk kinds surface treatment to you )

Operation method

Threading machine,CNC lathe,Milling and drilling machine,Lathe.

Application

Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.These taps discharge chips through the hole.

Used for short screw -in length in a through and blind hole. Recommended for threading in low-alloyed steels, cast, nodular cast iron, tempered, cast and the other metals.

2. size

Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine

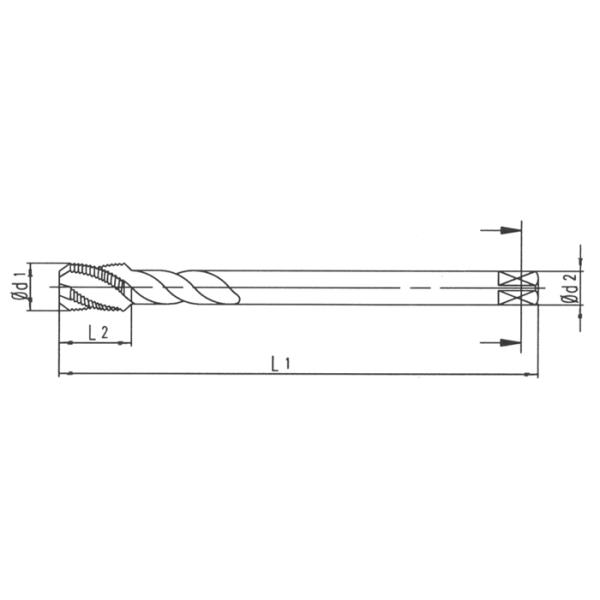

d1 p L1 L2 d2 k
mm (pitch) mm mm mm (h12)
mm
M6 0,75 80 8 4,5 3,4
M8 0,5 80 10 6,0 4,9
M8 1 90 10 6,0 4,9
M10 1 90 12 7,0 5,5
M10 1,25 90 12 7,0 5,5
M12 1 100 14 9,0 7,0
M12 1,25 100 14 9,0 7,0
M12 1,5 100 14 9,0 7,0
M14 1 100 16 11,0 9,0
M14 1,25 100 16 11,0 9,0
M14 1,5 100 16 11,0 9,0
M16 1 100 18 12,0 9,0
M16 1,5 100 18 12,0 9,0
M18 1,5 110 20 14,0 11,0
M20 1 125 22 16,0 12,0
M20 1,5 125 22 16,0 12,0
M22 1,5 125 25 18,0 14,5
M24 1,5 140 25 18,0 14,5
M28 1,5 140 25 20,0 16,0
M30 1,5 150 25 22,0 18,0
○ Ask Price and Deadline.

3. Application:

Used for short screw -in length in through and blind hole. Suitable for threading in low-alloyed steels, cast, nodular cast iron, tempered, cast and the other metals.

Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine

4. Packing and Deliver:

Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine

Fast Manual Spiral Flute Tap DIN 374 6H Precision For CNC Lathe Machine

5. Why choose us:

1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.

2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.

3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.

4. Product : We have confidence in the quality of our products.and the product prices are also competitive.

6. FAQ:

Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.

Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.

Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.


Q4: What is your MOQ?
A4: 500 pcs

Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.

100% protection for product quality, on-time shipment and payment

Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.

Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
