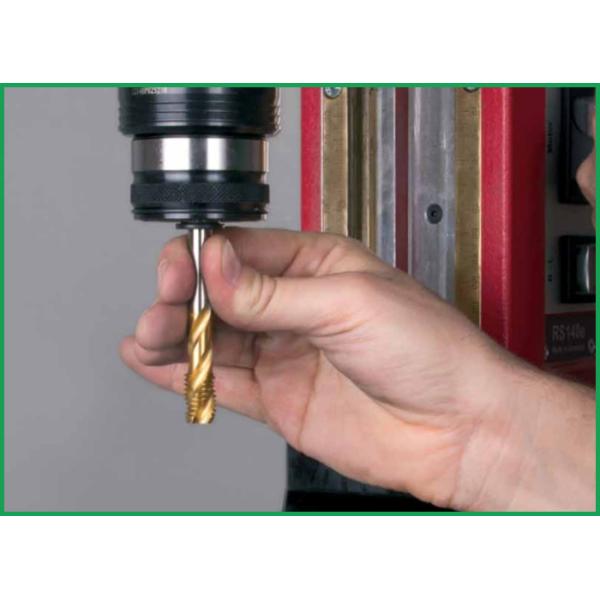

Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color
Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color
Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color
Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color
Specifications
Brand Name :
STARRY
Model Number :
M3-M30
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
15000pcs per day
Delivery Time :
35days
Packaging Details :
plastic box
Material :
HSS-4341;HSS-M2;HSS-M35
Type :
tap
Surface :
Tin coated
Standard :
DIN376
Precision :
6H
Application :
Manual Tapping , Thread Tapping
Flute :
Spiral flute
Description
Chamfer type B, 4 - 5 threads with progressive tap and interrupted threads
Operation method Threading machine,CNC lathe,Milling and drilling machine,Lathe

1. Product Description

Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color

Product Name

DIN376 SPIRAL FLUTE TAPS

Material

High Speed Steel 4341 6542 M35 and so on

Hardness

HRC62-66

Surface treatment

Tin coated(We can supply differenk kinds surface treatment to you )
Chamfer type B, 4 - 5 threads with progressive tap and interrupted threads

Operation method

Threading machine,CNC lathe,Milling and drilling machine,Lathe

Application

Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.These taps discharge chips through the hole.

2. size

Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color

d1 p L1 L2 d2 k
mm (pitch) mm mm mm (h12)
mm
M3 0,5 56 10 2,2 -
M4 0,7 63 12 2,8 2,1
M5 0,8 70 14 3,5 2,7
M6 1 80 16 4,5 3,4
M8 1,25 90 18 6,0 4,9
M10 1,5 100 20 7,0 5,5
M12 1,75 110 24 9,0 7,0
M14 2 110 26 11,0 9,0
M16 2 110 28 12,0 9,0
M18 2,5 125 30 14,0 11,0
M20 2,5 140 32 16,0 12,0
M22 2,5 140 32 18,0 14,5
M24 3 160 34 18,0 14,5
M27 3 160 38 20,0 16,0
M30 3,5 180 45 22,0 18,0

3. Application:

Used for short screw -in length in through and blind hole. Suitable for threading in low-alloyed steels, cast, nodular cast iron, tempered, cast and the other metals.

Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color

4. Packing and Deliver:


Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color

Thread Tapping Spiral Flute Tap HRC62 - 66 Hardness Customized Size / Color

5. Why choose us:

1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.
2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.
3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.
4. Product : We have confidence in the quality of our products.and the product prices are also competitive.

6. FAQ:

Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.
Q4: What is your MOQ?
A4: 500 pcs
Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.
100% protection for product quality, on-time shipment and payment

Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.
Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
