Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Specifications
Place of Origin :
Henan, China
Shape :
Brick
Material :
graphite
SiO2 Content (%) :
~
Al2O3 Content (%) :
~
MgO Content (%) :
~
CaO Content (%) :
~
Refractoriness (Degree) :
1770°< Refractoriness< 2000°
CrO Content (%) :
~
SiC Content (%) :
~
Model Number :
customization
Brand Name :
hongtai
Processing Service :
Cutting
Product name :
Graphitized Furnace Bottom Carbon Brick for Aluminum Cell
Application :
Blast Furnace
Color :
Black
Certificate :
ISO9001:2008
Sample :
Sample Provided
Package :
Wooden Pallet
Apparent porosity/% :
20-25
Ash :
0.5%
Fixed Carbon :
99%
Thermal conductivity(w/mk) :
80-100%
Packaging Details :
1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.
Supply Ability :
3000 Ton/Tons per Month
MOQ :
1000 kilograms
Price :
$0.80 - $2.50/kilograms
Description
Product Description

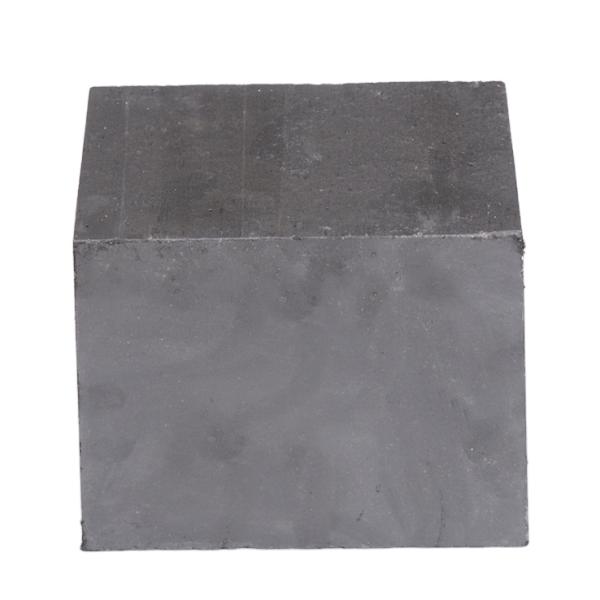

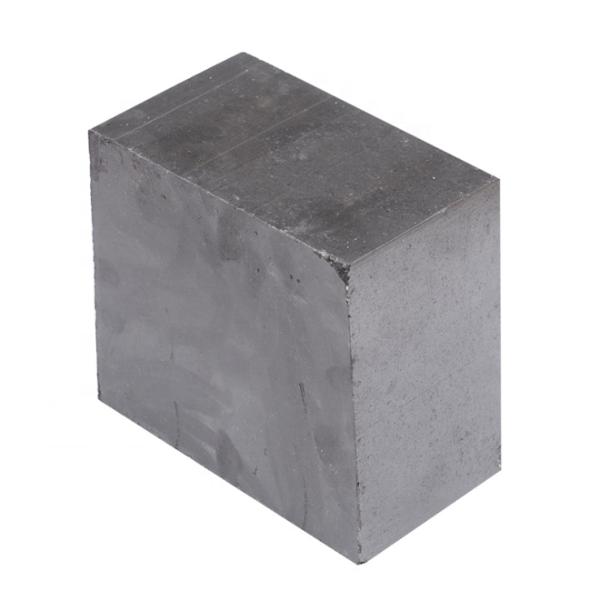

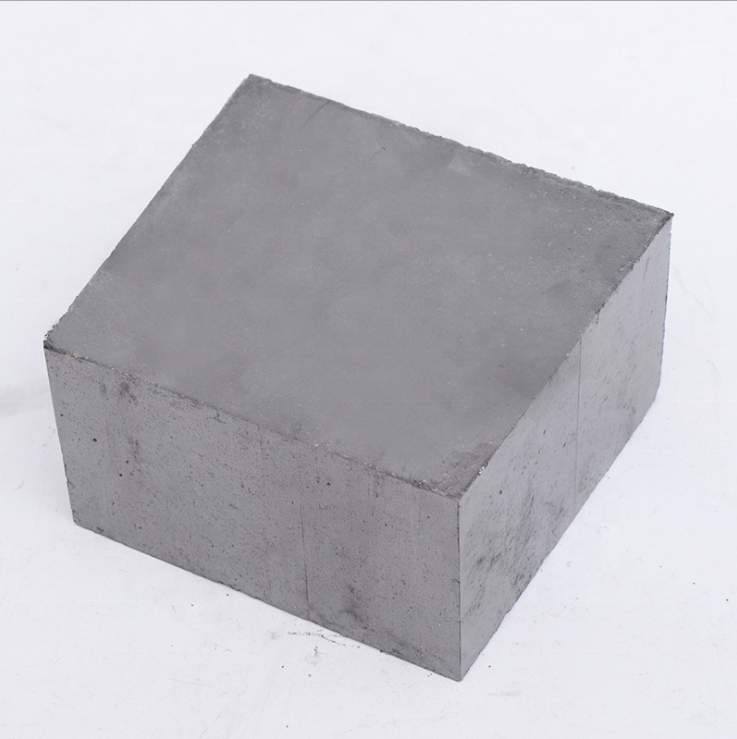

Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace are made of coke, anthracite or graphite and tar as raw materials, Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace are mixed, shaped, and burned to 1450°C in a reducing flame. The carbon content is 88-90%,Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace can withstand the erosion of molten metal and various molten slags, but is easy to oxidize.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
The general technical requirements of Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace are carbon content ≥92%; mechanical strength ≥25Mpa; ash content ≤8%. Strict requirements on external dimensions, general products require certain mechanical processing.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Specification


Features of Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace:
1.High Refractories
2.High Compressive Strength
3.High Refractories Under Load
4.Good Anti-Slag Performance
5.Good wear-resistant performance
6.Not corroded by slag & iron
7.Small expansion coefficient
8.Good thermal conductivity
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Type
Sintered carbon brick
Free sintered carbon brick
HT-A
HT-B
HT-C
HT-60
Al2O3/%,≥
65
60
55
60
C/%,≥
11
11
9
≥20
SiC/%,≥
--
--
--
Fe2O3/%,≤
1.5
1.5
1.5
--
Bulk density(g/cm3),≥
2.85
2.65
2.55
2.80
RUL，0.2MPa，℃（≥）
1650
1650
1600
1700
AP/%,≤
16
17
18
8
CCS /Mpa,≥
70
60
50
45
Thermal Conductivity(0-800℃）W/m.K
≥13
≥13
≥13
--
Application
Application of Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace
Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace are not only widely used in the metallurgical industry, but also in aluminum electrolytic cells. In addition, Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace is widely used in pickling tanks and electroplating tanks in the electroplating industry, dissolution tanks in the paper industry, reaction tanks and storage tanks in the chemical industry, autoclaves in the petrochemical industry, ferroalloy industrial furnaces (or equipment linings), acid solutions , Lye tank lining and pipeline, and smelting non-ferrous metals (such as aluminum, lead, tin, etc.) furnace lining.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Packing & Delivery
Packing detail of Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace:
1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Shipping Detail of Graphitized Furnace Bottom Carbon Brick for Aluminum Cell, Ferro Silicon Furnace:
1.The sample willl be send by International expresses FEDEX/DHL/UPS/TNT.
2.The goods are transport by shipping.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Company Profile
Henan Hongtai Kiln Refractory Co., Ltd. is established in 2002, located in Xinmi City, 40kilometers southwest of Zhengzhou City in Henan Province, close to Jingguang, Longhai railway lines, with road transport facilities. Rich resources of Refractory materials,adequate and qualified fuel in this area, provide unique conditions for refractory production, shipping and refractory industry development. Main products include different kinds of refractory brick:Fire Clay Brick, High Alumina Brick, Light Weight Insulating Brick,Corundum Brick,Mullite Brick,AZS Bricks, Refractory Balls ,Refractory concrete,refractory castable,Acid resistant brick etc.They are widely used in Iron and steel, Nonferrous metals, Building materials(Cement,Glass,Ceramic), Petrochemical, Energy & Incineration etc industries. Our products have been exported to India,Turkey,Vietnam,Malaysia and Kazakhstan etc.“Science-Technology Innovation, Cooperation for Win-Win”
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
Our Service:
1. ISO 9001 certified Chinese supplier
2. Provide product search, offer, quality control, warehousing, international logistics, etc one-stop service
3. Offer customization product and all-around product application programs according to customers' requirement
4. Supply FREE sample and accept small orders
5. Alternative Packages
6. Operated by in professional teams, offer quality after-sales service and technical support.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
FAQ
1.What's your payment terms?
Various payment will be supported
2.What's your delivery time?
Usually within 15-30 days after receive the deposit.
3.How about the packing?
25 kg/bag,outer woven bags with inner plastic lining.
4.What documents you provide?
Usually, we provide Commercial Invoice, Packing List, Bill of lading, COA , TDS. etc.If your markets have any special
requirements, let us know.
5.How about the validity of the products?
According to the products you ordered.
6.What is loading port?
Usually isTianjin, Shanghai or Qingdao,Dalian,Ningbo,Chinese ports.
Graphitized Carbon Brick for Aluminum Cell and Ferro Silicon Furnace CaO Content Cutting
