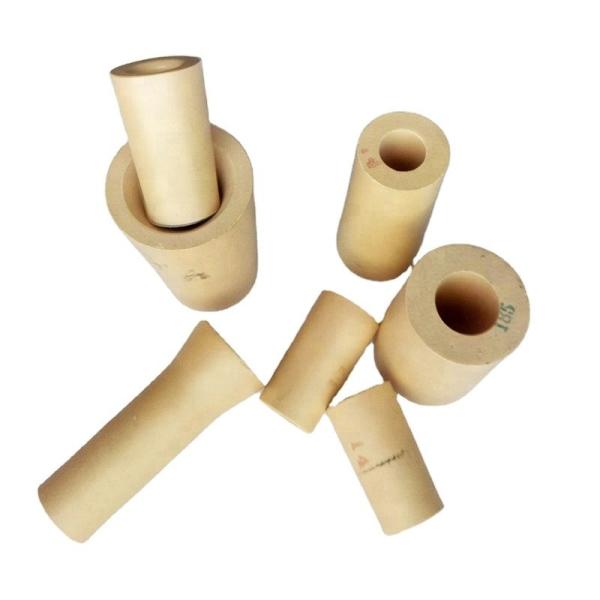

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle
Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle
Specifications
Place of Origin :
Henan, China
Shape :
PIPE
Material :
Zinconia
SiO2 Content (%) :
≤0.4
Al2O3 Content (%) :
≤0.2
MgO Content (%) :
little
CaO Content (%) :
0.01
Refractoriness (Degree) :
1770°< Refractoriness< 2000°
CrO Content (%) :
0.002%
SiC Content (%) :
little
Model Number :
EAF,ladle small Size ZrO2 Slide Gate Plate Insert
Brand Name :
HongTai
Product name :
Zironia Insert
Size :
Customers' Requirement
Type :
Factory
bulk density :
5.45~5.60g/cm3
Apparent porosity % ≤ :
10~22
Zr(Hf)O2 % ≥ :
70~95
Application :
billet con-casting system
OEM :
YES
Sample :
Freely
Certificate :
ISO9001:2008
Packaging Details :
EAF,ladle small Size ZrO2 Slide Gate Plate Insert packaging:
1. Wooden case (Seaworthy standard packing)
2. Pallets (Seaworthy standard packing)
3. Further packing information based on customer's requirements
Supply Ability :
10000 Piece/Pieces per Day EAF,ladle small Size ZrO2 Slide Gate Plate Insert
MOQ :
500 pieces
Price :
$0.50 - $5.00/pieces
Description
Product Description

China refractory manufacturer factory supply zirconia insert EAF ladle Slide Gate Plate tundish nozzle ZrO2 Insert

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish NozzleBillet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle

We are zirconia insert ceramic side gate plate & ring manufacturer in China .To bring down production cost and increase steel finished rate, fulfill demand of production of clean steel, high casting speed and near net shape CC development of clean steel, long working life of tundish, we have developed andmanufacturing Super Hi-Temp (1800^-2700^0), High purity and density, composite ceramic products.They have High purity, high density features, high temp, resistance, strong crushing and erosion resistance of slag and steel liquid, high thermal shock and anti-peeling resistance. Under harsh application environment, higher use of security and reliability, longer-working life etc. Features. They are widely used on the device of controlling steel liquid flowing at the bottom of ladle (tundish), slide gate plate in slag stopping system at the tapping hole of converters, High-erosion steel casting, small billet CCS, PD, Special alloy melting, Metal powder sintering, Synthetic Crystals etc. Industries.


According to the different requirement of different clients for the qualities, we take the different stabilizers and grains combination, our ZrO2 ceramic side gate plate & ring have higher density, excellent high temperature erosion, crushing of metal liquids, and thermal shock stability.

Technical Data

China refractory manufacturer factory supply zirconia insert EAF ladle Slide Gate Plate tundish nozzle ZrO2 Insert

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle

ZrO2 zirconia insert ceramic side gate plate & ring

Model No.

ZrO2+HfO2(%)

Al2O3(%)

SiO2(%)

MgO(%)

Fe2O3(%)

TiO2(%)

Density(g/cm3)

HT-PMO1

≥95

≤0.2

≤0.4

≤2.9

≤0.1

≤0.1

5.35-5.45

HT-PMD

95-96

≤0.2

≤0.4

≤2.9

≤0.1

≤0.1
Features

China refractory manufacturer factory supply zirconia insert EAF ladle Slide Gate Plate tundish nozzle ZrO2 Insert

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle

ZrO2 insert ceramic side gate plate Features:
Long casting sequence time
Controlled casting speed
Excellent resistance to oxidation
Prevent clogging to improve productivity
Special compositions of nozzles as per use in the industry
Higher life of nozzles

Applications

China refractory manufacturer factory supply zirconia insert EAF ladle Slide Gate Plate tundish nozzle ZrO2 Insert

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle

Applications of the ZrO2 insert ceramic side gate plate :

Mainly used in powder metallurgy, ferrous and non-ferrous powder smelts, such as copper powder, nickel based alloy powder, stainless steel powder, iron powder and other super alloy powder, etc.
According to the different requirement of different clients for the qualities, we take the different stabilizers and grains combination, our atomizing nozzles have higher density, excellent high temperature erosion, crushing of metal liquids, and thermal shock stability.
We can produce various shapes and sizes atomizing nozzle, and individually according to clients' demand.

packing & Shipping

Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle

Packaging of ZrO2 insert ceramic side gate plate

• different types of wood pallets and wooden case
• pallet with PE membrance and paper angel

Shipping of ZrO2 insert ceramic side gate plate

1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.

Our Services

EAF ladle small Size Slide Gate Plate ZrO2 InsertChina refractory manufacturer factory supply zirconia insert EAF ladle Slide Gate Plate tundish nozzle ZrO2 Insert

PRE-SALES CONSULATATION

We are not only provide products,but also the use and the design of products in the kiln.We salesman are all professional experts who can give you proposals,make your energy-saving more simple.

SAMPLE SERVICE

We can provide free sample for your testing before placing orders.

PACKING

We have our own sea-worthy packing which can meet needs for mostof our clients.However,if you have spcific packing requiments,please send you reqiuments to us ,we can use your packing.

DELIVERY

We will provide surpervision on each batch of goods with report and photos.Proper logsitic method is available for different kind of products.

AFTER-SALES SERVICE

We will follow-up your response after the shipmens. If there is a complaint, we will give a proper settlement in 2 working days!

FAQ
EAF ladle small Size Slide Gate Plate ZrO2 Insert Billet Con-Casting System Zirconia Insert for EAF Ladle Slide Gate Plate Tundish Nozzle
