Specifications
Place of Origin :
Henan, China
Shape :
Plate, Plate
Material :
Silicon Carbide (SiC)
SiO2 Content (%) :
~
Al2O3 Content (%) :
~
MgO Content (%) :
~
CaO Content (%) :
~
Refractoriness (Degree) :
Common (1580°< Refractoriness< 1770°)
CrO Content (%) :
~
SiC Content (%) :
>70%
Brand Name :
Hongtai

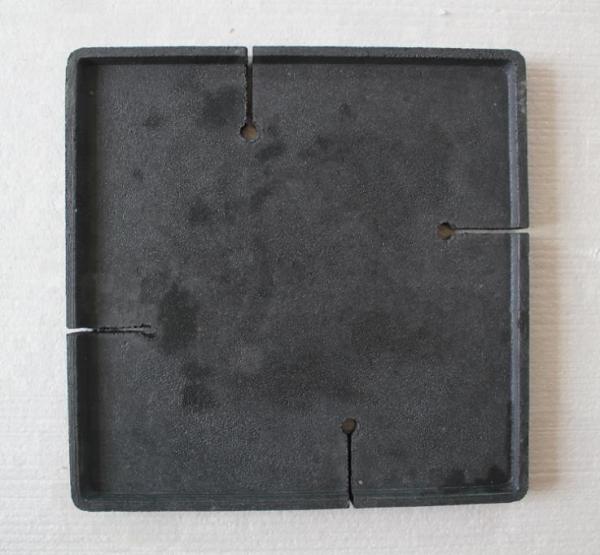

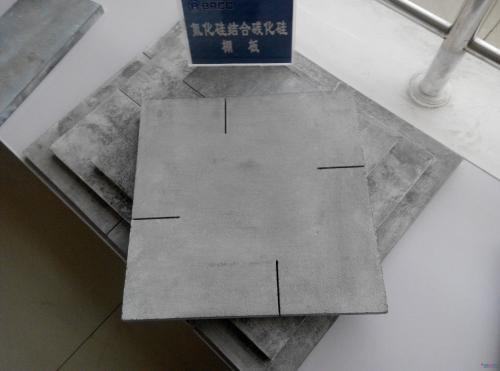

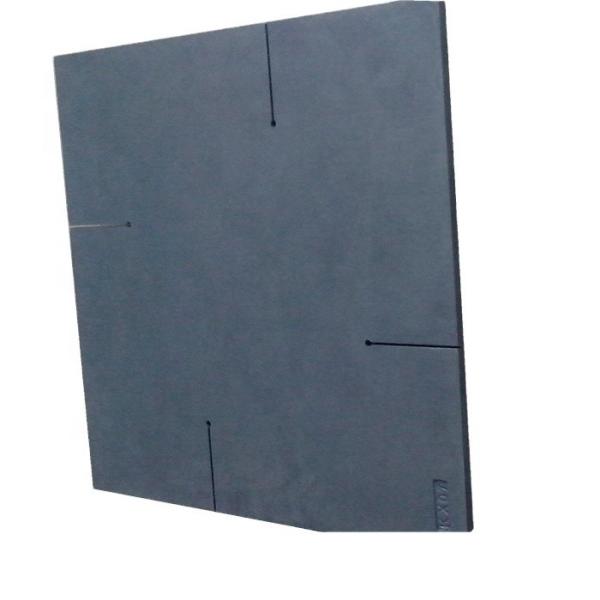

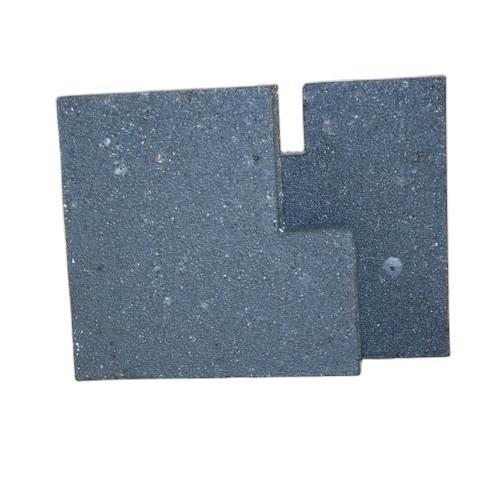

Product name :
Silicon Carbide Plate
Size :
Customized Size
Color :
Black
Bulk density g/cm3 :
>2.6
Cold Crush Strength MPa :
>40
APPARENT POROSITY :
<18
Refractory under load (RUL) :
>1700
Price :
$300.00 - $1,000.00/tons
Description
Product Description

factories of refractories silicon carbide plates refractory board

Silicon carbide products with high strength, high hardness, high wear resistance, high temperature resistance, corrosion resistance, oxidation resistance, and good thermal shock resistance, thermal conductivity, and heat-resistant and anti-radical quenching high-temperature creep .
Silicon Carbide parts are widely used in daily-use ceramics, sanitary ware, electrical porcelain, magnetic materials, crystallite glass, industrial furnace, flue gas desulfurization, automobiles, water pump, boiler, petroleum, metallurgical, chemical, mechanical, aerospace, military and other fields.

Chemical and Physical index of silicon carbide plate:

Main Performance Index of Silicon Carbide(SiC)

Item

Unit

SiC

SSiC

Purity

%

≥90

≥98

Density

g/cm3

3.05

3.1

Shore Hardness

HS

110-125

120-130

Elastic Modulus

Mpa

4.12x105

4.10 x 10s

Poisson Ratio

0.15

0.16

Tensile Strength

Mpa

2.75 x102

2.8 x 102

Bending Strength

Mpa

4.41 x102

4.9 x 102

Compression Strength

Mpa

2.94 x103

3.0 x 103

Thermal Conductivity

W/m.k

141 (W/m.k)

147(W/m.k)

Coefficient ofThermal Expansion

l/ºC

4.3x10-6

4.0 x 10-6

Heat Resistance

1600C

165CTC

Thermal Impact Coefficient

cal/cm.sec

46.5

200

Acid Resistance

5 times higher than the usual TC

Resist al chemical media
