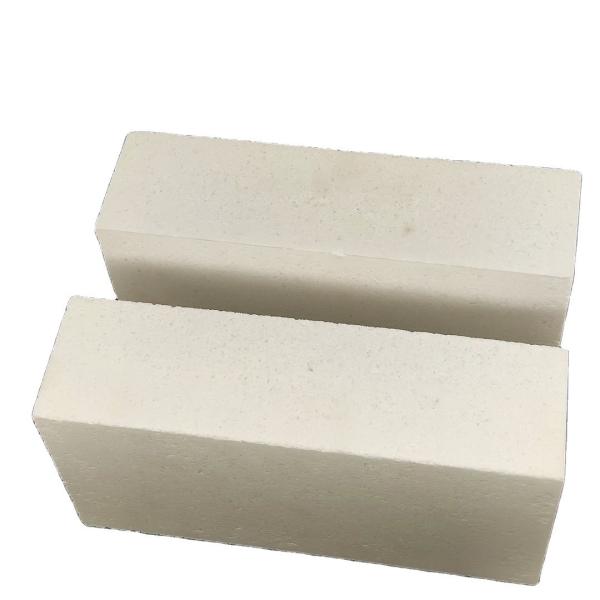

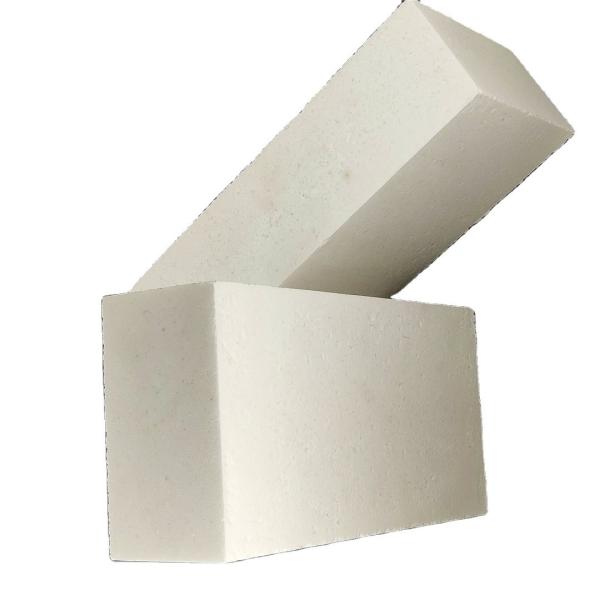

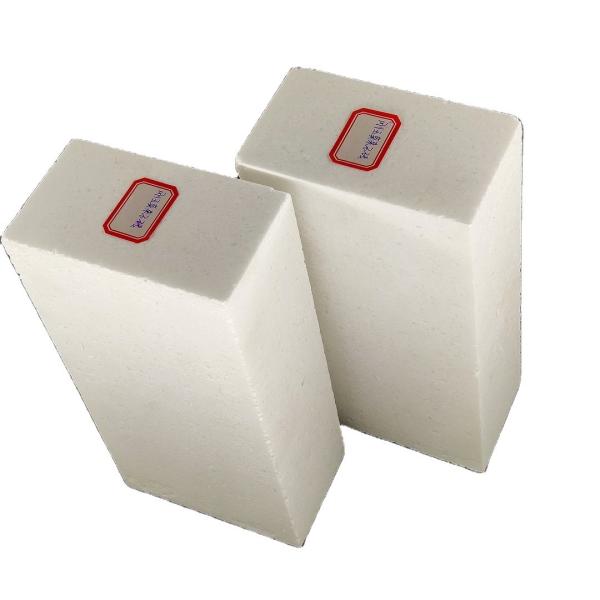

Corundum Mullite Brick for Petrochemical Industries and Ammonia Production Facilities

Specifications

Place of Origin :

Henan, China

Shape :

Brick

Material :

Mullite

SiO2 Content (%) :

8-18

Al2O3 Content (%) :

80-90

MgO Content (%) :

0.8-1.2

CaO Content (%) :

Max 0.03

Refractoriness (Degree) :

Common (1580°< Refractoriness< 1770°)

CrO Content (%) :

0.01

SiC Content (%) :

0.1-1.4

Model Number :

MAG80, MAG85, MAG88

Brand Name :

Hongtai

Processing Service :

Punching, Cutting, Moulding

Fe2O3 :

0.5% Max

Product name :

Corundum Mullite Brick

Application :

Industrial Furnaces

Color :

White

Apparent porosity/% :

16%~18%

Cold Crush Strength :

>80Mpa

Bulk Density(g/cm3) :

2.7-2.9g/cm3

Size :

Customized Size

Usage :

Furnace Liner

Certificate :

ISO9001:2008

Packaging Details :

1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons, max 2.0 Tons.
(3

Supply Ability :

3000 Ton/Tons per Month

MOQ :

2 tons

Price :

$1,000.00 - $2,000.00/tons

Description

Product Description

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

Corundum mullite brick (corundum-mullite brick) refers to a high-alumina refractory product composed of main crystal phases of corundum and mullite. The crystals of corundum are short columnar and barrel-shaped, and they are not interspersed or staggered in the refractory structure. Interlaced columnar crystals of mullite are embedded between the corundum crystals to effectively prevent the slip of the corundum crystals and obtain a stable structure. Because the crystal structure is more stable, it is more conducive to the excellent performance of mullite or mullite and corundum, such as melting point: mullite 1870℃, corundum 2050℃, the eutectic temperature of the two is higher, 1840℃, which is beneficial Improvement and enhancement of high temperature performance of materials.

Corundum mullite bricks refer to refractory products made of high-purity or relatively pure raw materials. The presence of low melting point oxide impurities will reduce its high temperature performance. Use industrial alumina powder and pure clay, bauxite or silica as raw materials to synthesize pure mullite raw materials, especially the content of alkali metal oxides should be as low as possible. Products made with mullite aggregates as aggregates have good thermal shock resistance but poor erosion resistance. Products made with corundum sand as aggregate have good corrosion resistance but poor thermal shock resistance.

Corundum mullite bricks are made of corundum and mullite as main raw materials, and are fired at high temperature in an oxidizing atmosphere by adding appropriate amounts of alumina, silica ultrafine powder and additives. The content of AL2O3 is 80%~90%.

Could used in Petrochemical industry, materials for synthetic ammonia furnaces and magnetic materials gas furnaces, materials for supporting facilities of high-temperature industrial kilns.

Specification

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

Corundum mullite brick properties: It has good high temperature strength, high temperature creep resistance, thermal shock resistance and corrosion resistance. The physical and chemical properties of a typical corundum-mullite brick are: Al2O3>85%, Fe2O3 0.45%, apparent porosity 19%, normal temperature compressive strength greater than 55MPa, load softening temperature greater than 1700°C, heating line changes (1600°C, 3h) -0.1%, thermal shock resistance (1100℃ water cooling) greater than 30 times.

Advantages and characteristics of corundum mullite bricks (1) High temperature resistance, high refractory temperature and high load softening temperature. (2) Chemical resistance, strong resistance to acid solution or molten slag. (3) Antioxidant. It is not easy to react with O2, H2, CO and other gases. (4) Good thermal stability, stable volume at high temperature, not easy to expand or shrink. (5) Good thermal shock resistance, resistance to rapid cold and heat, and not easy to peel off. (6) High compressive strength at room temperature, and it is not easy to wear when handling or unloading.

Items	Index
AL2O3 ,% ≥	70	80	85
Apparent porosity ,% ≤	18	18	18
Cold crushing strength,MPa ≥	60	70	70
Refractoriness under load,ºC ,(0.2MPa,0.6%)≥	1600	1650	1700
Long-term working temperature,ºC	1550	1600	1650
Linear change after heating,% (1500ºC×3h)	±0.20	±0.20	±0.20
2.6Bulk density ,g/cm3 ≥	2.6	2.8	2.9
Fe2O3 ,% ≤	0.8	0.5	0.15

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

Straight size:230×114×65 230×114×75 230×57×65
Split size: 230×114×32 230×114×40 230×114×25 230×114×50
Arch/Wedge size: 230×114×65/45 230×114×65/55 230×114×75/45 230×114×75/55 230×114×75/65
Tile size: 230×230×38 230×230×50 230×230×65 230×230×75
Other size: Key brick, Skew brick, Soap, Checker, Neck, Taper
Also produce corundum mullite bricks according to customers' needs

Manufacturing Technique

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

1.The corundum mullite brick Production Process
Crushing→Mixing→Shaping→Drying→Firing→Inspection→Packaging and Shipment

Synthetic mullite is usually used to make corundum-mullite bricks. Mullite particles can be used as aggregates, α-Al2O3 powder can be used as powder, and fused or sintered corundum particles can also be used as aggregates and synthetic mullite powder. For powder. Aggregate and powder are blended according to a certain ratio and particle size gradation, and sulfite pulp waste liquid is used as a binding agent, and the materials are added in a certain order, fully mixed and uniform, and formed by friction brick press or hydraulic brick press. After the bricks are dried, they are fired at 1650-1750°C.

Some use fused or sintered corundum sand as aggregate, and use bauxite or clay mixed fine powder with high α-Al2O3 composition ratio of mullite or corundum-mullite as powder to make bricks. Products made by this process are slightly less dense, so this process is not widely used.

2.The corundum mullite brick Quality Assurance
HongTai Refractory is committed to high quality standards for all its products and services. With its thirst on State of the art technology at every level and a wide range of products, HongTai Refractory can provide ideal solutions for the stringent requirement of the customer. Backed by decade of experience in different industries, and close association with customers,HongTai Refractory will always bring new products which will give better life and value to the user.

The quality assurance system consists of the following steps:
1. Inspection and Control of incoming raw materials:According to the chemical content,raw materials are classified into different levels to ensure quality of brick first.
2. Inspection and process control:During the production, each brick weight twice to reduce weight error.
3. Inspection of product Standardization of quality of each product by process control and experimentation.
4. Taking corrective measures whenever deviations are noted.

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

Iron & steel making industry: Blast furnace,hot blast furnace(stove);
Building materials industry: glass kiln,ceramic kiln,kiln car,tunnel kiln,rotary kiln
Energy&Incineration: electric furnace;
Others: Petrochemical industry furnace.

Packing & Delivery

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

Packaging for Corundum mullite brick
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons, max 2.0 Tons.
(3)20 Foot Container can be loaded max 25-26Tons, about 13-16Pallets.
2.Can make the package according to customer's requirements.

Shipping for Corundum mullite brick
1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time of Corundum mullite brick:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10days for in stock bricks from ordering shipping space to deliver goods and within 20-30 days for NO in stock bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
Others
MOQ: Usually 1 container, MOQ 1Tons, Customers can order certain PCS for special brick.

Company Profile

Henan hongtai kiln refractory co., LTD. Is well aware that there are thousands of demands from customers, which can be summarized in four aspects: reliable quality, timely delivery, reasonable price and considerate service.The company will continue to adhere to the corporate spirit of "contributing to society and serving customers" and the business philosophy of "mutual benefit, win-win, integrity, efficiency, preciseness and responsibility".Our company is willing to develop a wide range of technical exchanges with colleges and universities and colleagues from all walks of life at home and abroad in a flexible and diversified way.

Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, silica brick, fused zirconium corundum brick, magnesia brick, carbon brick, corundum mullite brick, fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.

Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management,
strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.

China refractory Manufacturer Corundum Mullite Brick for petrochemical industries and synthetic ammonia furnaces

1. Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractorys production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3. Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, South Korea, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester Bulk Density Tester The Pressure Tester Refractoriness Tester

Customer Photos

Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Malaysia, Germany, Italy, Mongolia, Russia, Argentina, Colombia, Egypt, South Africa and etc.
We has 20 years experience on producing Corundum Mullite Brick.
Payment Guarantee: If couldn't trust us at first order, could use trade Assurance.

Jerry Li

Cell&WhatsApp: 0086-13373957739
Email: jerry(at)ht-refractory.com
