Aluminium building cladding

Basic Info.

Trademark: Huabond

Model NO.:H-S114

Specification: Thickness is 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm etc.
Size(max): 1600mmx4500mm(flat sheet)

Application: It is mostly applied for big area such as supermarkets, banks, hospitals, exhibition halls and so on.

Packing with protect film and standard export plywood crate
Specification: Aluminum Curtain Wall/Facade

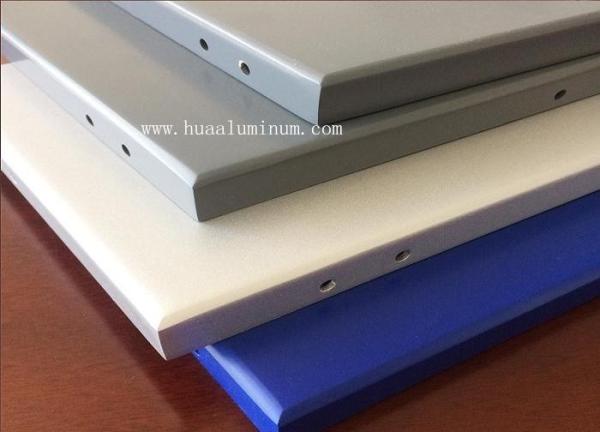

Aluminum Solid Panel for Facade

Delivery time: 18-22days after payment
Color: The coating includes fluorocarbon and polyester, you can choose the color from our color chart, or you can choose from the international RAL color chart, ordinary color chart or color sample.
Shape: Upon request, including flat, arc, bow and other special shapes
HS Code: 7606 1290

Transport Package: Wood Boxes

Origin: Hunan, China

Features:
1. Light weight, high strength and rigidity
2. Excellent weather resistance and anti-corrosion
3. Good processing capacity, able to be shaped into flat, arc, globe etc.
4. Various colors, good decoration effects
5. Easy to be cleaned and maintained
6. Easy and quick in installation
7. Environmental-friendly, able to be recycled

HUABOND brand aluminum panel is mainly used alloy 1100 series, 3003 series, 5005 series as raw materials from global well-known suppliers.
It is in light weight, good rigidity, and high strength;
It has good weathering resistance;
It is easy to process and weld, can be processed complex shape such as flat panel, curve panel, twist panel, etc.
It has many colors to choose to make good embellishing effects.
It has good stain resistance, it is easy to clean and maintain; easy to assemble and can be recycled, conducive to environmental protection.

*Scopes of Application

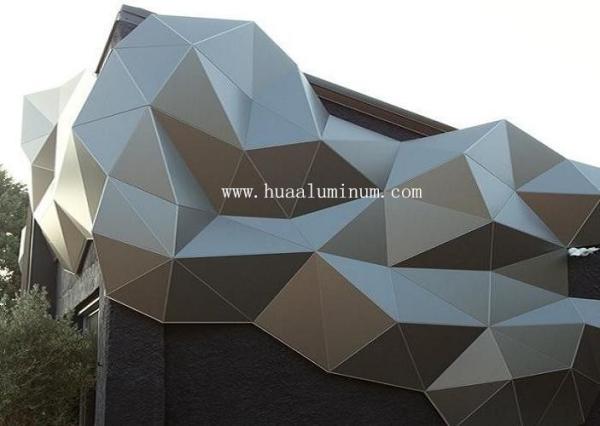

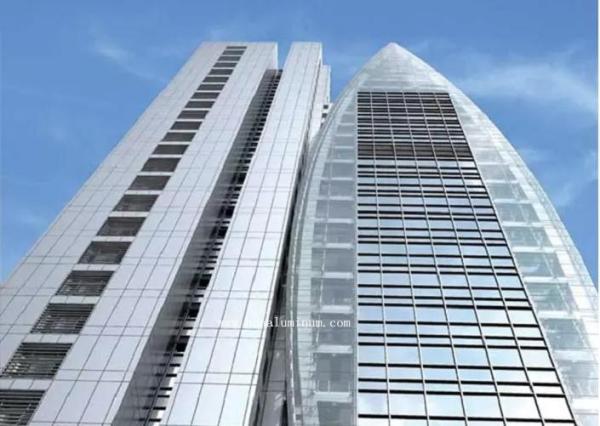

1) Aluminum façade, Aluminum Cladding, Exterior Wall Decoration.
2) Interior Wall Decoration, Column cladding
3) Passageway, elevator, shop front decoration, advertisement boards.
4) Ceiling and so on.
5) With complicated shape such as pagoda, difficult to get dirt, easy for maintenance and caring.
6) Wide color selection, ultra good decoration effect;
7) Easy to be recycled, with no pollution, good for sustainable development and saving the earth.

ISO 9001, ISO14001, ISO18001:

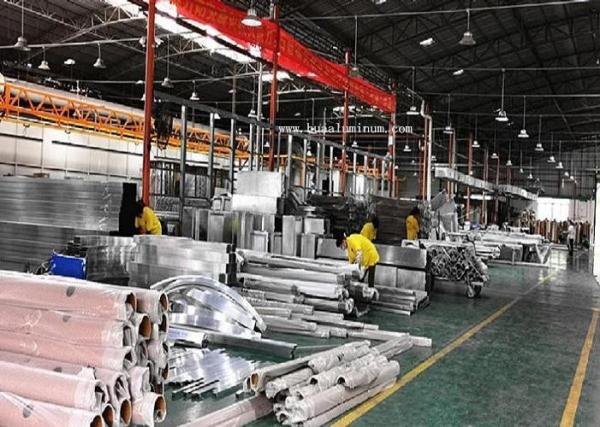

Production process of aluminum panel

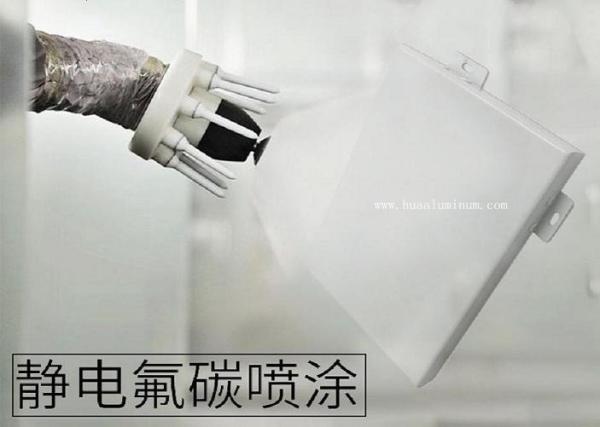

01. Project design → 02. Cellular drawing → 03. Word out procedures → 04. Plate check → 05. Plate banking → 06. Contour and punch → 07. Pressure bend → 08. Abnormal shape machining → 09. Angling & sealing weld → 10. Rim angle trimming & loader installation → 11. Stud welding reinforcement → 12. Surface polish → 13. Drug test → 14. Clean & chromium → 15. Electrostatic spray → 16. Quality inspection → 17. Film pasting & packing

Product Description:

Product Introduction
HUABOND® aluminum curtain wall panels and pre-fabricated panels utilizes internationally recognized AA3003/H14-H24 aluminum compounds. These panels are pre-fabricated at our plant to your exact specifications.
