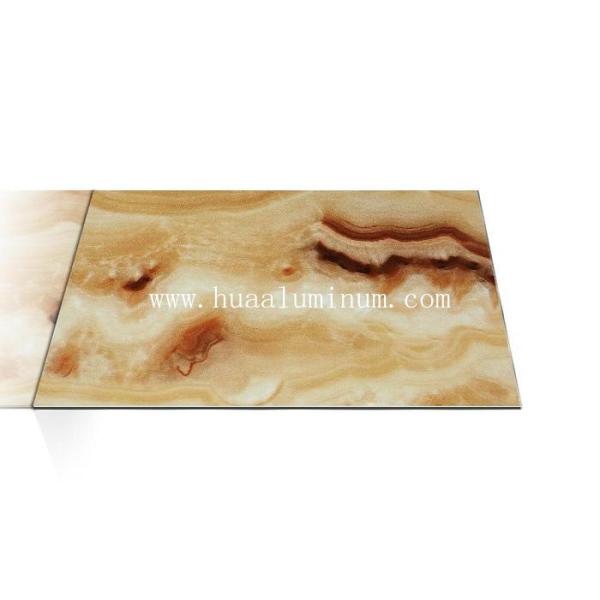

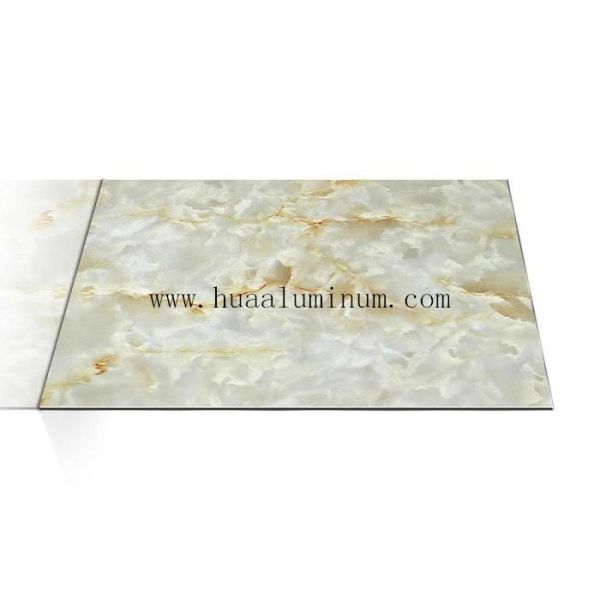

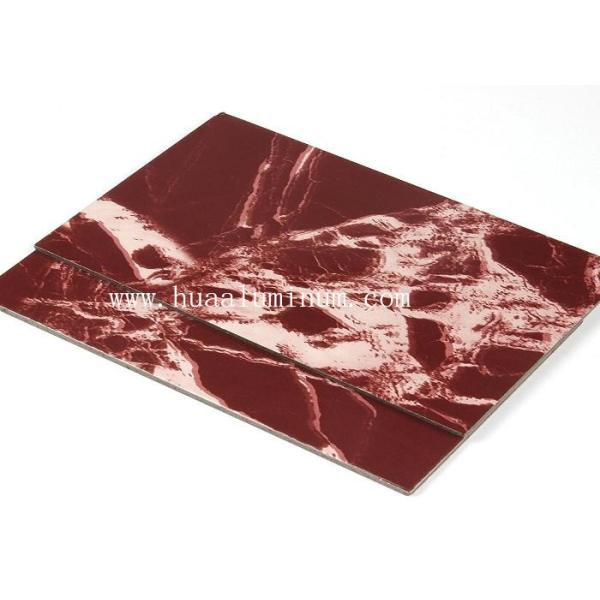

Granite Stone aluminum composite sheet

Quick Details

Place of Origin: Hunan, China

Brand Name: Huabond

Model Number: SO10XX

Usage: Outdoor

Function: Anti-Static, Antibacterial, Fireproof

Surface Treatment: Brushed, Mirror, PE Coated, PVDF Coated

Panel thickness: 2mm-6mm

Width: 1220mm, 1250mm, 1500mm

Length: 2440mm(according to your request)

Aluminium thickness: 0.05mm-0.6mm

Standard size: 1220mm*2440mm

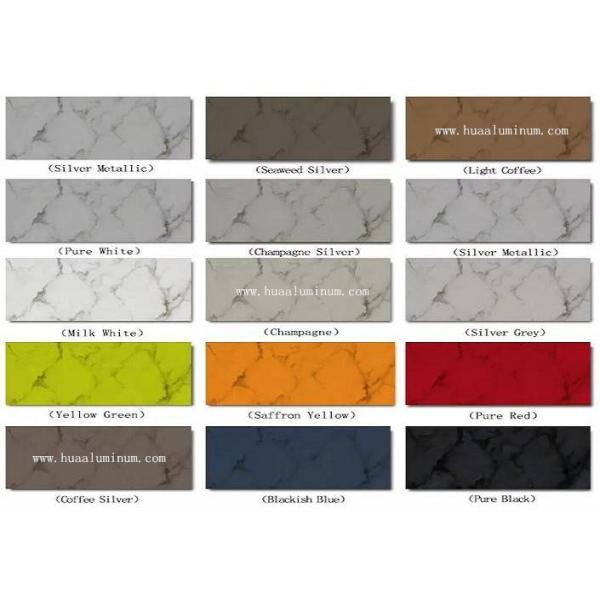

Color: Many kinds of colors meet your request

Supply Ability: 15000 Square Meter/ Per Day

Packaging Details: Standard export packing & as customers' requirements

Port: Shanghai

Lead time: 18-22 days after 30% T/T payment or receiving L/C

Specifications

1. Fireproof
2.Easy to maintain
3.Weather resistance
4.Excellent impact resistance
5.Uniform coating and multicolor

Huabond High Strength

Granite ACP / Granite texture aluminum composite panel

/ Granite ACP panel

ACP Aluminum granite/stone Look Wall Cladding Sheets Aluminum Composite Panel:

Product Description

PVDF/PE Granite/ Marble vein aluminum composite Panel for decoration

1) Material:

A) Front: aluminum alloy sheet coated fluorocarbon resin (PVDF) with Nano lacquer

B) Core: nontoxic low density polyethylene

C) Back: aluminum alloy sheet coated with polyester resin painting

D) Surface coating thickness: 32μ±1μ

E) Aluminium alloy: 3003 H24

F) Sheet thickness: 0.3mm, 0.4mm, 0.5mm

2) Dimensions

A) Thickness: 3mm,4mm,6mm,8mm,10mm

B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)

C) Length: 2440mm,3050mm,3200mm(max:6000mm)

D) Weight: 5.5kg/sqm based on 0.5/4mm thickness

E) Standard size: 1220*2440mm

F) Qty/20'fcl: 4mm/2380sqm; 3mm/2977sqm

G) Non-standard size is available according to requirement

3) Standard:

A) West Europe standard (Germany DIN Standard);

B) The EAST Europe standard (Russian standard);

C) The common wealth standard (U.K BS Standard);

D) The North America ASTM standard;

4)HUABOND® ACP compared with different products( Lightness / Rigidity ):

The composite structure of HUABOND® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes HUABOND® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity

5) HUABOND® ACP compared with solid aluminium:

Required thickness and actual weights of panels with same rigidity

6) HUABOND® ACP Physical Properties for Panel:

Structure:

· Protective film to protect panel surface

· PE/PVDF coating with clean or colors applied on aluminium sheet

· Polymeric membrane composites the aluminium onto core

· LDPE/FR core is made from low density polyethylene or fireproof grade materials

Specification:

>>FAQ

Q1.What is your MOQ, Delivery Time, Warranty, Payment, Production capacity?
A1:1. MOQ (Minimum Order Quantity): 600 m2 PE coating common colors; 1000 m2 PVDF coating and special colors.
2. Delivery Time: within 10 to 15 days after contract confirmed and deposit payment received.
3. Warranty: PVDF KY coating – 15 years for outside use; Polyester (PE) coating –5 years for outside use, 10 years for inside use.
4. Payment: 30% TT in advance, 70% see copy of BL.
5. Production Capacity: 37,507 m2 per day basic on 1220 * 2440mm 3mm thickness.

Q2.Do you have any test certificates?
A2: Yes, stable good quality is a key for long time business cooperation.
Factory has passed ISO9001: 2008 QUALITY SYSTEMS; ISO14001: 2004 ENVIRONMENTAL SYSTEMS; OHSAS18001: 2007 HEALTH SYSTEMS; our products have passed SGS, SGS-FR; A2 FR etc.

Q3.Where have your HUABOND aluminum composite panel been export?
A3: Our factory established in 1994; have already exported to USA, Canada, Mexico, Brazil, Chile, Panama, Europe Market, Australia, New Zealand, the Mid-east Countries, Southeast Asia and Africa.

Q4.Do you service OEM?
A4: Yes, OEM accepted. Just give us your logo, we will send some protective film design for your choice. And 300 USD should be paid for the first order, which will be returned back in the 5th containers order.

Q5.What's the available panel size and thickness?
A5: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm 2000mm are recommended.
2. Length: accept customized length, recommend 2440mm, 3050mm, 4050mm, 5000mm.
3. Panel Thickness: 2mm-16mm; recommend 3,4mm.
4. Aluminum thickness:0.10-0.5mm, such as 0.21mm, 0.30mm, 0.40mm, 0.50mm.

Q6. What is the minimum order quantity?
600 square meters for aluminum composite panel.

Q7. What is delivery time?
18-22 days after deposit, except for public holidays.

Q8. How can you guarantee the quality?
We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC .

Q9. How long can I get a quote?
The quotation can be provided not long than 24 hours on condition that we know all detailed requirements.

Q10. Can I get a sample?
Yes we offer free samples. Delivery cost is to be paid by clients.

Q11. Can you provide OEM service?
Yes, we can produce under your own brand name. Logo and design need to be provided so as to make customized brand name.

Q12.Can I buy installation accessories from you?
Yes, we provide all installation accessories. please contact with our professional sales team.
