5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet
Specifications
Brand Name :
Huabond
Model Number :
H-A307
Certification :
SGS, CE & etc.
Place of Origin :
Hunan, China
MOQ :
600 m2
Payment Terms :
T/T, L/C
Delivery Time :
18-22 days
Packaging Details :
wooden pallet
Name :
Digital Printing Aluminum Composite Panel
Surface treatment :
PVDF Coated,Brushed,PE Coated,Anodized,Printing
Panel thickness :
3/4/5/6mm
Application :
outdoor
Width :
1220mm/1250mm/1500mm/1570mm
Length :
2440mm (according to customers' request)
Description

Digital Printing Aluminum Composite Panel

Overview

Place of Origin: Zhejiang, China

Brand Name: HUABOND

Model Number: ACM sign board

Usage: Outdoor

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

Surface Treatment: PE Coated, Printing, PVDF Coated

Panel width: 1220mm,1250mm,1500mm

Panel Length: 2440mm or customize

Panel thickness: 2/3/4/5/6mm

Aluminum skin thickness: 0.04mm~0.50mm

Core material: LDPE (Normal and unbreakable core)

Color: solid color, wood, marble, brushed etc

Supply Ability: 30000 Square Meter/Square Meters per Day sign panel

Package of Aluminum composite panel:
1) LCL(Less than one container)
By wooden pallet or wooden box
2) FCL(Full container)
In bulk or other customized package
Quantity in 20ft: 3mm: 5000-5500SQM 4mm: 4000-4500SQM
Digital Printing Signage Aluminum Composite Material Sign Panel

Port: Shanghai port

Description Test standard Polyester
Thickness of coating Polyester paint>=16um 16um to 18um
Coating flexibility (T-bend) Polyester paint≥3T 3T
Color different ΔE<=2.0(follow color sample) ΔE<=2.0
Pencil hardness >=HB >=2H
Chemical resistance 2%HCI or 2% NaOH test in 24 hours -No change No change
Coating adhesion >=1grade for 10*10mm2 gridding test 1grade
Resist solvent 100times with Dimethy benzene without change No change
Boiling water resistance 2 hours without change No change
Peeling strength/stripping strength Average >=5N/mm of 180oc peel off for panel with 0.21mm alu. skin 5N/mm
Impact test for paint 20KG.cm impact-paint no split for panel No split
Abrasion resistance (L/Mil) NIL NIL
Temperature resistance -40ºC to +80ºC temperature without change of color difference and paint peel off, peeling strength average drop plate <=10% Change of glossy only, no paint
Peel off
Coefficient of linear Thermal Expansion 100ºC temperature difference 2.4mm/m
Detergent resistance (3%) ASTM D2248 No change
Humidity Resistance (3000hrs,100%RH,100°F) ASTM D2247 No change
Salt spray resistance (3000hrs,5% salt) ASTM B117 No change
Resistance to Staining 600h radiate in 800W/M2 in humidity condition, glossiness deviation less grade 2,color difference <=4.0 No change

5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet

Product Description

Brand Name Digital Printing Signage Aluminum Composite Material Sign Panel
Panel size 1) Standard size :1220mmx2440mmx3mm/4mm
Non-standard size: 1250x3200mm, 1550x5800mm
2) Accepted thickness:2-4mm(standard) 5mm 6mm(new and special)
3) Accepted width: 1000mm, 1220mm,1250mm, 1500mm,1550mm
(non-standard width, but available), etc.
4) Accepted Length: According to buyer's requirements (Max:6000mm)
5) Skin aluminum thickness
indoors: 0.15*0.15mm 0.18*0.18mm 0.20*0.20mm
outdoors: 0.5*0.5mm 0.4*0.4mm 0.3*0.3mm 0.25*0.25mm 0.20*0.20mm 0.15*0.15mm
Materials 1) Front: aluminum alloy sheet coated with PVDF or PE.
2) Core: nontoxic low density polyethylene(LDPE)/plastic fireproof materials(B1 OR A2).
3) Back: aluminum coated with polyester service coating or just mill finish.
Quality 1) Under common temperatures and radiation, the surface is no color different.
2) Under natural climate, film coating will be no flake, no rubbles, no vestige and no pulverization.
3) Under common environment, no flake, no rubbles.
4) Products with PVDF coating guarantee 15~20 years.
5) According to international test standard, all the tested items are satisfied with high-class.
Characteristics

1) Light weight, the intensity is high, easy to maintain, cut bend, arch and install.
The panel average weight is 3.5 - 5.5 kg/sqm.

2) Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping.

3) The surface is smooth and flat and easy to maintain, just use neutral cleaner and water can totally renew the panel.

4) The aluminum surface is tough, the core PE panel is flexible, therefore the panel has high impact resistance.
Application 1)Constructional exterior curtain walls;
2)Decorative renovation for storey-added old buildings;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4)Advertisement board, display platforms and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7)Materials used for vehicle and boat.
Certification According to GB/17448-1999 standard and have passed ISO9001, ISO14001, SGS, CE, BV etc.

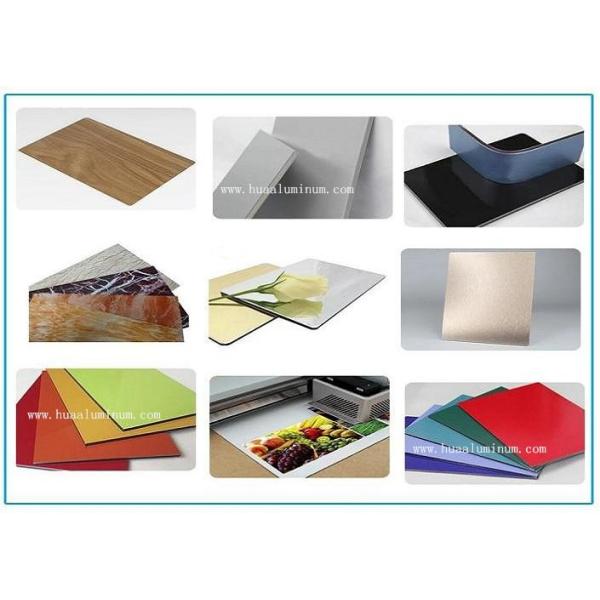

Any color and patterns can be customized.

♦ color

5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet

Regular solid plain color bright silver, pure white, ivory white, silver grey, black, Chinese Red, Reddish red...
Glossy glossy white, glossy red, glossy black, glossy blue...
Pearl glossy pearl white, glossy pearl red, glossy pearl blue, glossy pearl black...
Wood teak, walnut, maple, pine, China fir, wild cherry...
Marble Indian red, Rosso lepanto, imperial red...
Brushed Silver brushed, golden brushed, black brushed, brass brushed...
Mirror Golden mirror, silver mirror, blue mirror...
PET film Laser, anodized, flower and grass, wooden, marble, abstract...
Embossed new available
Colorful paint Six design

5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet

Specifications

Laser aluminum composite panel ACP for kitchen & furniture
the latest/newest design in 2013
various color
BV ISO9001 ISO14001

New Design Laser Series Peacock Feathers Aluminum Composite Panel ACP Panels for Cabinet

Laser and Anodized series ACP professional manufacturer---

Why choose us:

♥ own brand: HUABOND

♥ 4 production lines with lots of raw material stocks

♥ Certificate: ISO9001, ISO14001, BV, ASTM E84 report.

♥ Delivery time: 18-22 working days after getting your deposit.

♥ OEM & ODM service are available.

5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet

Products Details

Size: 1220x2440mm(width*length)

Thickness: 3mm, 4mm

Thickness of Aluminum alloy: 0.04mm, 0.06mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.20mm

Material

Top: aluminum alloy with Pet Film( with laser or other effects)

Core: regular LDPE

Rear: aluminum alloy with primer or just aluminum skin.

Colors: Laser Series, Anodized Series, Wood Grain Series, Marble/Stone/Granite Grain Series, Mirrored Series, Brushed Series, Abstract Series, Zebra Series etc.

Application

Indoors decoration, like Inn/mall/shop wall, cabinet, furniture, cupboard etc.

Characteristics

♣ Uniform and colorful design

♣ Lightweight

♣ Easy to install and maintain

♣ Protecting Environment

♣ Excellent peeling & impact strength

5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet

Package: In Bulk, in wooden pallet or as your choice

MOQ: each design or pattern 1000 sqm, can be different color.

Delivery time: 7-10 working days after getting your deposit.

Payment detail: TT, LC

Structure of ACP:

1. Protective film
A layer of PE plastic tape, to protect the panel surface from scratch or damage. The thickness

and sticky standard are various upon different supplier.
2. Color coating
By function: PE & PVDF.

PE is used for interior, with 10 year life long expectancy;

PVDF coating, with resistance on UV, acid and alkali, is more suitable for exterior usage, with10-15 years guarantee.
By color/pattern: solid color, metallic color, brushed finish, mirror finish, marble pattern, wooden pattern.
3.Aluminum skin
Alloy1100 is standard, other series are optional upon specified order.
4.Polyethylene core
By color: White PE core and Black PE core;
By function: Normal PE core, unbreakable PE core and fire-rated PE core.
5.Bottom coating
Mill finish or color service coating.

Product application:

A. Building exterior curtain walls
B. Decoration and renovation additions for old buildings
C. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
D. Shop door decorations
E. Advertisement board display platforms and signboards
F. Wallboard and ceilings for tunnels

5ft Aluminum Composite Panel Signage , Digital Printing 6mm ACP Sheet

The total thickness 2mm/3mm/4mm/5mm/6mm/7mm/8mm
The Alu. layer thickness

0.08mm/0.1mm/0.12mm/0.15mm/0.2mm/0.3mm/0.4mm

/0.5mm/customized
The thickness of protective film 0.07mm/0.09mm
Width 1000mm/1220mm/1250mm/1500mm/1550mm/1570mm
Length

2440mm/3200mm/40000mm/5000mm

/6000mm/customized
Unit weight 4-6kg/sqm
Coating PE or PVDF coating
MOQ 200PCS.(1220mm*2440mm)Offer free sample
Size/Color Customized
Packaging wooden case or full container
