aluminum composite sign panel sheet

Aluminum Composite Panels for Digital Printing - HUABOND

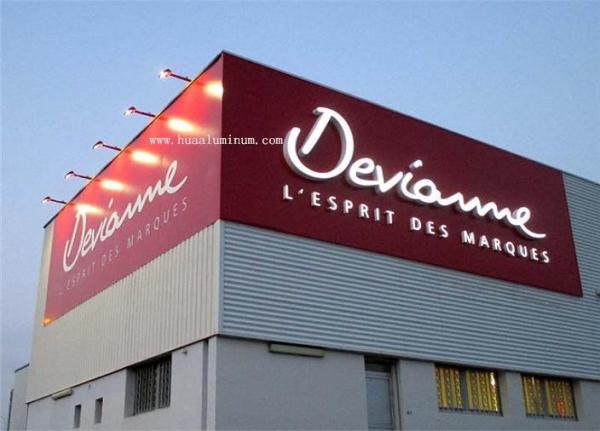

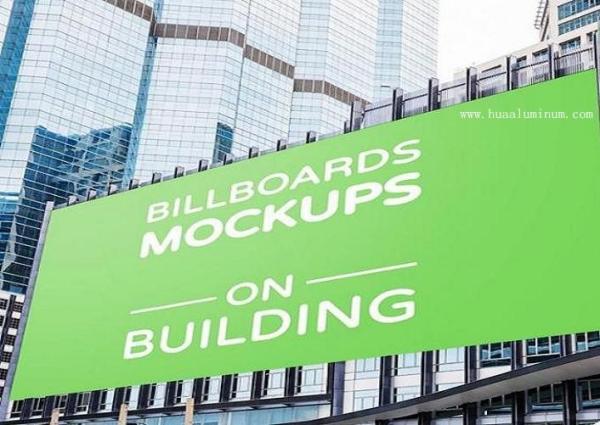

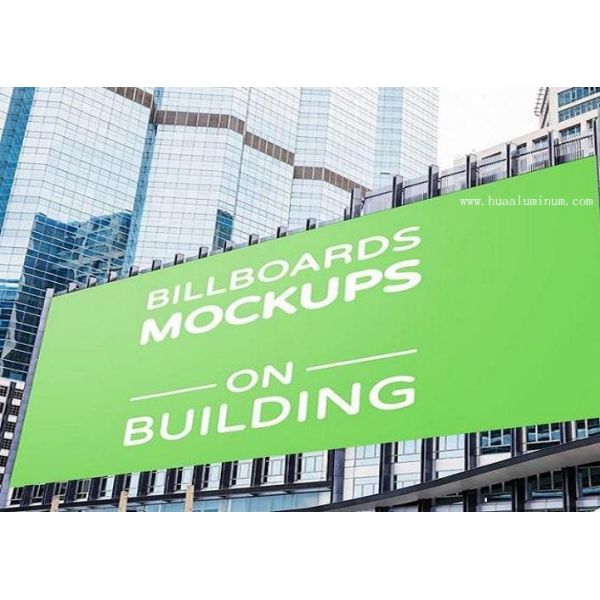

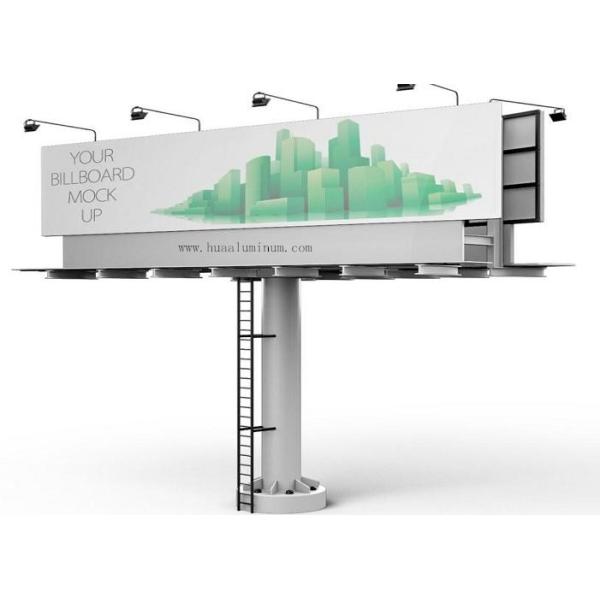

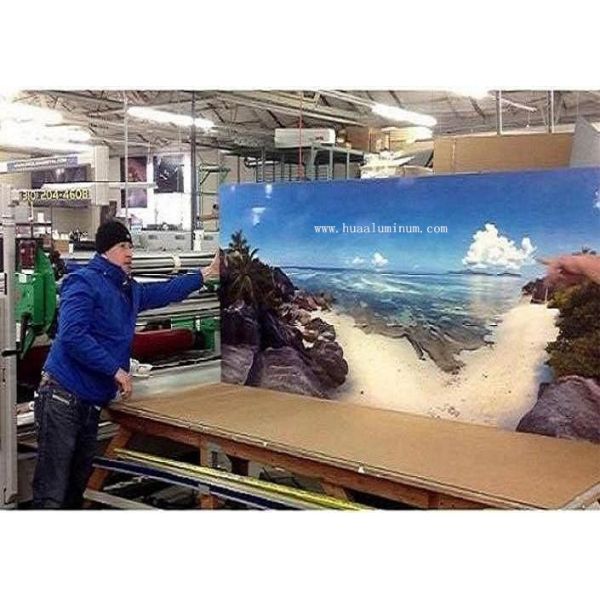

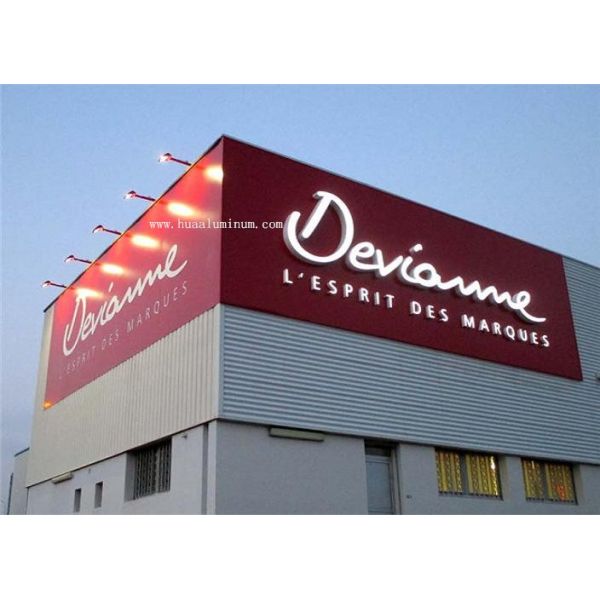

HUABOND aluminum composite panels are widely used for printing, signage, as signboards and for advertising panels.

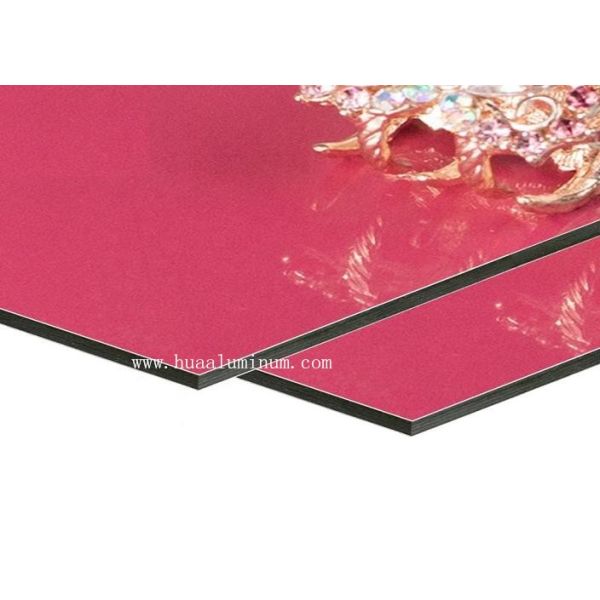

· Composite Panel has a three layer composite structure.

· Aluminum sheet (standard thickness 0.30mm) covers both sides

· The panel is surface coated with PE (polyester) paint

· The central core is low density polyethylene

Quick Details

Brand Name: HUABOND

Coating: PE PVDF

Size: 1220x2440mm

Length: Max 6000mm

Panel thickness: 2/3/4/5/6mm

Width: 1220mm/1250mm/1500mm/1570mm

Aluminum Alloy Grade: 1100 3003 5005

Certification: CE/SGS/ISO9001

Color: Customer's Requirements

Application: Decorative Material

Core material: Non-toxic Polyethylene

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated

Supply Ability: 500000 Square Meter/Square Meters per Month

Packaging Details: Standard Seaworthy Wood Pallets

Place of Origin: Shanghai China

Port: Shanghai port

Features:

HUABOND aluminum composite panel is well known for its main characteristics such as:

· Pre-painted, light weight panel

· Good paintable smooth surface

· High quality color consistency

· Very even, flat surface

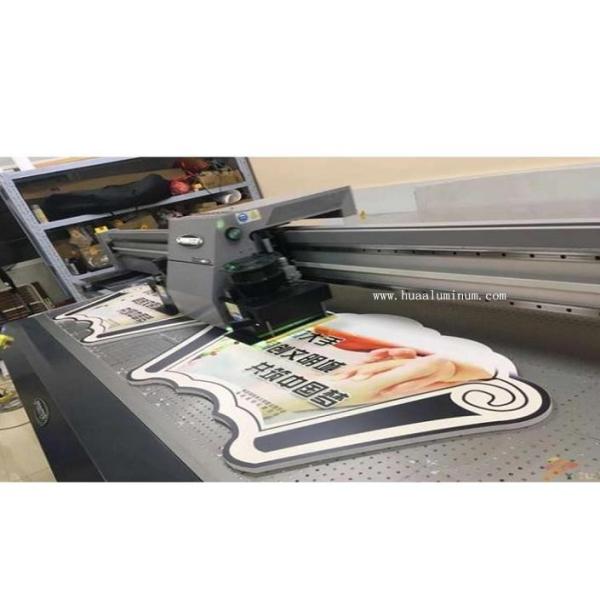

· Surface enables precise printing

· High strength

· Easily fabricated and with good flexibility

· Easily maintained

· Excellent sound insulation

Colors:

· Standard color range as per chart shown below - sample are available

· Various color combinations and finishes available on each side. Check on range and availability of stocked items

· A variety of surface finishes are available

· Surface coated with PE (polyester) paint

· Sign panels can have different colors on each side
