composite sheet

Overview

Size: 1220*2440*5mm

Brand Name: Huabond

Usage: Outdoor, Exterior

Application: Decoration

Standard size: 1220*2440*4mm

Panel thickness: 2mm, 3mm, 4mm, 5mm, 6mm

Aluminum sheet thickness: 0.15mm, 0.21mm, 0.30mm, 0.40mm, 0.50mm

Core: Recycle PE Core/Fireproof PE Core/Unbreakable PE Core

Coating: PE/PVDF/NANO/Anti-scratch

Function: Anti-Static, Antibacterial, Fireproof

Color: Solid / Metallic / Marble / Wooden / Brush / Glossy

Package Type: in wooden pallet or in bulk, 1100 sheets / 20ft

Surface Treatment: Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Wood grain Aluminum Composite Panel

Feature:

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

-various uniform colors, can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

Basic Material

1) front side: aluminum alloy sheet coated with fluorocarbon resin(PVDF) or polyester resin (PE)

2)Core material: nontoxic polyethylene, PE, FR, LDPE

3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)

Applications:

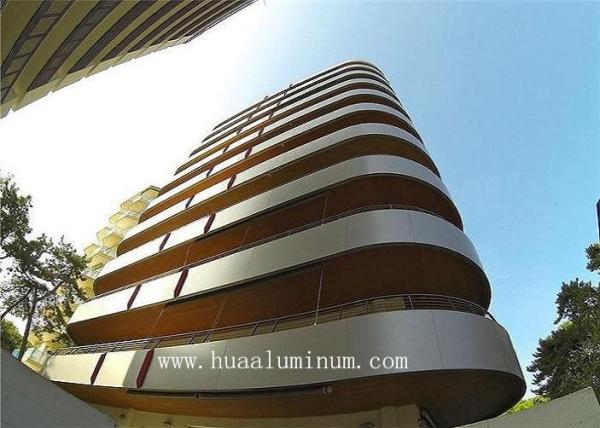

1. Constructional exterior curtain walls;

2.Decorative renovation for storey-added old buildings;

3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

4.Advertisement board, display platforms and signboards;

5. Wallboard and ceilings for tunnels;

6. Raw materials in industrial purpose;

7. Materials used for vehicle and boat.

Properties:

.

Features :

a)Torsion Strength
High resistance to pressure and force exertion; High flexibility; No damages to paint layer when curved; Resistant to corrosion even by sand storm;

b)Easy Processing & Installation
Easy to process due to its light weight; Superior constructibility make it easy to cut, plan edge, bend and form with simple tools;

c)Thermal Resistance
Huabond ACP's have insulating properties that prevent heat to penetrate structures, which translates into energy savings;

d)Fire Resistance
PE plastic core plate is adopted as the flame retarding substance in between difficult-combustible aluminum layers; Fireproof ability is higher than B1 grade standard;

e)Weather Resistance
PVDF coating(KYNAR-500)material provides good weatherability. The surface will not be damaged under any climate; Color will last longer;

f)Even Coat &Various Colors
Huabond ACP's use advanced film technology, making the joining of paint and panel strong and uniform; Diversity of colors can satisfy your different requirements;

g)High Impact Resistance
Innovative composite production of viscoelastic core fused with durable aluminum membranes provides high impact and breakage resistance;Huabond ACP is strong and rigid;

h)Peel Strength
Advanced technology is applied in Huabond ACP's which enhances the key factor, peel strength, to an excellent condition; Planeness of panel has been largely improved;

i)Sound Resistance
The unique non-combustible polyethylene core of Huabond ACP's provides sound reducing properties better than other materials such as wood and steel;

j)Easy to Maintain
Huabond ACP's enjoy the advantage of self-cleaning; Neutral detergent and water are enough to keep it clean;
