Specifications
Brand Name :
Huabond
Model Number :
H-H111
Certification :
CE, ASTM, ISO9001, SGS
Place of Origin :
Hunan, China
MOQ :
200 m2
Delivery Time :
18-22 days

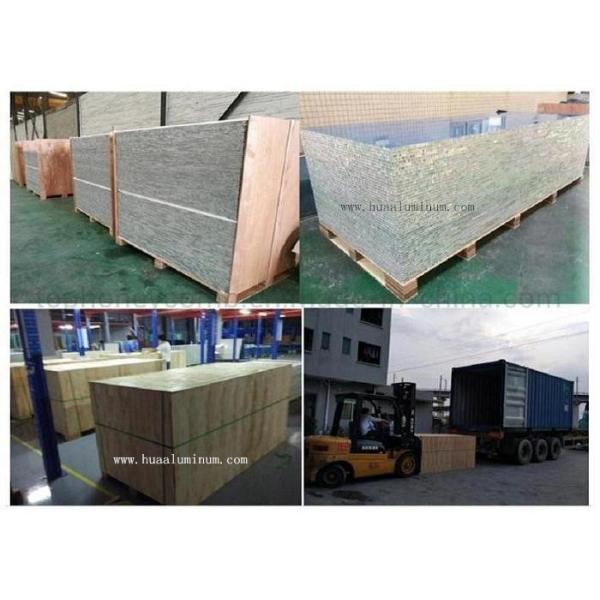

Packaging Details :
wooden package
Surface treatment :
PVDF Coated,PE Coated
Usage :
Outdoor,Indoor
Size :
1220*2440mm,Customized
Material :
Aluminum Alloy Metal
Standard size :
1220*2440mm
Description

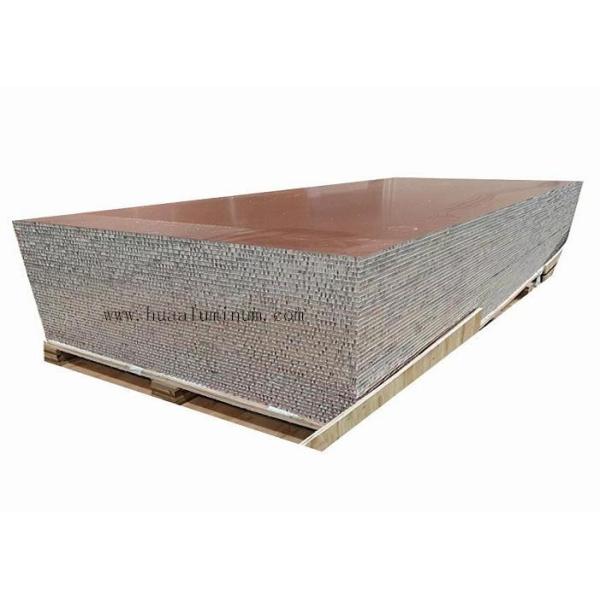

Honeycomb plate

Basic Info.

Trademark: Huabond

Model No.:H-H111

Surface treatment: Polished

Surface: Powder, Mill, Anodize, Polish, Sand Blasting etc.

Transport Package: Wooden Pallet

Thickness: According to Customer Requirement

Specification: 1220*2440mm

Origin: Hunan, China

HS Code: 7606 1259

Fireproof Aluminum Honeycomb Plate , ASTM Aluminum Honeycomb Panels 4x8

Aluminum honeycomb plate for decorate furniture vehicle
Product Details

Product Name Aluminum honeycomb plate for decorate furniture vehicle
Grade 1000 series: 1050, 1060, 1070, 1100, 1200
2000 series: 2024, 2030,
3000 series: 3003, 3005, 3105
4000 series: 4343
5000 series: 5005, 5052, 5054, 5083, 5086, 5182, 5754
6000 series: 6061, 6063, 6005, 6082
8000 series: 8011, 8006 etc.
Surface Anodized, brushed, polished, mill finished, power coated, sand blast...
Executive Standards ASTM B209, JIS H4000-2006, GB/T3190-2008, GB/T3880-2006, etc.
Length as customers' requirement
Width as customers' requirement
Thickness as customers' requirement
Packing Standard export packing
Temper O, H14, H16, H18, H24 etc.
Payment Terms TT, L/C at sight
Application 1) For decorate furniture
2) Vehicle;
3) Advertising board, building, aviation;
Shipment By sea/by train/by air plane
Port Guangzhou port

Fireproof Aluminum Honeycomb Plate , ASTM Aluminum Honeycomb Panels 4x8


Our advantage:
1. Since 1994, we have rich experience in this industry in China;
2. Good reputation in household foil areas;
3. We start our productions from aluminum ingot, so we can control the quality as well;
4. Design ability;
5. Price advantage.
6. Good experience and cooperation with big clients in the world;
7. With Certificate ISO9001-2008;
8. Sample order is acceptable
9. High performance cost ratio;
10.Fast delivery time and fast resolve problem attitude.

Fireproof Aluminum Honeycomb Plate , ASTM Aluminum Honeycomb Panels 4x8

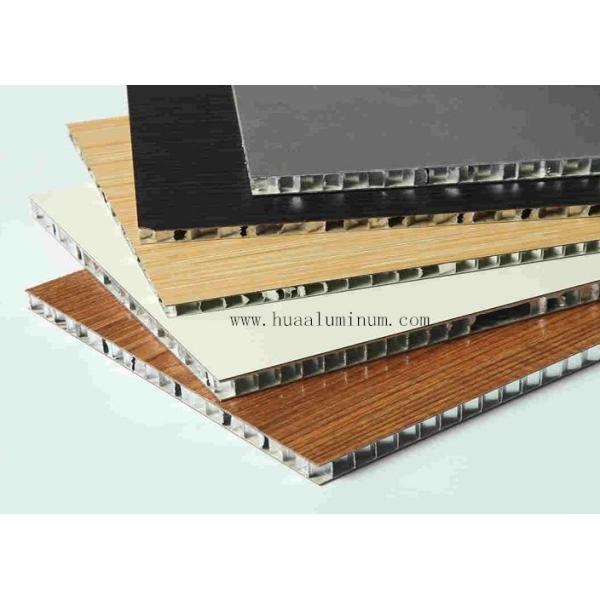

Product Introduction
Huabond honeycomb panels, which is one of the best environmental composite materials with perfect strength, super flatness and excellent sound & heat insulation but with light weight and easy processing. The panels can be manufactured based on your specifications for a various applications, such as wall cladding (exterior & interior), ceiling, flooring, partition, ship hull, elevator, container, door and metro & bus station, etc.

Specification:

Material Aluminum Alloy (3003/5052, etc.)
Regular Size (W*L*T) 1,220*2,440/3,000*6 mm
Max. Size(W*L*T) 2,000*10,000*200 mm
Regular Thickness 10/12/15/20/25 mm
Available Thickness 5-300 mm
Regular Surface Treatment PVDF, PE, Powder Coating, Anodized, etc.
Perforation Yes (customized)
Applications Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc.

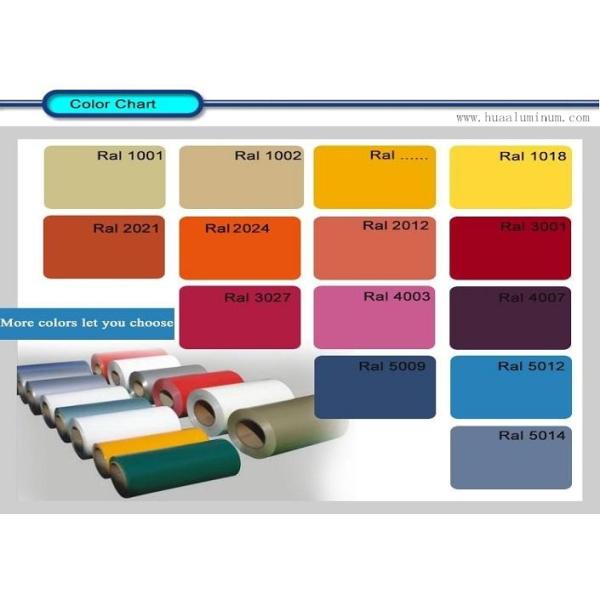

Customerization(MTM) Yes (color, surface texture, size, shape, pattern, etc.)
OEM Available
Suggestion:
1. For interior wall: Surface - PE coating; Thick range - from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm)

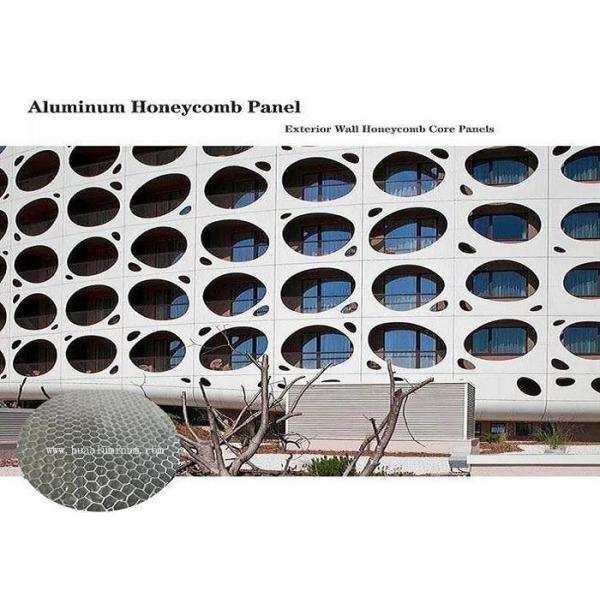

2. For exterior wall: Surface - PVDF coating; Common thick: 15mm, 18mm, 25mm,30mm (top plate: from 1.0mm to 2.0mm; bottom plate: from 0.7mm to 1.0mm)


Standard Installing System for Aluminum Honeycomb Plate (customized installation systems are available):
Type A: standard seaming installing method of outdoor for aluminum honeycomb panel

Fireproof Aluminum Honeycomb Plate , ASTM Aluminum Honeycomb Panels 4x8

2. Technical Data / Test Report

Technical Data Of HONGZAN Honeycomb Panels
Testing sample thickness: 20mm / 25mm ( 1.0+1.0) :
Thickness 20mm 25mm
Front aluminium panel 1.00mm
Back aluminium panel 1.00mm
Weight (kg/m2) 7.4 7.8
Mechanical Property of composite panel and panel
Inertia Moment I (cm4/m) 19.85 31.67
Section Modulus W (cm3/m) 19 24
Rigidity of Composite panel E.I (KN cm2/m) 139000 2217000
Aluminum profile panel AA 5754A(ALMg3)
Modulus of Elasticity (N/mm2) 70000
Tensile Strength of facing panel (N/mm2) Rm ≥ 220
0.2% Yield Stress(N/mm2) Rp0.2 ≥ 130
Extensibility (EN485-2:1194) A50 ≥ 8
Aluminum linear thermal expansion 2.4mm/m when the temperature difference is 100ºC
Surface decoration layer PVDF Spray Baking finish
Glossiness (original Data) 30-40%
Hardness of pencil HB-F

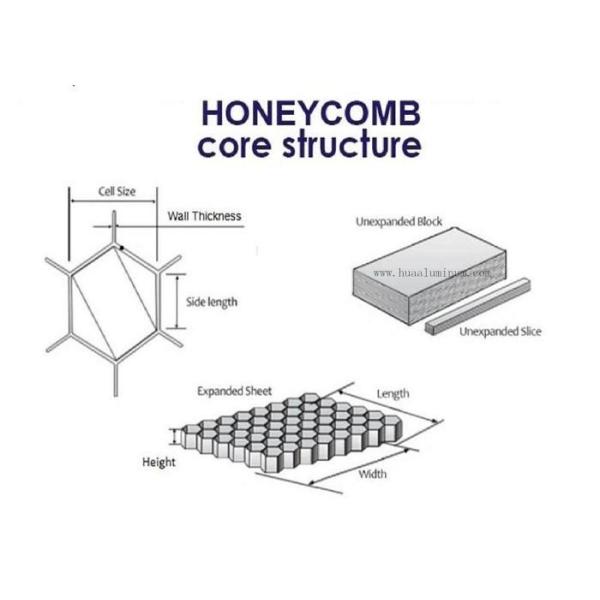

Core of Honeycomb
Size of honeycomb 1/4''(6.3mm)
Density About 80kg/m3
Compression strength (MILL-STD-401) 4N/mm2
Function Of Acoustics
Data of sound absorption As 0.05
Factor of sound insulation According to ISO717-RW 23 25
Function Of Heating
Data of Heat Conduction λ*(w/m2k) 2.25 2.7
Data of Thermal Insulation R(1/m) (m2k/w) 0.0089 0.0093
Data of Heat Transmission U(k) (w/m2k) 5.59 5.575


Fireproof Aluminum Honeycomb Plate , ASTM Aluminum Honeycomb Panels 4x8

3. Factory Show & Production Process :
The production process of Aluminum Honeycomb Panel:
cut the aluminum coil into different sizes---paste protective film---flat pressing---polishing---carving/cutting the corners/bending if necessary---composite with honeycomb core---trimming if necessary---package

Fireproof Aluminum Honeycomb Plate , ASTM Aluminum Honeycomb Panels 4x8
