Specifications
Brand Name :
Huabond
Model Number :
H-H109

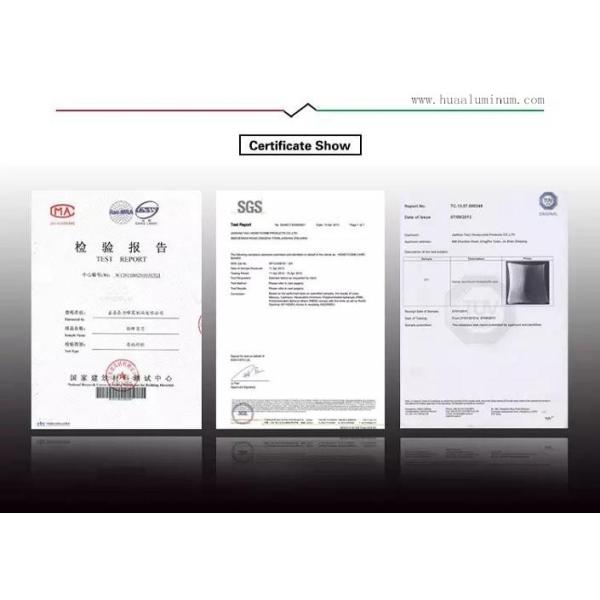

Certification :
ASTM, ISO9001, SGS, CE
Place of Origin :
Hunan, China
MOQ :
200 m2
Payment Terms :
T/T, L/C
Delivery Time :
18-22 days
Packaging Details :
wooden package
Surface treatment :
PVDF Coated,PE Coated
Usage :
Outdoor,Indoor
Color :
black
Size :
Customized
Application :
Exterior and interior curtain wall
Coating :
PVDF,FEVE,PE
Description

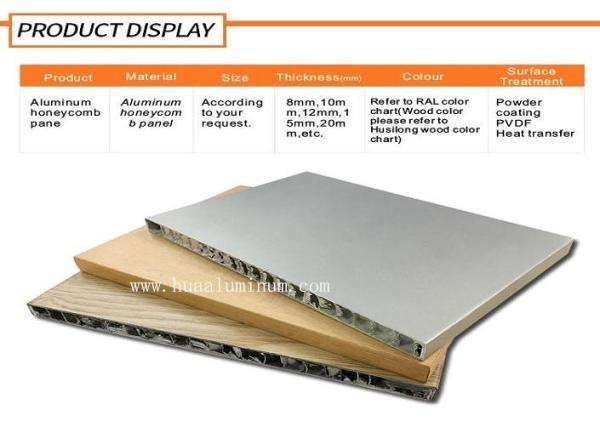

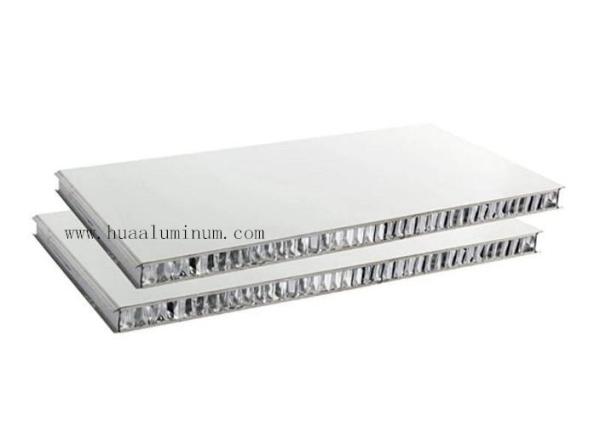

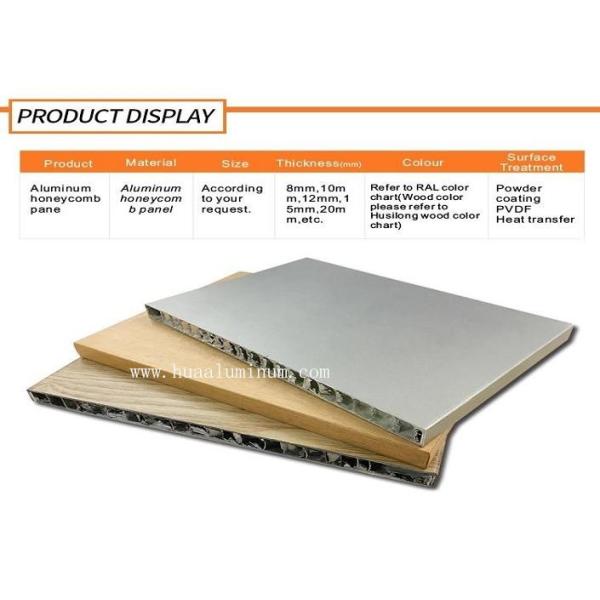

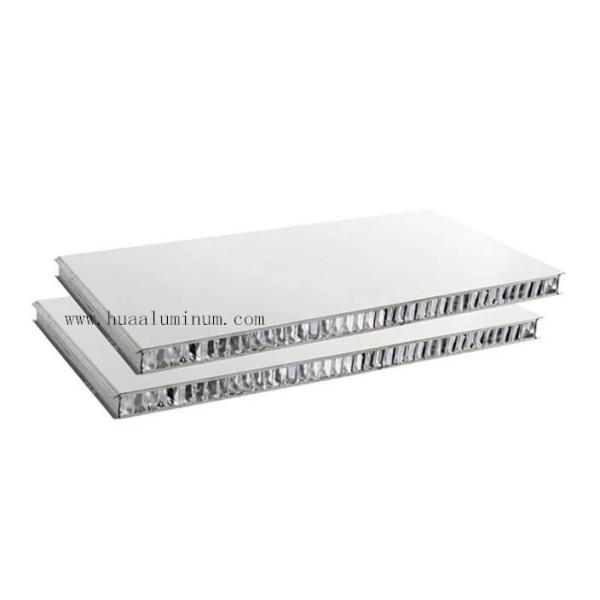

aluminum honeycomb board

Quick Details

Place of Origin: Hunan, China

Brand Name: Huabond

Model Number: H-H109

Pattern: Laminate / HPL / High Pressure Laminate Aluminum Honeycomb Panel

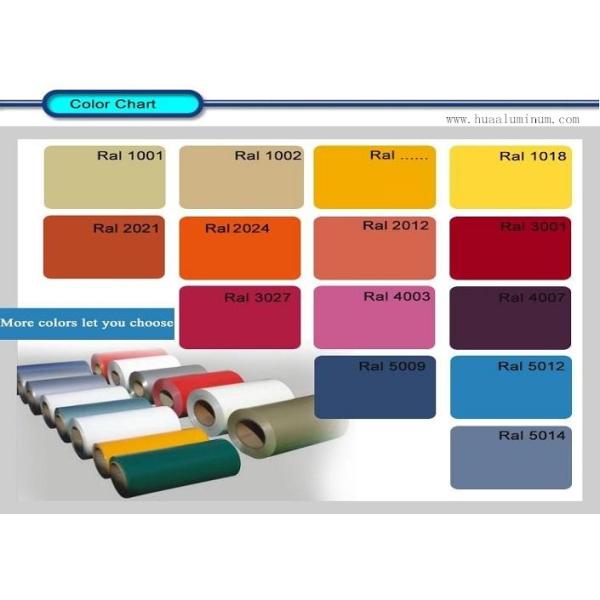

Colors: Solid Color/Metallic Color/ Wood Grain/ Marble Skin Look

Aluminum Alloy: 1100, 3003, 5052

Size: 1220*2440

Aluminum Panel Thickness: 10mm, 15mm, 20mm, 25mm

Adhesion Agent: Environmental Adhesive Film

Features: Fireproof, Heat & Sound Insulation

Application: Ceiling, Wall, Floor, Door, Furniture

Usage: Indoor /Outdoor

Surface Treatment: Furniture

After-sale Service: Onsite Installation, Onsite Training

Project Solution Capability: Solution for projects

Type: Aluminum honeycomb Panel for wall cladding

Function: Anti-Static, Antibacterial, Fireproof, Mould-Proof

Supply Ability: 10000 Square Meter/ Per Day

Packaging Details: Protective Film/Panel, Plywood Pallet or Plywood Case/Bundle

Port: Guangzhou

SGS Black Honeycomb Aluminium Panel , Sound Insulation 20mm Aluminium Plate

SGS Black Honeycomb Aluminium Panel , Sound Insulation 20mm Aluminium Plate

1220x1830mm 1525x1830mm 1830x1830mm 1220x2440mm
1525x3050mm 1830x2440mm 1220x3050mm 1525x3660mm
1830x3660mm 1220x3660mm 1300x3050mm

Other sizes are available on request.

SGS Black Honeycomb Aluminium Panel , Sound Insulation 20mm Aluminium PlateSGS Black Honeycomb Aluminium Panel , Sound Insulation 20mm Aluminium Plate

ALUMINUM HONEYCOMB CORE

SPECIFICATION AND MAXIMUM EXPANDED SIXE

(1) Microcellular Aluminum Honeycomb Core and Maximum Expanded Size

Side Length(mm) a=0.6 a=1.0 a=1.5 a=1.83 a=2 a=2.5 a=3
Cell Size(inch) 1/25 1/16 1/10 1/8 1/8 1/6 1/5
Maximum Expanded Size 300x500 1000x1000 1200x1500 1600x2000 1600x1600 1600x2200 1600x2400
Aluminum Alloy & Foil Thickness 3003
0.02		 3003
0.04,0.03		 3003
0.04,0.03		 3003
0.04,0.06		 3003
0.04,0.03		 3003
0.04,0.03		 3003
0.04,0.06

(2) Regular Aluminum Honeycomb Core and Maximum Expanded Size

Side Length(mm) a=4 a=5 a=6 a=7.5 a=10 a=12 a=15 a=20 a=30
Cell Size(inch) 1/4 1/3 3/8 1/ 2 3/4 4/5 1 11/8 2
Maximum Expanded Size 1600
x
3100		 1600
x
4000		 1600
x
4600		 1600
x
6000		 1600
x
7500		 1600
x
9000		 1600
x
1200		 1600
x
1500		 1600
x
2000
Aluminum Alloy & Foil Thickness 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.06		 3003
0.04,0.08

SGS Black Honeycomb Aluminium Panel , Sound Insulation 20mm Aluminium Plate

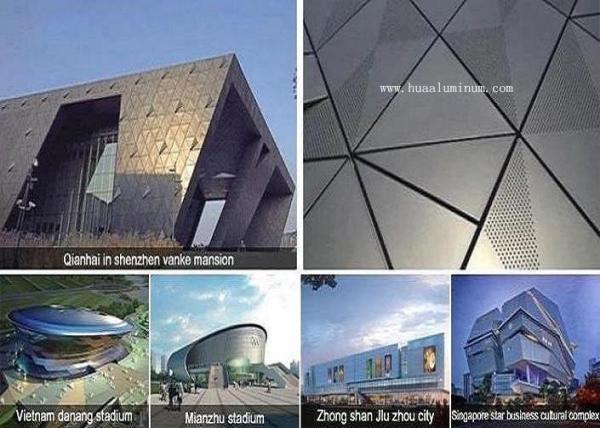

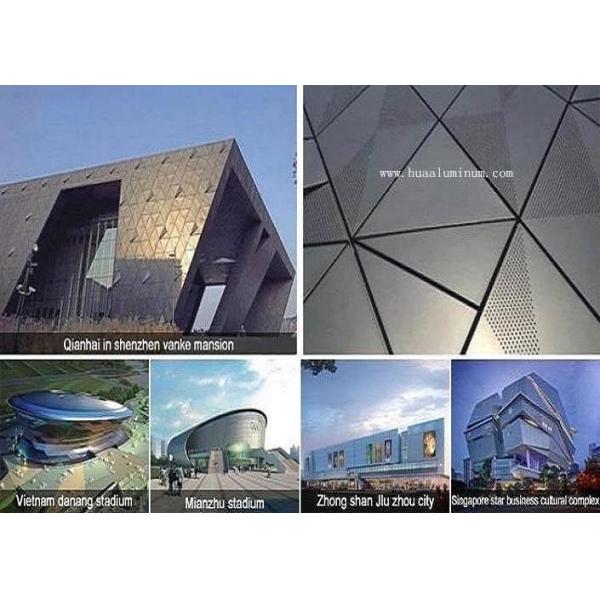

APPLICATION

« Decorative interior partitions

« Bulkheads

« Ceilings

« Cabinet parts

« Aluminum Honeycomb Furniture

« Wall Panel

SGS Black Honeycomb Aluminium Panel , Sound Insulation 20mm Aluminium Plate
