composite panel roof

Overview

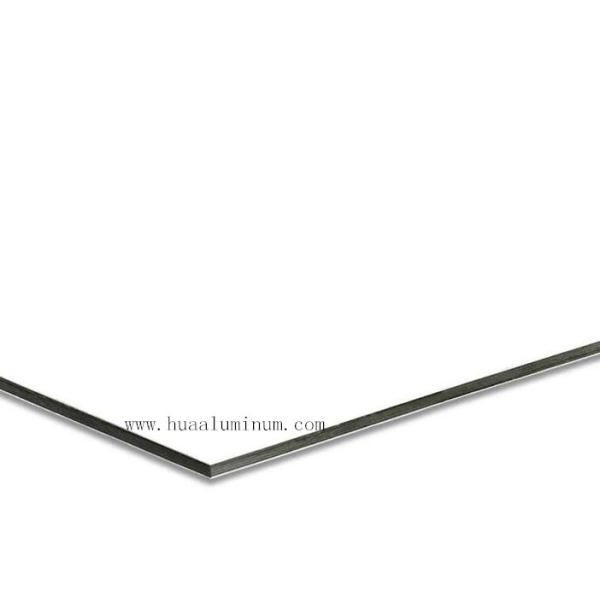

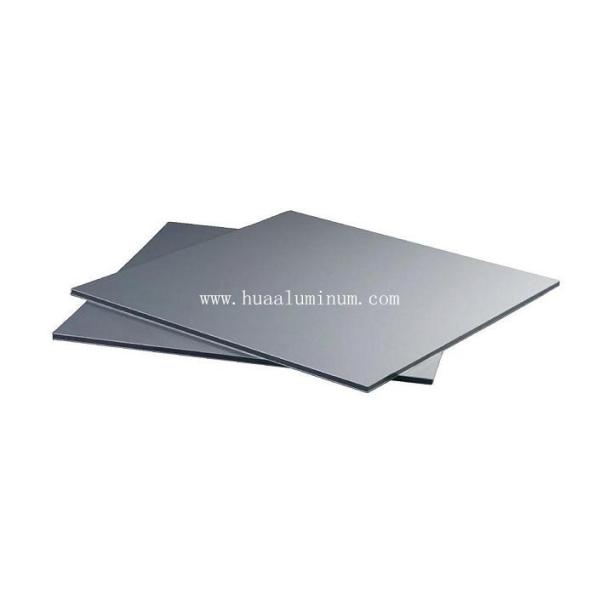

1) Material:

A) Front: aluminum alloy sheet coated fluorocarbon resin (PVDF) with Nano lacquer

B) Core: nontoxic low density polyethylene

C) Back: aluminum alloy sheet coated with polyester resin painting

D) Surface coating thickness: 32μ±1μ

E) Aluminum alloy: 3003 H24

F) Sheet thickness: 0.3mm, 0.4mm, 0.5mm

2) Dimensions:

A) Thickness: 3mm,4mm,6mm,8mm,10mm

B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)

C) Length: 2440mm, 3050mm, 3200mm( max:6000mm)

D) Weight: 5.5kg/sqm based on 0.5/4mm thickness

E) Standard size:1220*2440mm

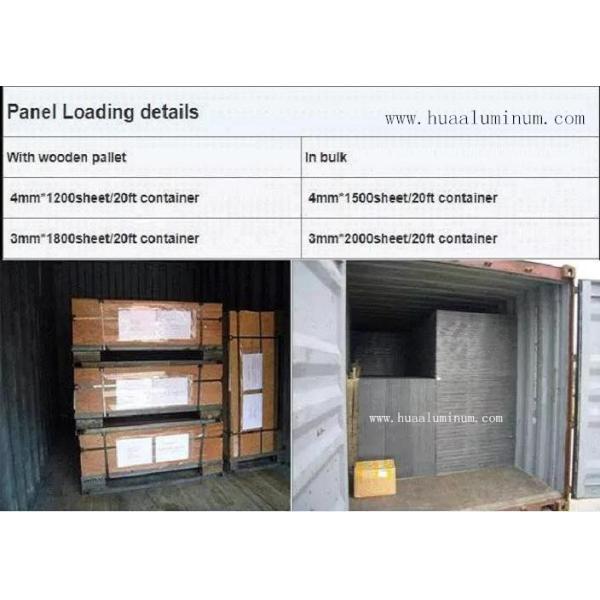

F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm

G) Non-standard size are available according to requirement

3 ) Standard:

A) West Europe standard (Germany DIN Standard);

B) The EAST Europe standard (Russian standard);

C) The common wealth standard (U.K BS standard);

D) The North America ASTM standard;

4) HUABOND® ACP Physical Properties for Panel:

Specifications:

Panel thickness:2mm-18mm

Aluminum thickness:0.25mm-0.5mm

Width: upon request ,max up to 2000mm

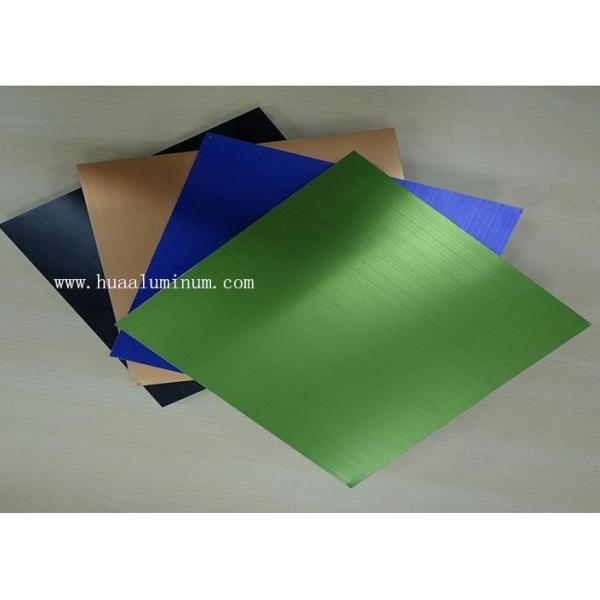

Length: upon request, max up to 11500mm Colors: more than 40 colors to choose, and RAL, PANTON, Non-standard color is available according to customers' request.

Details:
1)Second Name: HUABOND aluminum composite panel ACP / exterior building decorations walls panels
2)Aluminum Source: South West Aluminum Factory
3) Painting Source: PPG&BECKER
4)PE core Material: Non-toxic and low-density Polyethylene
5) Payment Term: TT, LC at sight and D/P
6)Production Capability: 250000SQM/Month
7)More Service: OEM, Samples free(samples will be sent in one day time )
8)Feature Super peeling strength/ Good temperature adaptability/ Excellent performance of fireproof/ Weather proof/ Quickly installed/ Excellent self-cleaning character

Applications:

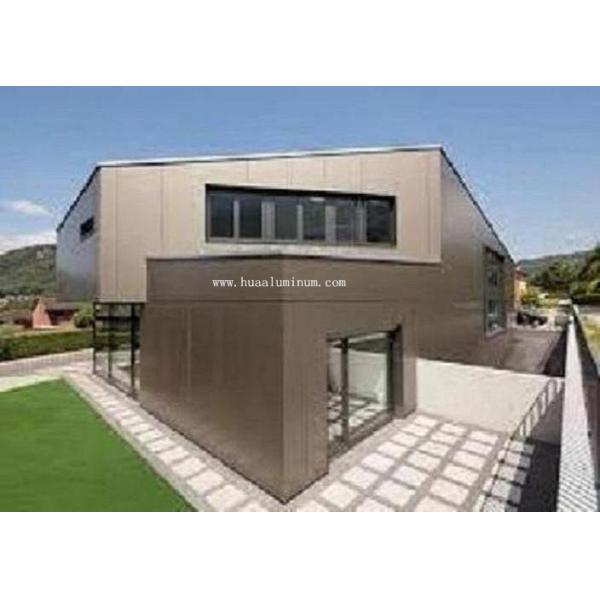

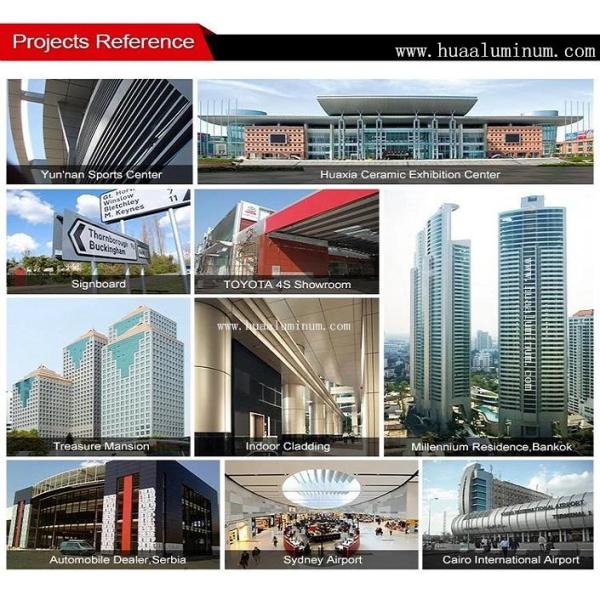

1) Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments;
2) Decorative renovation for storey-added old buildings, facades, roofing;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway;
4) Advertisement board, display platforms, billboards and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7) Material used for vehicle bodies, yachts and boat
