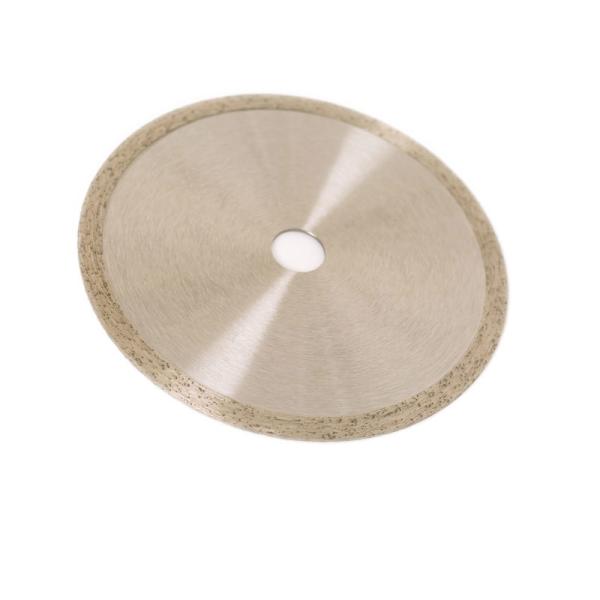

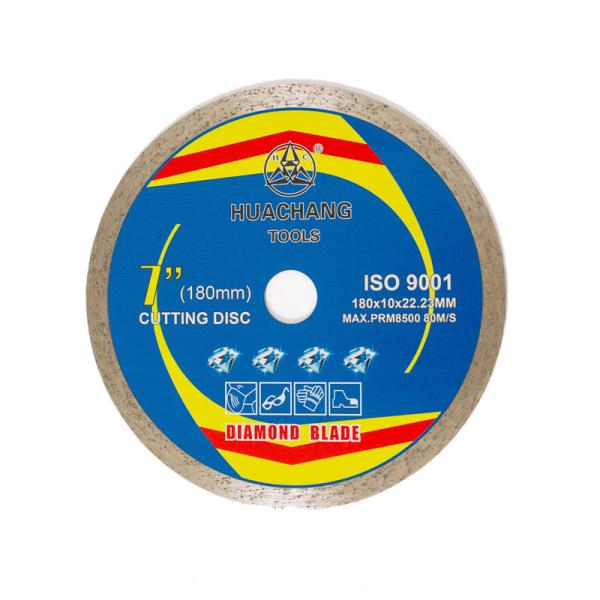

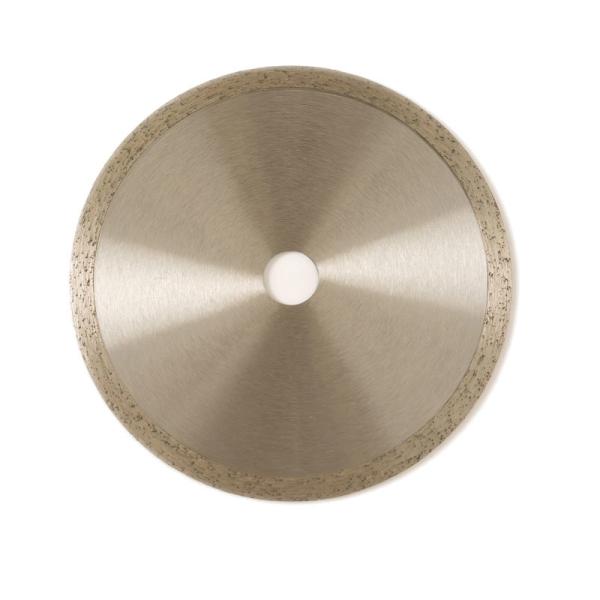

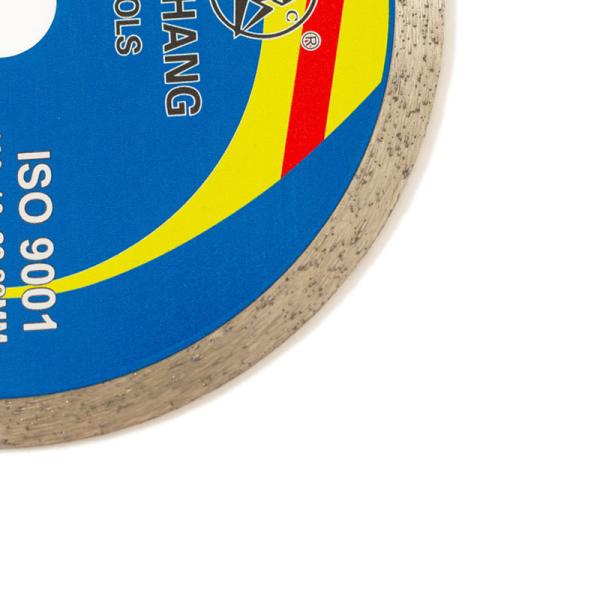

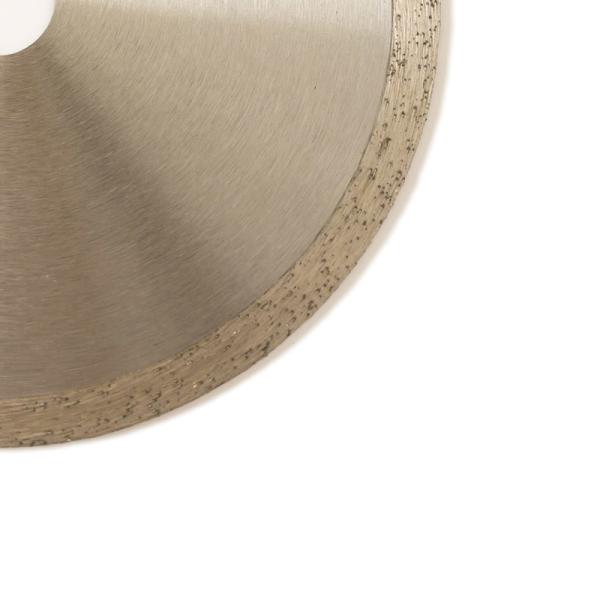

7inch '180×1.6/2.2×10×22.23mm Hot Press Diamond Tile Saw Blades For General Purpose ,Ceramic , Marble And Concrete
1.Tipped on the carbide material with diamond called PCD (polycrystalline Diamond), circular saw blade is widely usde for its long products life. The product's life is 30 to 120 times as long as the one of the ordinary TCT Circular Saw Blades.The merit of long life cycle make it possible to achieve high productivity and to reduce overheat cost in many work places like wooden floor, furniture, and other wooodworking factories. The PCD Circular Saw Blades are specially designed as Fiber Cement cutting blades that suitable for cutting fiber cement products, and also suitable for cutting plastic material in general, such as plexiglass, solid surface and PVC etc...
2.Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.
3.Thin kerf blade produces less dust than continuous rim blades.
Quick Details | |
item | diamond saw blade |
Product Name | hot-pressed 180mm sintered diamond blade |
Applica ion | ceramic ,tile,granite,marble, concrete and brick |
Material | Diamond Segment &65Mn Steel Body |
Finishing: | Painted&Polished |
SIZE | 180×1.6/2.2×10×22.23mm |
Advantage: | Imporved efficiency,cutting life and operator safety |
Quality Grade: | Hot Press Sintered Blade |
Color | Black/Bluer/Red/Purple/Green/Golden/Yellow |
Process Type | Hot Press |
Place of Origin | Jiangsu China |
BrandName | HUA CHANG |
MOQ | 500 Pieces |
OEM | Accpted |
Package | Inner Box+Outer Carton |
Certification | OSA,MPA ,ISO9001:2008,BV |
Quality standard | Europe EN 13236 Standard |
Main Market | Europe+America+France |
other more sizes
SIZE(MM) | OUTER DIAMETER | ARBOR SIZE | ||
INCHES | METRIC(MM) | INCHES | METRIC(MM) | |
105×1.2/1.8×10×20 | 4" | 105 | 20 | |
110×1.2/1.8×10×20 | 4" | 110 | 20 | |
115×1.2/1.8×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
125×1.2/1.8×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
150×1.4/2.0×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
180×1.6/2.2×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
200×1.6/2.2×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
230×1.8/2.6×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
400×2.6/3.4×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
