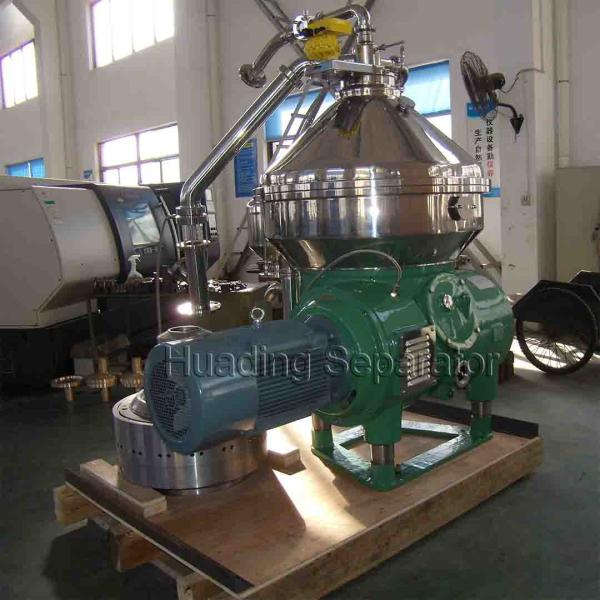

Big Yield 90KW Self Cleaning Separator 440V Disk Stack Centrifuge
Big Yield 90KW Self Cleaning Separator 440V Disk Stack Centrifuge
Big Yield 90KW Self Cleaning Separator 440V Disk Stack Centrifuge
Big Yield 90KW Self Cleaning Separator 440V Disk Stack Centrifuge
Specifications
Brand Name :
HUADING
Model Number :
DHZYS
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
USD20,000-USD200,000 per set
Payment Terms :
L/C, T/T
Delivery Time :
60 working days
Packaging Details :
fumigation wooden case
Machine type :
Vertical
Operation :
Automatic
Capacity :
200-200,000L/H
Application :
Solid liquid liquid
Driving type :
Gear
Color :
Green, white, red
Description

Big yield automatic produce disc separator for vegetable oil refining

Separation and refining technology for edible oil

Vegetable seeds contain a lot of oil, such as soybeans, sunflowers, peanuts, etc. are common oil crops. Most of the world’s production processes are hot pressing. Oilseeds are first squeezed in a screw press. The pressed oil contains a lot of solid components. In order to initially clarify the pressed oil, it is first separated by a decanter centrifuge. In order to meet the edible standard, the vegetable oil needs to be degummed and desoaped. After the reaction, the colloid and soap are separated by a 3-phase disc separator to obtain high-quality, high-purity oil.

Product description

Huading DHZYS series disc separator is designed for edible oil degumming, deacidification and washing process. The machine adopts one inlet pipe, two outlet pipes and one solid outlet discharge port. After the oil reaction, the reacted oil is fed into the separator and rotating in the separator bowl, the solid imprities, the soap and the pure oil form a two-layer separation interface. The solid is discharged through the discharge port in the middle of the separator, the soap and the oil are discharged through the outlet pipes on th upper part of the disc speparator. The whole separation process is continuous.

Application

-sunflower oil

-soybean oil

-peanut oil

-corn oil

-coconut oil

-rice bran oil

-sesame oil

-rapeseed oil

-cottonseed oil

-linseed oil

......

Common models

Model Discharge type Capacity/TPD Weight/KG
DHZYS270 Self-cleaning 10-15 700
DHZYS380 Self-cleaning 20-40 1100
DHZYS430 Self-cleaning 30-50 1200
DHZYS470 Self-cleaning 70-150 1700
DHZYS500 Self-cleaning 150-200 2000
DHZYS550 Self-cleaning 300-400 2200
DHZYS700 Self-cleaning 500-600 3200
DHZYS810 Self-cleaning 800-1200 4000

Main parameters

Voltage 220-440V
Power 4-90KW
HMI SIEMENS
PLC SIEMENS
Frequency converter ABB or CUMARK
Motor

ABB or WANNAN

Separation effect

Big Yield 90KW Self Cleaning Separator 440V Disk Stack CentrifugeBig Yield 90KW Self Cleaning Separator 440V Disk Stack Centrifuge
