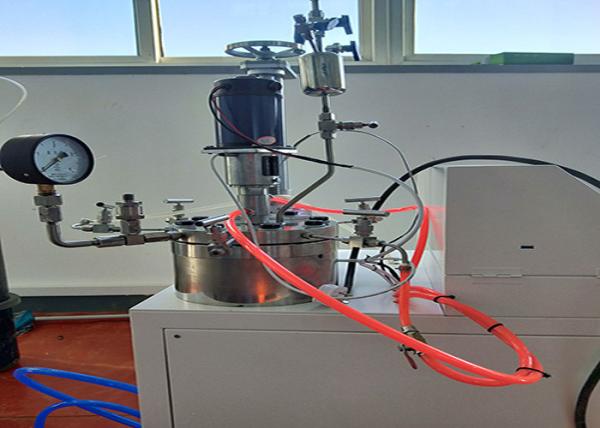

Microwave And Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor
Microwave And Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor
Microwave And Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor
Microwave And Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor
Microwave And Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor
Microwave And Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor
Specifications
Brand Name :
Huaemw
Model Number :
HY-GF1501
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave & Electric
Voltage :
380V±10V
Working Temperature :
≤200°C
Microwave Leakage Prevention :
<2mW/cm2
Working Pressure :
3MPa
Heating Space(Volume) :
1L
Description

Microwave & Electric Heating Reactor HY-GF1501 3MPa High Pressure Reactor

  • Product Features

The Microwave & Electric Mixed Heating Reactor HY-GF1501 is high pressure heating reactor with complex heating source, ie. microwave vs electric.

The HY-GF1501 reactor has been designed for users who need high operating pressure with a working pressure up to 3MPa at temperature no more than 200°C.

HY-GF1501 provides not only a high pressure and moderate temperature system, but also a proper heating space of 1 liter.

  • Applications

HY-GF1501 is especially suitable for high pressure reaction as well as process of synthesis, crystallization, catalysis and polymerization etc.

  • Technical Parameters
Parameters HY-GF1501
Power Voltage 380±10V, 50Hz
Rated Power 3KW
Electrical Heating Power 3KW
Microwave System Microwave Output Power 0.10~1.40KW continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity <2mW/cm2
Thermal Insulation System Temperature ≤200°C
Heating Space(Volume) 1L
Atmosphere System Working Pressure 3MPa
Control System Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable, technical parameters, data storage and export, real-time curve data display, dynamic data display
Safety System Magnetron Alarm over temperature alarm,
over-current alarm
Furnace Door Protection furnace door shutdown sensor
StirringSystem Stirring Speed 0~750 r/min
Stirring Power 125W
Overall Dimension Floor Area 0.5m2
