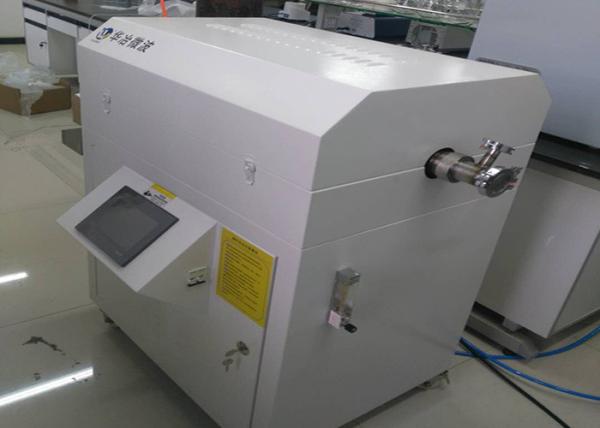

HY-RJ3010 Microwave Pyrolysis Furnace For Pyrolyzing Organic Hazardous Wastes
HY-RJ3010 Microwave Pyrolysis Furnace For Pyrolyzing Organic Hazardous Wastes
Specifications
Brand Name :
Huaemw
Model Number :
HY-RJ3010
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave
Working Temperature :
1150°C
Temperature Control Precision :
±0.1%
Temperature Measurement Method :
thermocouple
Heating Space (D×L) :
Φ50×350mm
warranty :
1 year
Description

HY-RJ3010 Microwave Pyrolysis Furnace For Pyrolyzing Organic Hazardous Wastes

  • Product Features​

Pyrolysis is the thermal decomposition process of materials at high temperature with an inert atmosphere.

HY-RJ3010 is microwave pyrolysis furnacee capable of continuous flow at variable power (5 kW).

Besides, the special crucibles and the innovative insulation structure ensure that there is no product pollution, while automatic loading and unloading system makes it easy for operation.

  • Applications

HY-RJ3010 allows to heat organic material in absence of oxygen for a wide range of industrial applications like energy or chemicals production, thus is suitble for pyrolyzing materials such as organic waste salt, activated carbon, biomass, coal, rubbish and plastics etc. with high efficiency and continuity.

  • Technical Parameters
Parameters HY-RJ3010
Power Voltage 380V±10V 50Hz
Rated Power 5KW
Microwave
System		 Microwave
Output Power		 0.10~2.80KW
continuously adjustable
Microwave Frequency 2.45GHz
Microwave Leakage Prevention microwave leakage intensity
<2mW/cm2
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Heating Space
(D×L)		 Φ50×350mm
Temperature Control System Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0~1300°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Cooling
System		 High Precision
Cooling-Water Machine		 flow rate of 2m3/h,
rated cooling capacity of 5.2KW
Overall
Dimension		 Furnace Body(L×W×H) ca. 1300×900×2300mm
